9 Adjustments
9.3.1 Advanced Autotuning by Reference
9-22
(3) Advanced Autotuning by Reference Procedure
The following procedure is used for advanced autotuning by reference.
Advanced autotuning by reference is performed from the SigmaWin for Σ-V-SD (MT).
The operating procedure from the SigmaWin for Σ-V-SD (MT) is described here.
1. Confirm that the correct moment of inertia ratio in Pn103 is set by using the advanced
autotuning.
2. In the SigmaWin Σ-V-SD (MT) component main window, click Tuning and then click Tuning.
Click Cancel to return to the SigmaWin Σ-V-SD (MT) component main window without executing tun-
ing.

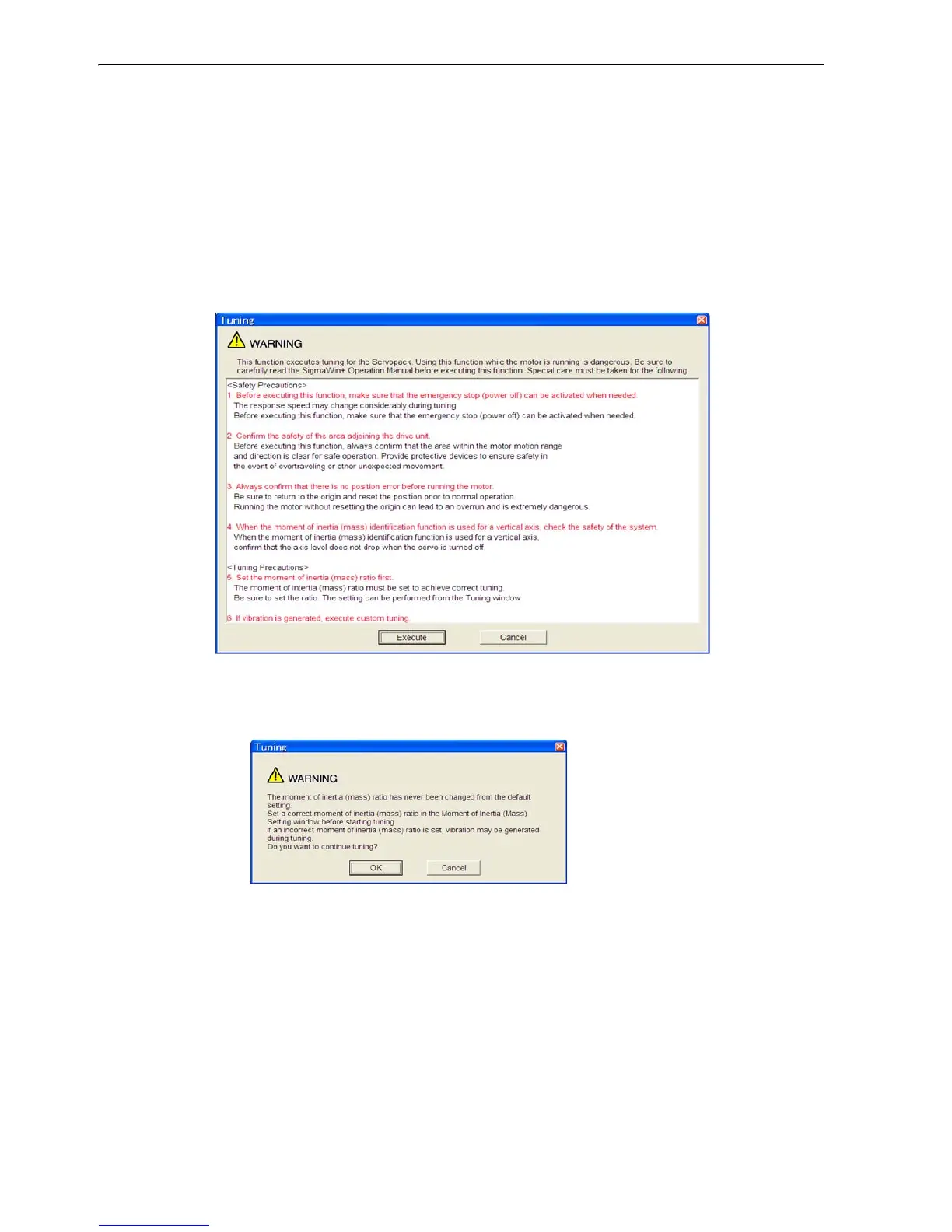

3. Click Execute. The following window appears.
