2 Compatible Devices
2.2.1 Spindle Motor
2-6

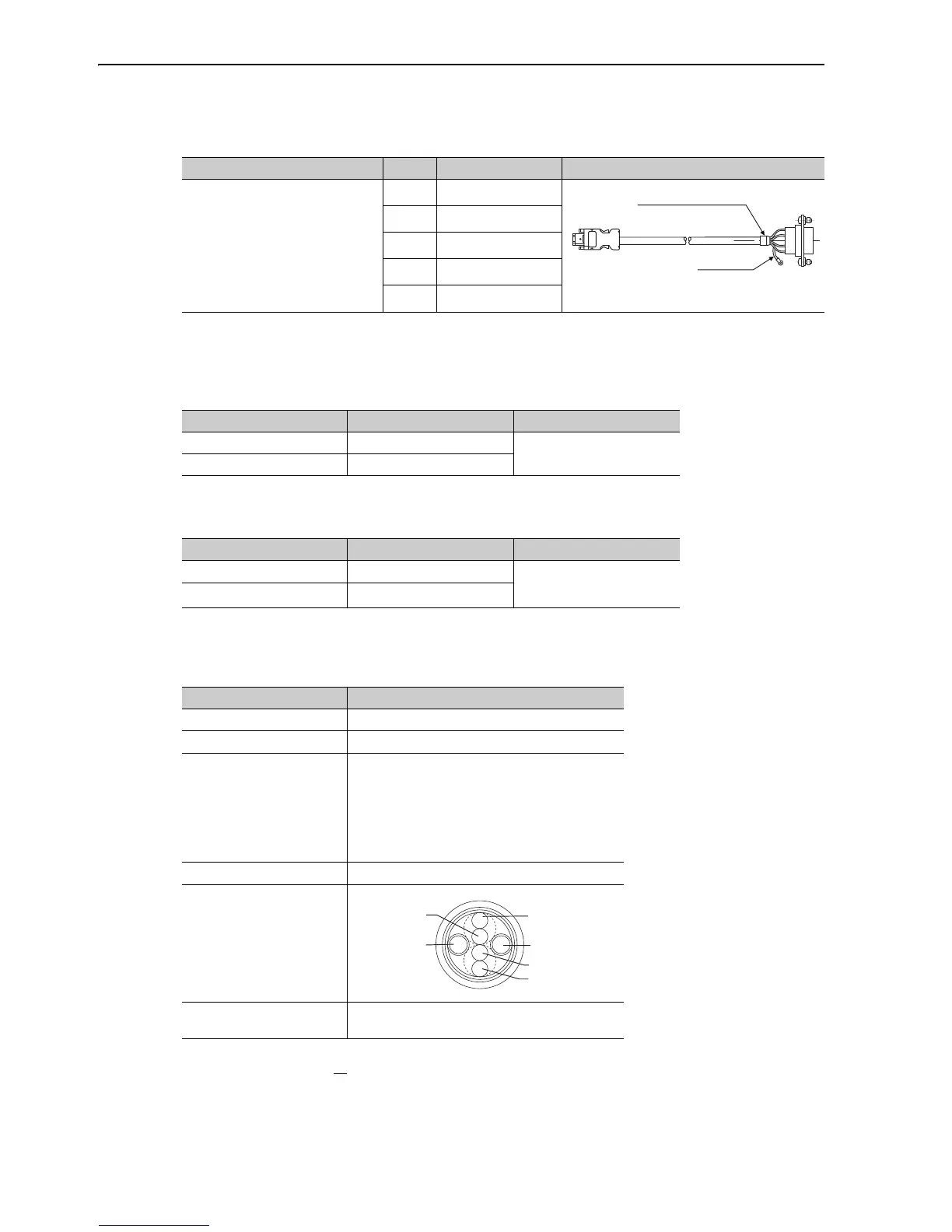

(3) Serial Encoder Cable
Use the following information to select appropriate parts when assembling a serial encoder cable.
Specifications for cable-end connectors to SERVOPACKs
Specifications for cable-end connectors to spindle motors
The cable-end connector to the spindle motor is stored in the motor’s terminal box upon delivery.
∗ The YRS-440 crimping tool and the DEJ-0.3 extraction tool are required. Contact J.T.S. Mfg. Co., Ltd. for more infor-
mation.
Cable specifications
∗ Specify the cable length in of the order number.
Example: JZSP-CMP09-03
-E (3 m)
Name Length Order No. External Appearance
Serial Encoder Cable
for Spindle Motor
3 m JZSP-CJP01-03-E
5 m JZSP-CJP01-05-E
10 m JZSP-CJP01-10-E
15 m JZSP-CJP01-15-E
20 m JZSP-CJP01-20-E
Heat-shrinkable tube
Shield wire
To SERVOPACK To spindle motor
Name Model Manufacturer
Connector 36210-0100PL
Sumitomo 3M Ltd.
Shell 36310-3200-008
Name Model Manufacturer
Connector JEC-9P
J.T.S.Mfg.Co., Ltd.
Electrical Contact
J-SP1140
*
Items Standard Type
Order No. * JZSP-CMP09--E
Max Cable Length 20 m
General Specifications
UL20276 (Rated temperature 80°C)
AWG22 × 2C+AWG24 × 2P
AWG22 (0.33 mm
2
)
Outer diameter of insulating sheath: 1.15 mm dia.
AWG24 (0.20 mm
2
)
Outer diameter of insulating sheath: 1.09 mm dia.
Finished Dimensions 6.5 mm dia.
Internal Configuration and
Lead Color
Available Cable Length
(Yaskawa Standards)
3 m, 5 m, 10 m, 15 m, 20 m
Light blue
Black
Orange
Orange/white
Light blue
/white
Red
To Next Page
