3 Specifications and External Dimensions for Motors
3.2.12 External Dimensions
3-28

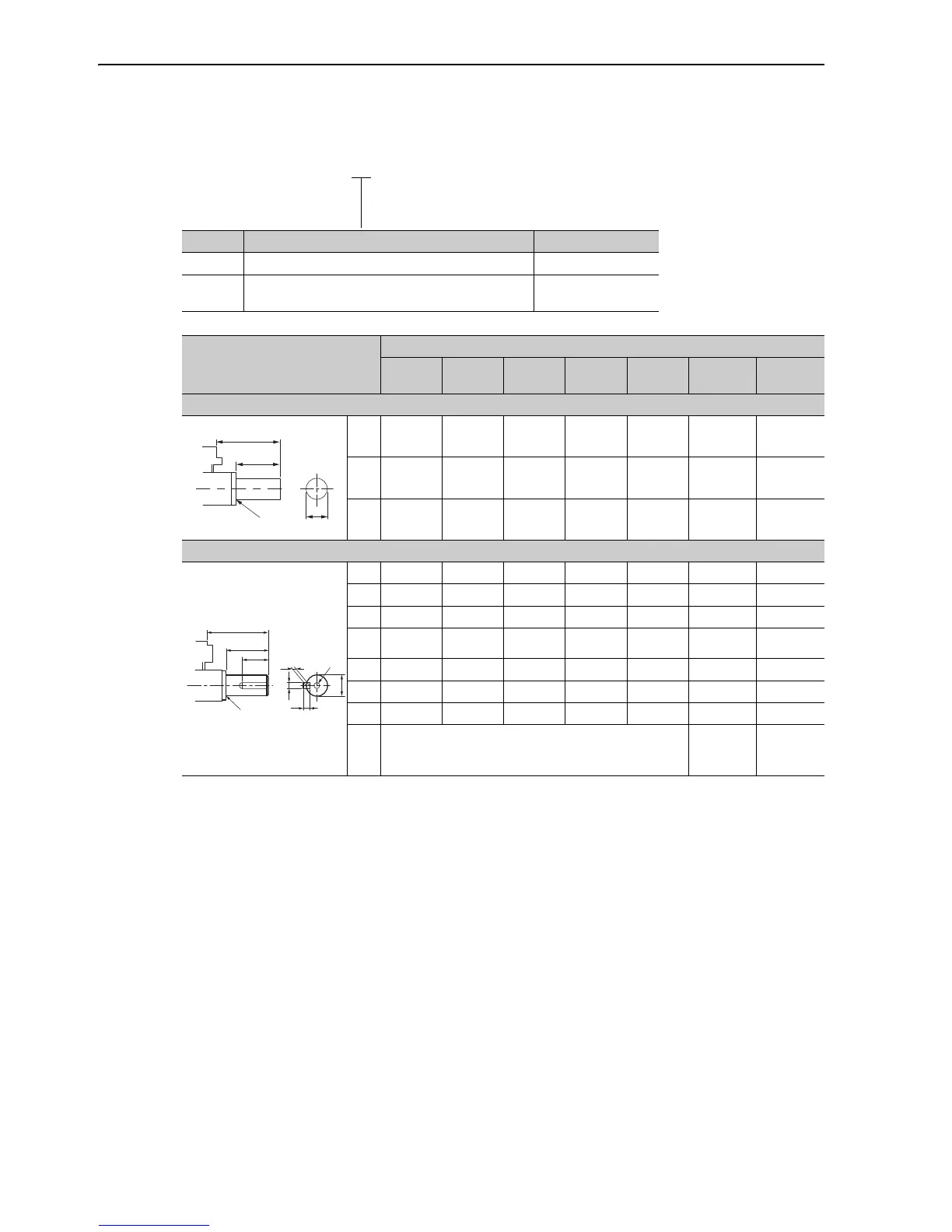

(3) Shaft End Specifications
SGMGV - 
Unit: mm
Code Specifications Remarks
2 Straight without key Standard
6
Straight with key and tap for one location (Key slot is
JIS B1301-1996 fastening type.)
Optional
Shaft Extension
Model SGMGV-
05 09 13 20A 20M
30,
44
55,
75
Code: 2 (Straight without key)
LR 40 58 58 58 58 79 113
Q 30 40 40 40 40 76 110
S
16 19 22 24 24 35 42
Code: 6 (Straight with key and tap)
LR 40 58 58 58 58 79 113
Q 30 40 40 40 40 76 110
QK 20 25 25 32 32 60 90
S
16
19
22 24 24 35 42
W 556881012
T 55677 8 8
U 333.544 5 5
P
M5 screw,
depth 12
M12
screw,
depth 25
M16
screw,
depth 32
LR
Q
R1
φ
S
0
-0.011
0
-0.013
0
-0.013
0
-0.013
0
-0.013
+0.01
0
0
-0.016
LR
Q
QK
U
R1
P
T
W
S dia.
0
-0.011
0
-0.013
0
-0.013
0
-0.013
0
-0.013
+0.01
0
0
-0.016
