Yealink SIP-T42G User Manual

Better Together over Ethernet
153

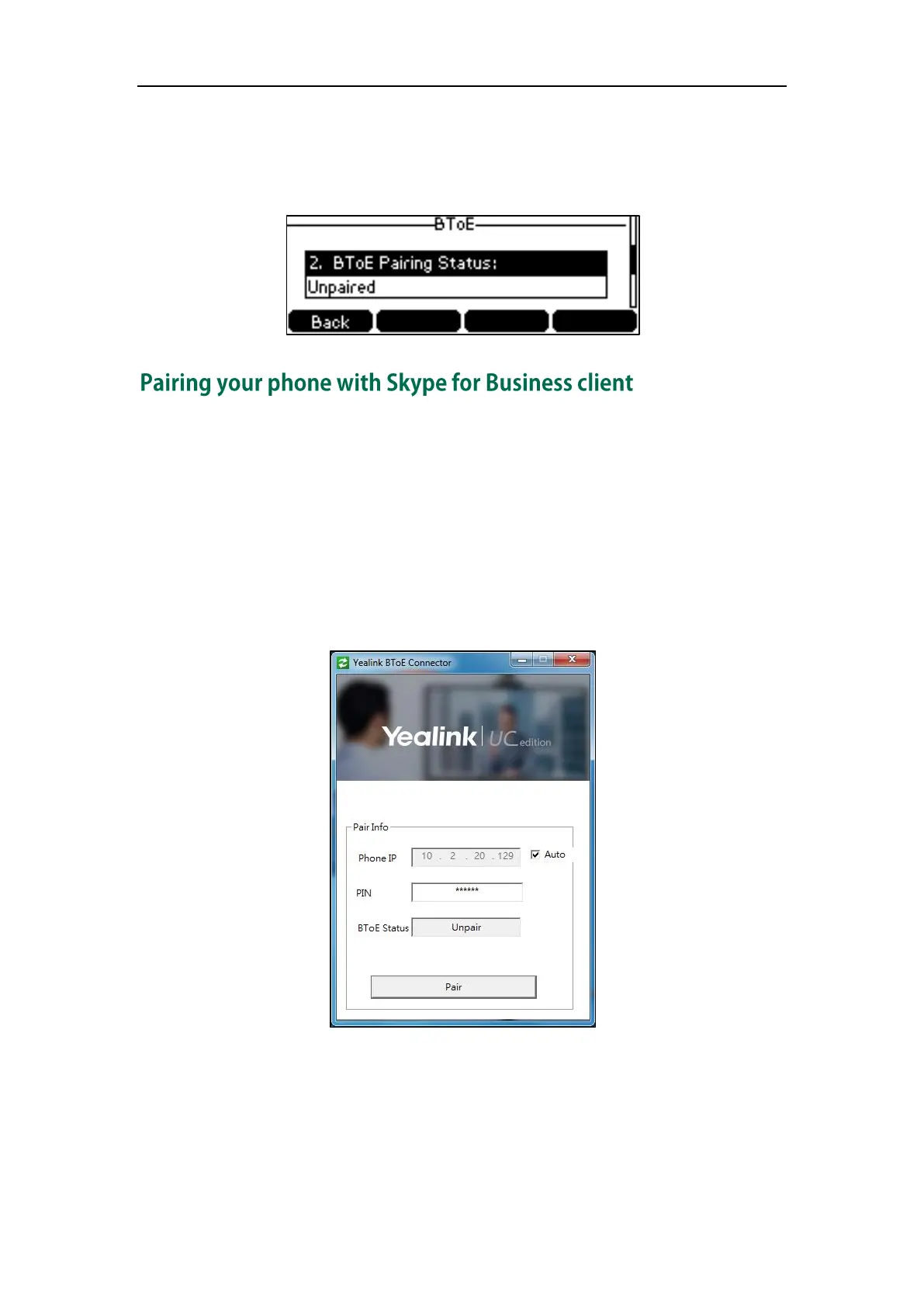

To view the paired status via phone user interface:
1. Press Menu->Settings->Advanced Settings (default password: admin) ->BTOE.
2. View the BToE paired status in the BToE Pairing Status field.
Ensure that the Yealink BToE Connector application is running on your PC. To pair your
phone with your Skype for Business client, do one of the following:
a) If connect your PC to the PC port on IP phone using an Ethernet cable (network of
the PC will be provided by the PC port of the phone).
1. As the checkbox of Auto is checked by default, the IP address of your phone is
automatically filled in the Phone IP field.
2. Enter the BTOE Pairing Pin in the PIN field.
3. Click Pair.
b) If your PC is not connected to the PC port on the phone, do the following:
1. Uncheck the Auto checkbox.
2. Enter the IP address of the phone that you want to pair in the Phone IP field.
3. Enter the BTOE Pairing Pin in the PIN field.

Yealink SIP-T42G Specifications

General

Power requirements	100-240V, DC 5V
Power over Ethernet (PoE)	Yes
Touchscreen	-
Display diagonal	2.7 \
Display resolution	192 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Voice codecs	G.711, G.723, G.729A, G.729B
Bluetooth	No
RJ-9 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Storage temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black, Grey
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	175 mm
Width	212 mm
Height	189 mm
