Yealink W52P Full User Guide

© Gamma 2014. All rights reserved. Confidential.

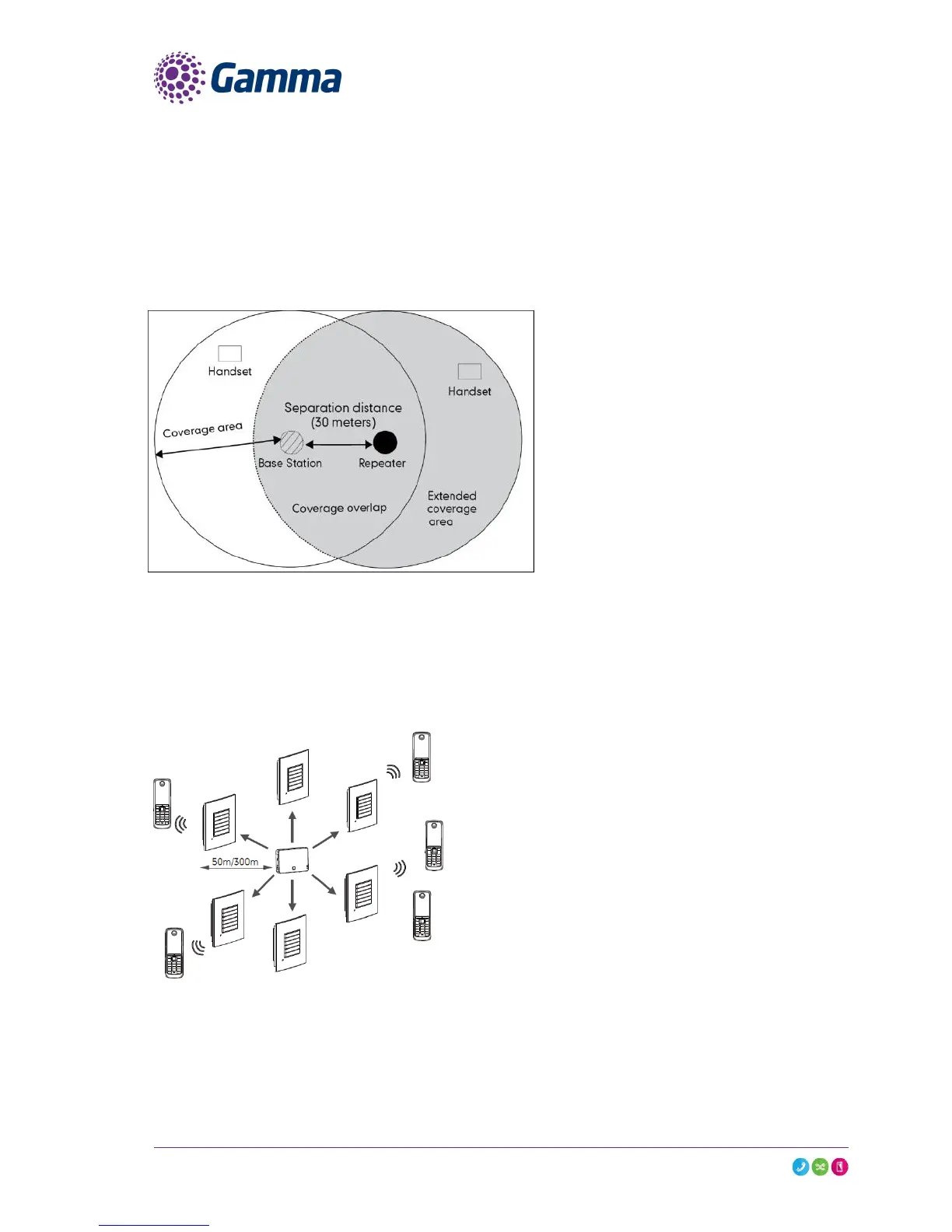

Single Repeater
In this case an extended coverage range (30m) is required. You can install a repeater within the base
station coverage area. The separation distance between the base station and repeater is 30m. The base
will hand over calls to the repeaters as the user moves from the base station coverage area into the
extended coverage area. If you want to extend the coverage range, you can extend the separation distance
between the base station and repeater.
Multiple Repeaters
Up to 6 repeaters can be registered to one base station to extend available reception range for all registered
handsets. All repeaters must be installed within the base station coverage area (up to 300m in unobstructed
outdoor areas and up to 50m inside buildings), as shown in the figure below. It is not possible to install the
repeaters in series or “daisy-chain”.
The maximum number of handsets that can be registered to your base station is not affected by the
repeater. The repeater can be used to extend the coverage range in all directions, allowing several floors
to be covered.

Yealink W52P Specifications

General

Caller ID	Yes
Lines quantity	- lines
Answering machine	No
Phonebook capacity	500 entries
Handset type	Wireless handset
Product type	IP Phone
Product color	Black
Maximum indoor range	50 m
Maximum outdoor range	300 m
Voice codecs	G.711, G.723, G.726, iLBC
Number of melodies	9
Display diagonal	1.8 \
Display resolution	128 x 160 pixels
Headset connectivity	2.5 mm
Ethernet LAN (RJ-45) ports	1
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Standby time	100 h
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	108 mm
Width	153 mm
Height	45 mm
Height (max)	50 mm
Height (min)	144 mm
