6.4 Operation Status Registers
Operation status registers report the operation status of the instrument. The operation
condition registers indicate the instrument’s condition. A change in an operation condition
register is latched into the operation event register. The user can refer to the operation
event register to view changes in the operation status. The summary information of the
instrument event register is set to the OPS bit of the status byte register. In this case,
only statuses corresponding to bits specified as “1” in the operation enable register are
included in the summary information.
Structure

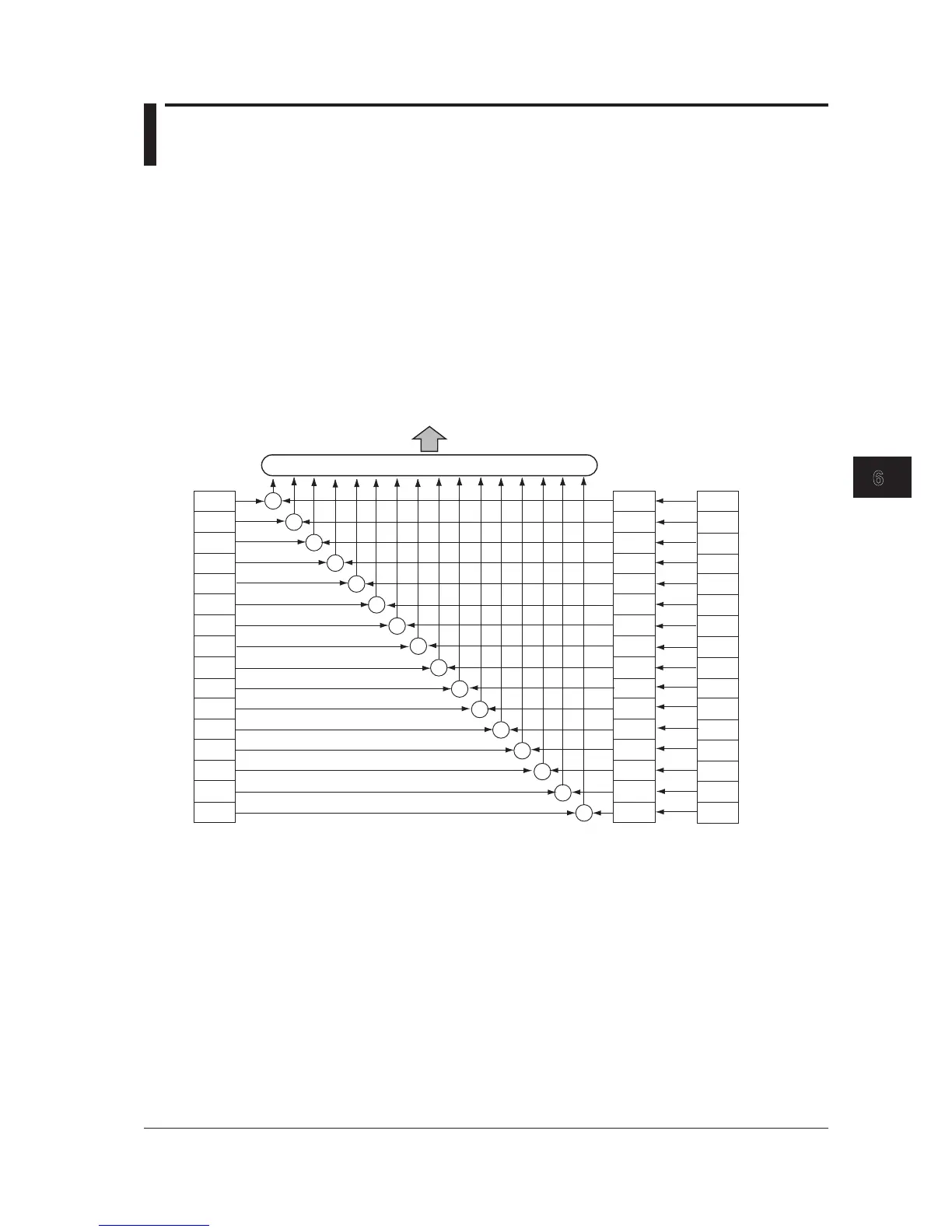

The structure of the operation status register is shown below.
Structure of the Operation Status Register
OR
&
&
&
&
&
&
&
&
OPS Bit of the Status Byte Register
not used
not used
not used
not used
not used
not used
not used
not used
not used
not used
not used
Auto Sweep
Cal/Alignment
Copy/File
Program
Sweep
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
bit 15
bit 14
bit 13
bit 12
bit 11
bit 10
bit 9
bit 8
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
bit 15
bit 14
bit 13
bit 12
bit 11
bit 10
bit 9
bit 8
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
bit 15
bit 14
bit 13
bit 12
bit 11
bit 10
bit 9
bit 8
&
&
&
&
&
&
&
&
:STAT:OPER:COND?
Operation Condition Register
:STAT:OPER:EVEN?
Operation Event Register
:STAT:OPER:ENAB?
Operation Event Enable Register
