*Nut (eight units)
*Through-bolt (four units)
*Gasket (two units)
Mini-flange
Centering device (two units)
Piping-side flange
F0314.ai
*: These items can be ordered optionally.
If they are provided by the user, choose nuts and
bolts in compliance with the flange ratings.
Vertical mounting
Horizontal mounting

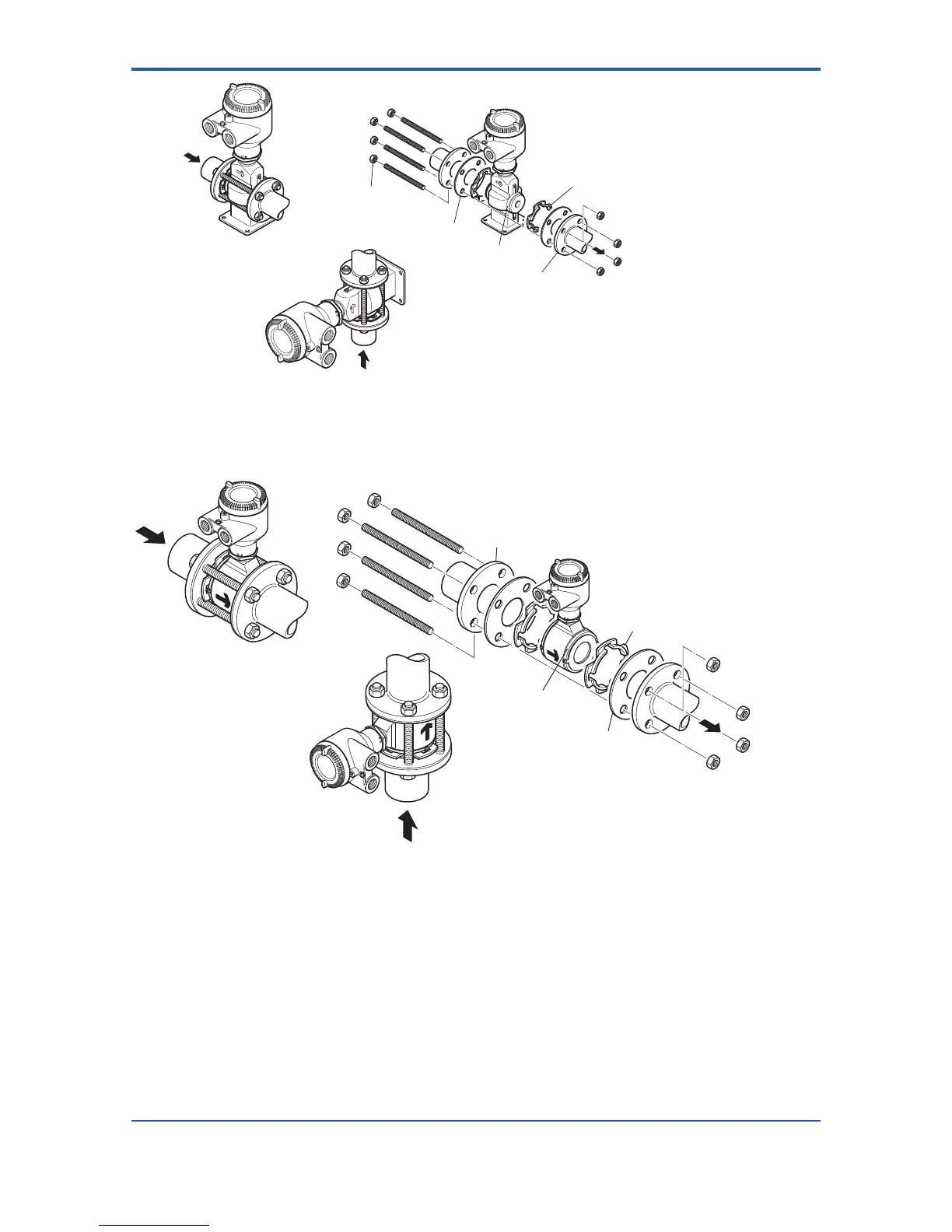

Figure 3.3.2 Mounting Procedure for Wafer Type (sizes: 2.5 to 15 mm (0.1 to 0.5 in.))
*: These items can be ordered optionally.
If they are provided by the user, choose nuts and
bolts in compliance with the flange ratings.
*Nut (eight units)
*Through-bolt (four units)
Centering device (two units)
*Gasket (two units)
Piping-side flange
Mini-flange
Vertical mounting
Horizontal mounting
Figure 3.3.3 Mounting Procedure for Wafer Type (sizes: 25, 32 and 40 mm (1.0, 1.25 and 1.5 in.))
