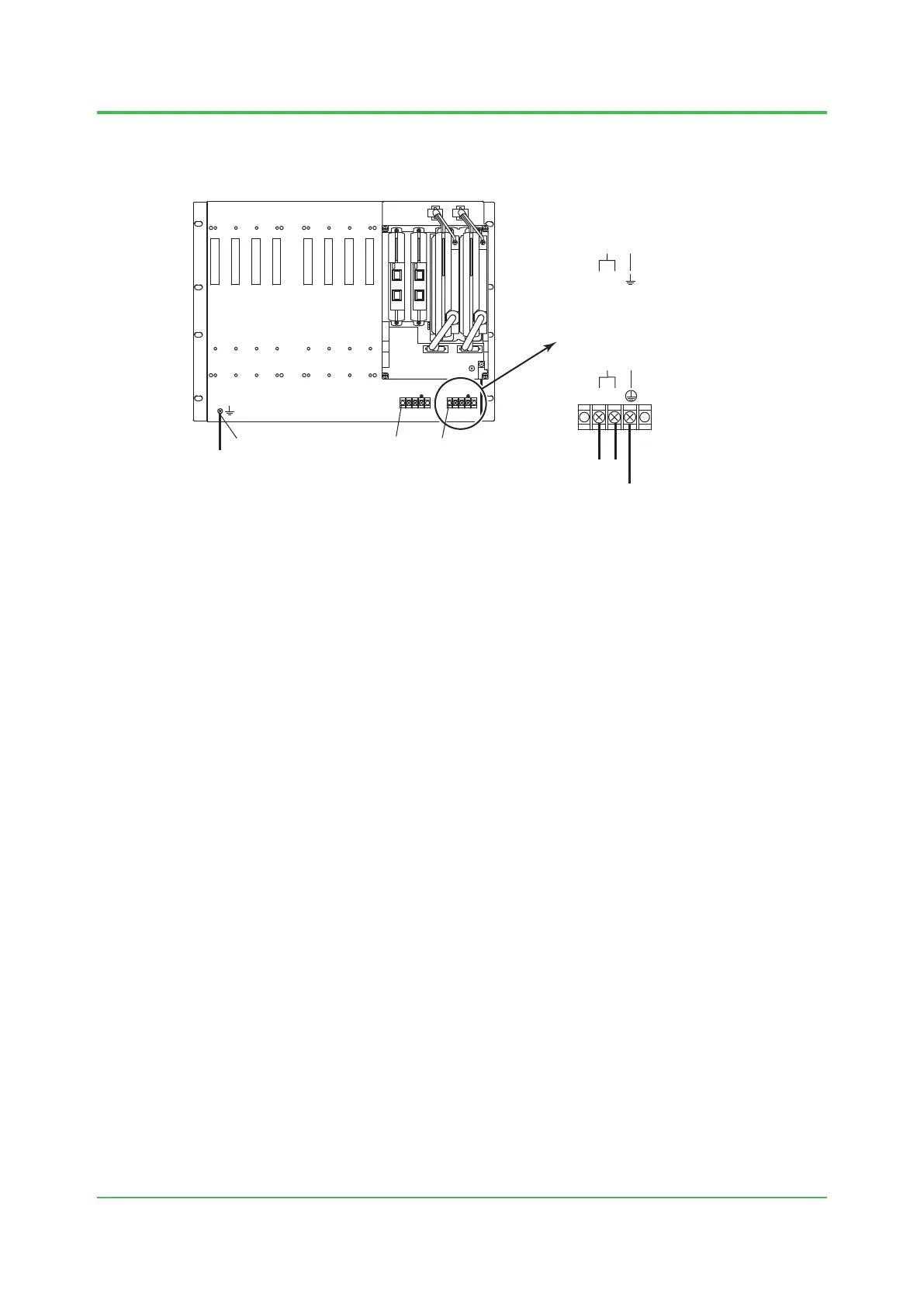

Table Signal Cables for Connection with FIO (2/2)
Module Name
I/O channels
per Module
Connection Signal
Pressure
Clamp
Terminal
Yokogawa-
specific
Cable (*1)
MIL
Cable
Digital I/O Modules
ADV151 Digital Input Module (24 V DC, 4.1 mA) 32
x x x
ADV551 Digital Output Module (24 V DC, 100 mA) 32
x x x
ADV141 Digital Input Module (100 to 120 V AC, 4.7 mA) 16
x x(*2) –
ADV142 Digital Input Module (220 to 240 V AC, 6.2 mA/ch) 16
x x(*2) –
ADV157
Digital Input Module (24 V DC, 4.1 mA, Pressure
Clamp Terminal Support Only)
32
x – –
ADV557
Digital Output Module (24 V DC, 100 mA,
Pressure Clamp Terminal Support Only)
32
x – –
ADV161 Digital Input Module (24 V DC, 2.5 mA) 64 – x(*2) x
ADV561 Digital Output Module (24 V DC, 100 mA) 64 – x(*2)
x
ADR541
Relay Output Module
(24 to 110 V DC/100 to 240 V AC)
16
x x(*2) –
ADV859
Digital I/O Module for Compatible ST2
(Isolated Channels)
16 input
/16 output
– x(*2) –
ADV159
Digital Input Module for Compatible ST3
(Isolated Channels)
32 – x(*2) –
ADV559
Digital Output Module for Compatible ST4
(Isolated Channels)
32 – x(*2) –
ADV869
Digital I/O Module for Compatible ST5
(Common Minus Side Every 16-Channel)
32 input
/32 output
– x(*2) –
ADV169
Digital Input Module for Compatible ST6
(Common Minus Side Every 16-Channel)
64 – x(*2) –
ADV569
Digital Output Module for Compatible ST7
(Common Minus Side Every 16-Channel)
64 – x(*2) –
Communication Modules
ALR111
RS-232C Communication Module
(1200 bps to 115.2 kbps)
2 port –
x (D-SUB9
pin) (*2)
–
ALR121
RS-422/RS-485 Communication Module
(1200 bps to 115.2 kbps)
2 port –
x (M4
terminal
block 5-
pole) (*2)
–
ALE111 Ethernet Communication Module (10 Mbps) 1 port –
x (RJ-45)
(*2)
–
ALF111
Foundation Fieldbus (FF-H1) Communication Module
(31.25 kbps)
4 port
x x(*2) –
ALP111 PROFIBUS-DP Communication Module 1 port – x(*2) –
Analog I/O Modules with Built-in Barrier
ASI133 Analog Input Module (4 to 20 mA, Isolated) 8
x – –
ASI533 Analog Output Module (4 to 20 mA, Isolated) 8
x – –
AST143
TC/mV Input Module (TC: B, E, J, K, N, R, S, T / mV:
-100 to 150 mV, -50 to 75 mV, Isolated)
16
x – –
ASR133
RTD/POT Input Module (RTD: Pt50, Pt100, Pt200,
Pt500, Pt1000, Ni100, Ni200, Ni120 / POT: 0 to 10
kΩ,Isolated)
8
x – –
Digital I/O Modules with Built-in Barrier
ASD143 Digital Input Module (NAMUR compatible, Isolated) 16
x – –
ASD533 Digital Output Module (Isolated) 8
x – –
x : Can be connected.
– : Cannot be connected.
*1: Yokogawa-specific cable for connecting I/O Module and a terminal board, etc.
*2: Can be connected directly with a Yokogawa-specific cable, without a terminal block.
