YOKOGAWA CENTUM CS 3000 - List of Signal Cables for Connection with FIO

3. Cabling
3-51
TI 33Q01J10-01E

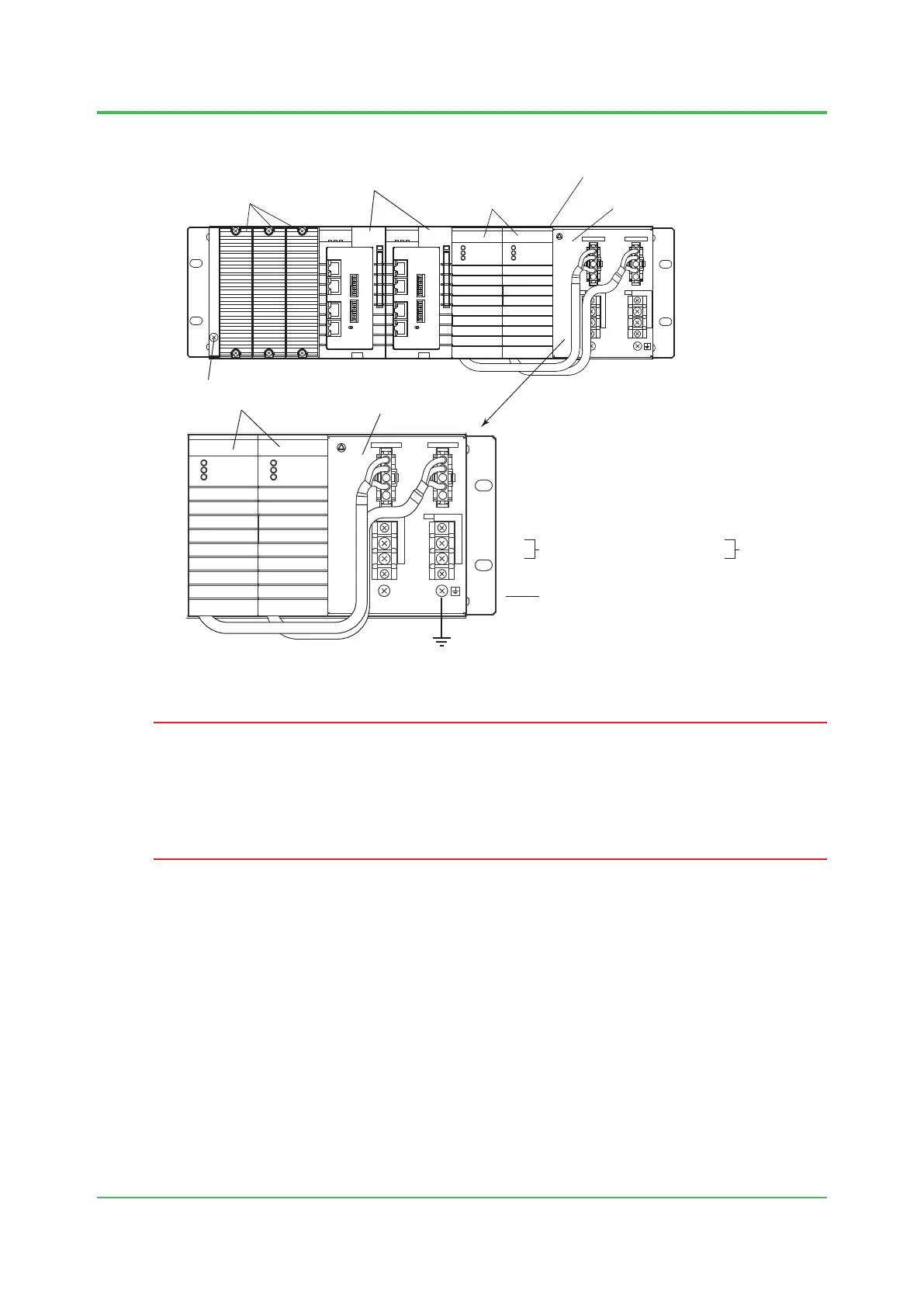

3.6.2 List of Signal Cables for Connection with FIO
The following table shows the list of signal cables connections with FIO.
Table Signal Cables for Connection with FIO (1/2)
Module Name
I/O channels
per Module
Connection Signal
Pressure
Clamp
Terminal
Yokogawa-
specific
Cable (*1)
MIL
Cable
Analog I/O Modules
AAI141 Analog Input Module (4 to 20 mA, Non-Isolated) 16 x x x
AAV141 Analog Input Module (1 to 5 V, Non-Isolated) 16 x x x
AAV142 Analog Input Module (-10 to +10 V, Non-Isolated) 16 x x x
AAI841
Analog I/O Module
(4 to 20 mA Input, 4 to 20 mA Output, Non-Isolated)
8 input/8 output x x x
AAB841
Analog I/O Module
(1 to 5 V Input, 4 to 20 mA Output, Non-Isolated)
8 input/8 output x x x
AAV542 Analog Output Module (-10 to +10 V, Non-Isolated) 16 x x x
AAI143 Analog Input Module (4 to 20 mA, Isolated) 16 x x x
AAI543 Analog Output Module (4 to 20 mA, Isolated) 16 x x x
AAV144 Analog Input Module (-10 to +10 V, Non-Isolated) 16 x x x
AAV544 Analog Output Module (-10 to +10 V, Non-Isolated) 16 x x x
AAT141
TC/mV Input Module (TC: R, J, K, E, T, B, S, N
/mV: -100 to 150 mV, Isolated)
16 x – x(*3)
AAR181 RTD Input Module (RTD: Pt100 Ω, Isolated) 12 x – x
AAI135 Analog Input Module (4 to 20 mA, Isolated Channels) 8 x x x
AAI835 Analog I/O Module (4 to 20 mA, Isolated Channels) 4 input/4 output x x x
AAT145
TC/mV Input Module (TC: R, J, K, E, T, B, S, N
/mV: -100 to 150 mV, Isolated Channels)
16 – x(*2) –
AAR145
RTD/POT Input Module (RTD: Pt100 Ω /POT: 0 to 10
kΩ, Isolated Channels)
16 – x(*2) –
AAP135
Pulse Input Module
(Pulse Count, 0 to 10 kHz, Isolated Channels)
8 x x x
AAP149
Pulse Input Module for compatible PM1
(Pulse Count, 0 to 6 kHz, Non-Isolated)
16 – x –
AAP849
Pulse Input/Analog Output module for compatible PAC
(Pulse Count input, 4 to 20 mA output, Non-Isolated)
8 input/8 output –
x –
x : Can be connected.
– : Cannot be connected.
*1: Yokogawa-specific cable for connecting I/O Module and a terminal board, etc.
*2: Can be connected directly with a Yokogawa-specific cable, without a terminal block.
*3: When a MIL connector cable is connected, AAT141 modules can be used as mV-input modules.
Sep. 30, 2008-00
