3. Cabling
3-74
TI 33Q01J10-01E

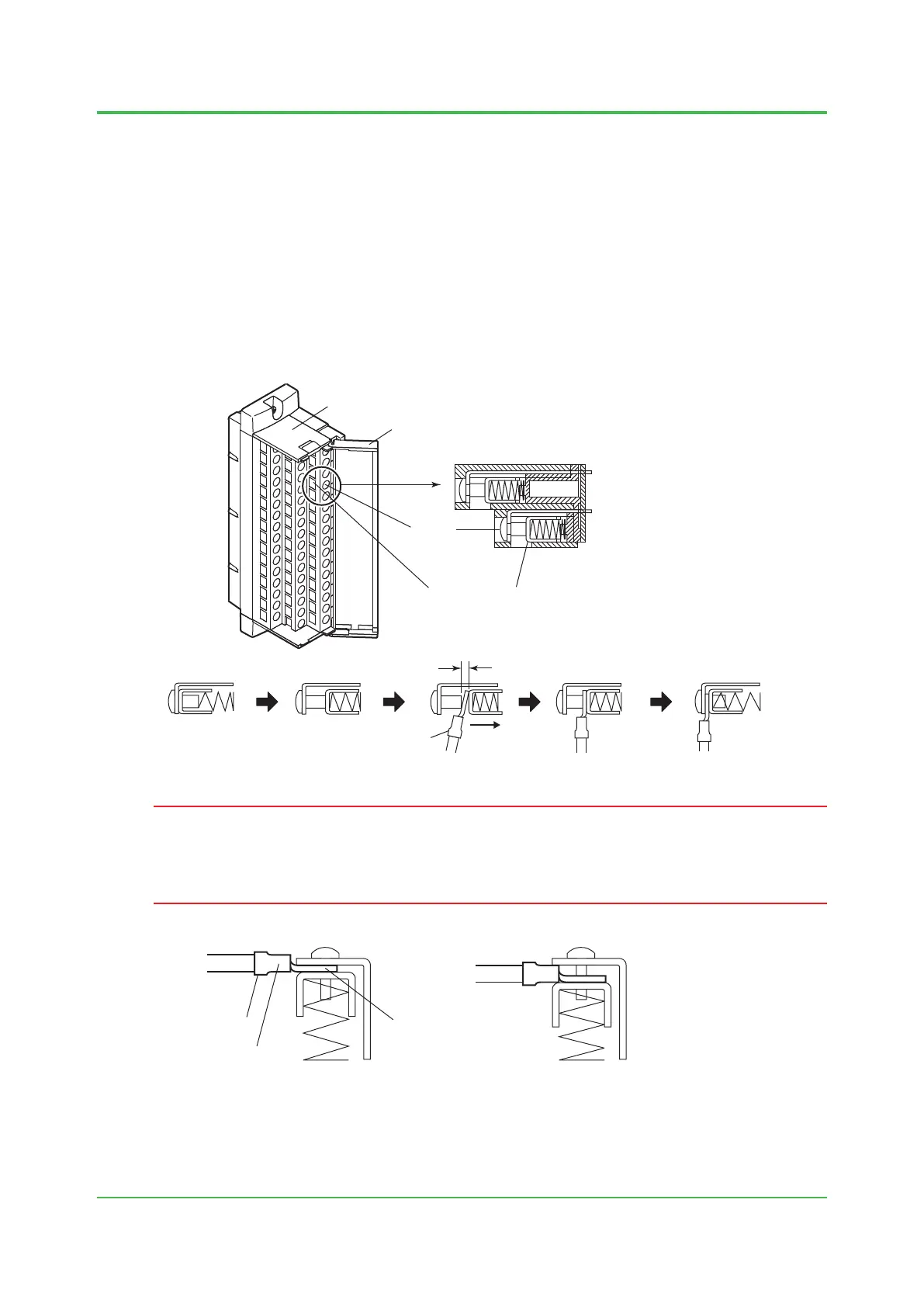

3.7.6 Connecting Signal Cables with Multiplexer Modules
(Terminal Type)
Voltage Input, mV Input, Thermocouple Input, 2-wire Transmitter Input,
Current Output Modules AMM12T, AMM22M, AMM22T, AMM22TJ,
AMM42T, AMM52T.
Only one AMM42T or AMM52T can be installed in one nest.
B
A
B
A
F030713.ai
AMN31
Module
Multiplexer
Terminals
Signal cables
16
Not used
1
2
-
+
+
Not used
16
1
2
I/O
channels
-
-
+
Figure Multiplexer Module Signal Cable Connection
RTD Input Modules AMM32T, AMM32TJ
Only one AMM32T or AMM32TJ can be installed in one nest.
B B
A
F030714.ai
AMN31
Multiplexer
Module
Terminal
Signal cables
16
1
2
I/O
channels
Figure Signal Cable Connection of RTD Input Multiplexer Modules AAM32T, AAM32TJ
