2. Transportation, Storage and Installation
2-5
TI 33J01J10-01EN
n Carrying
This section describes how to carry cabinets.
lCarrying Space
Carry cabinets into the location of installation without unpacking.
4000 mm is required for placing as well as unpacking.
Table Required Entrance and Elevator Size
Cabinet
800 mm
Height 2400 mm
Depth 1000 mm
Max. loading capacity 400 kg
lPassage
The passage must be wide enough as shown below. It must also be strong enough to withstand
the weight of the cabinet. Determine the passage according to the cabinet’s and carrier’s size
and weight.
• Carrying cabinet in
1000 mm
800 mm
1300 mm
min.
Height: Cabinet height + Carrier height
F020103.ai
1300 mm min.

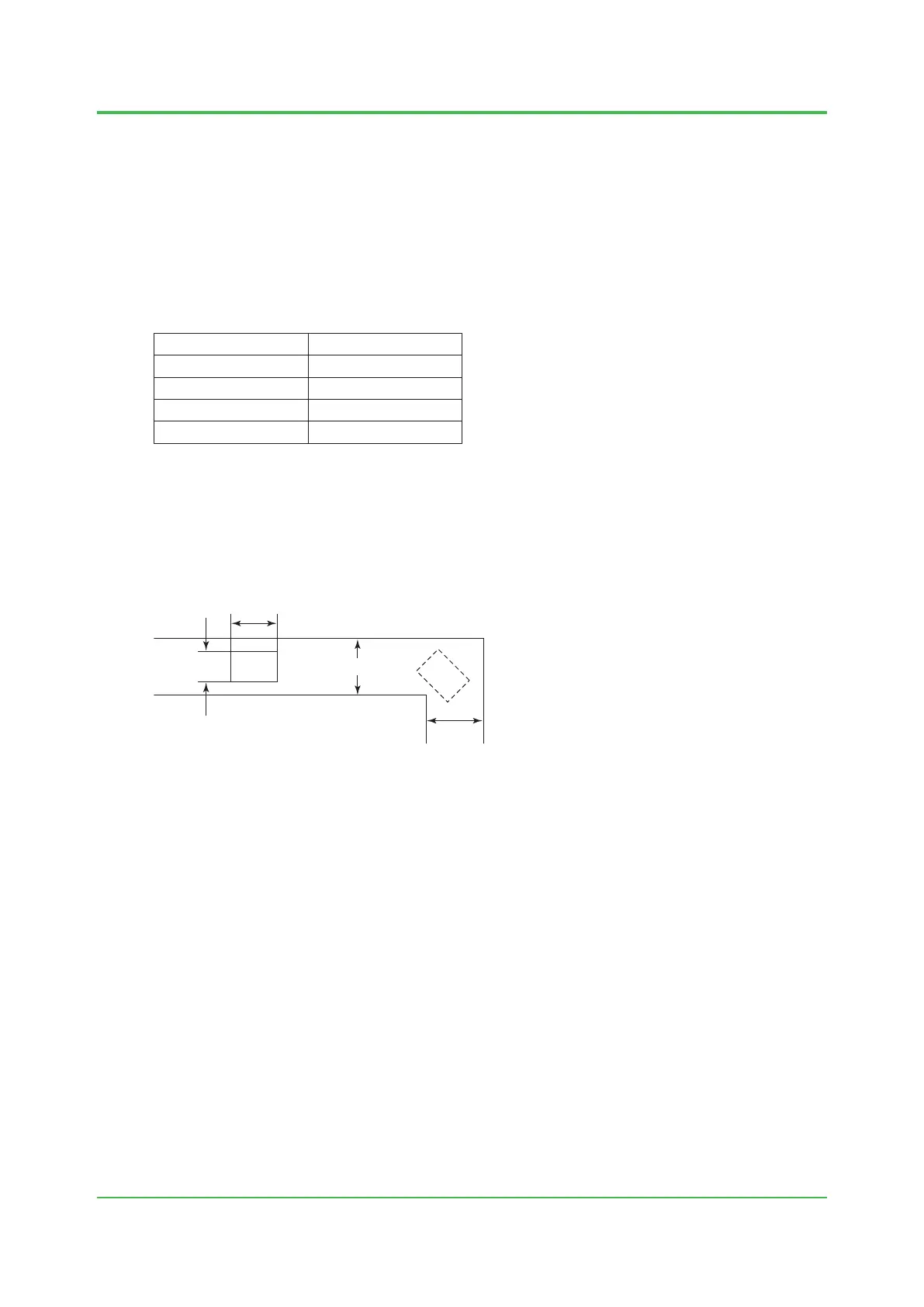

Figure Passage Requirements
lCarrying when Headroom is Low
The cabinet should be carried upright. If this is impossible due to low headroom,
• Gently carry the cabinet with the side down.
• Turn the cabinet to its upright position as soon as the cabinet passes through a place with
low headroom. Attach the side boards to the cabinet.
Apr. 21, 2017-00
To Next Page
