3. Cabling
3-51
TI 33J01J10-01EN
To modify the bottom plates, follow these steps.
F030510.ai
Bottom plate
Screw
Cabinet

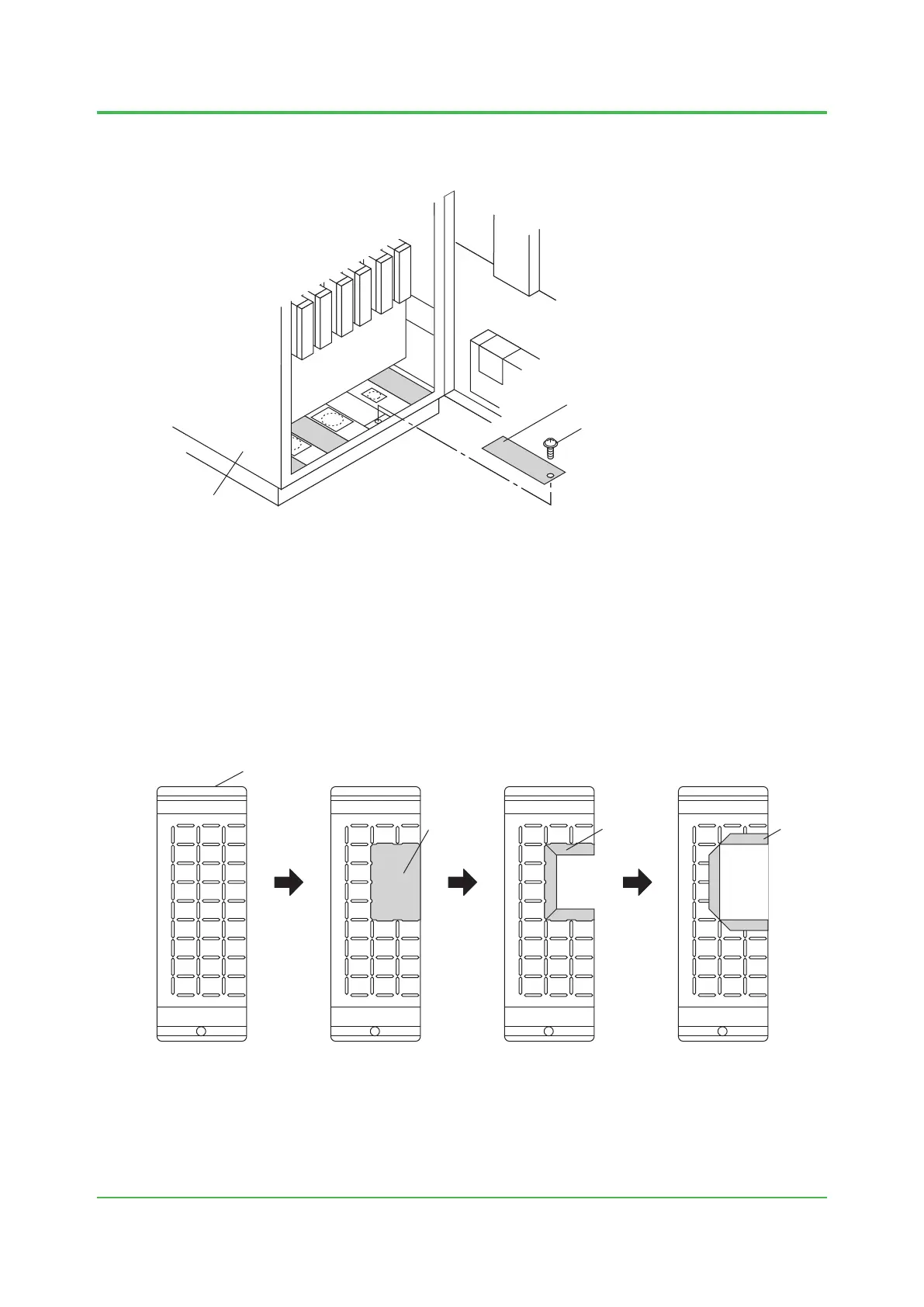

Figure Removing the Bottom Plate
2. Turn the bottom plate upside down so that the bottom faces upwards.
a hole large enough for the cable to pass through is made. Do not cut the sponge pad on the
in the preceding step.
from the surface and stick the sponge pad to the plate.
F030511.ai
Cut the
bottom plate
Cut off a
part of the
sponge pad
Turn over the
sponge pad
Bottom plate
Sponge pad
Sponge pad
Sponge pad
Figure Modifying the Bottom Plate
6. Replace the bottom plate.
Oct. 5, 2018-00
To Next Page
