2. Transportation, Storage and Installation
2-26
TI 33J01J10-01EN
l Mounting of Base plate
F020514.ai
M4 screw with retainar
Node interface unit base plate

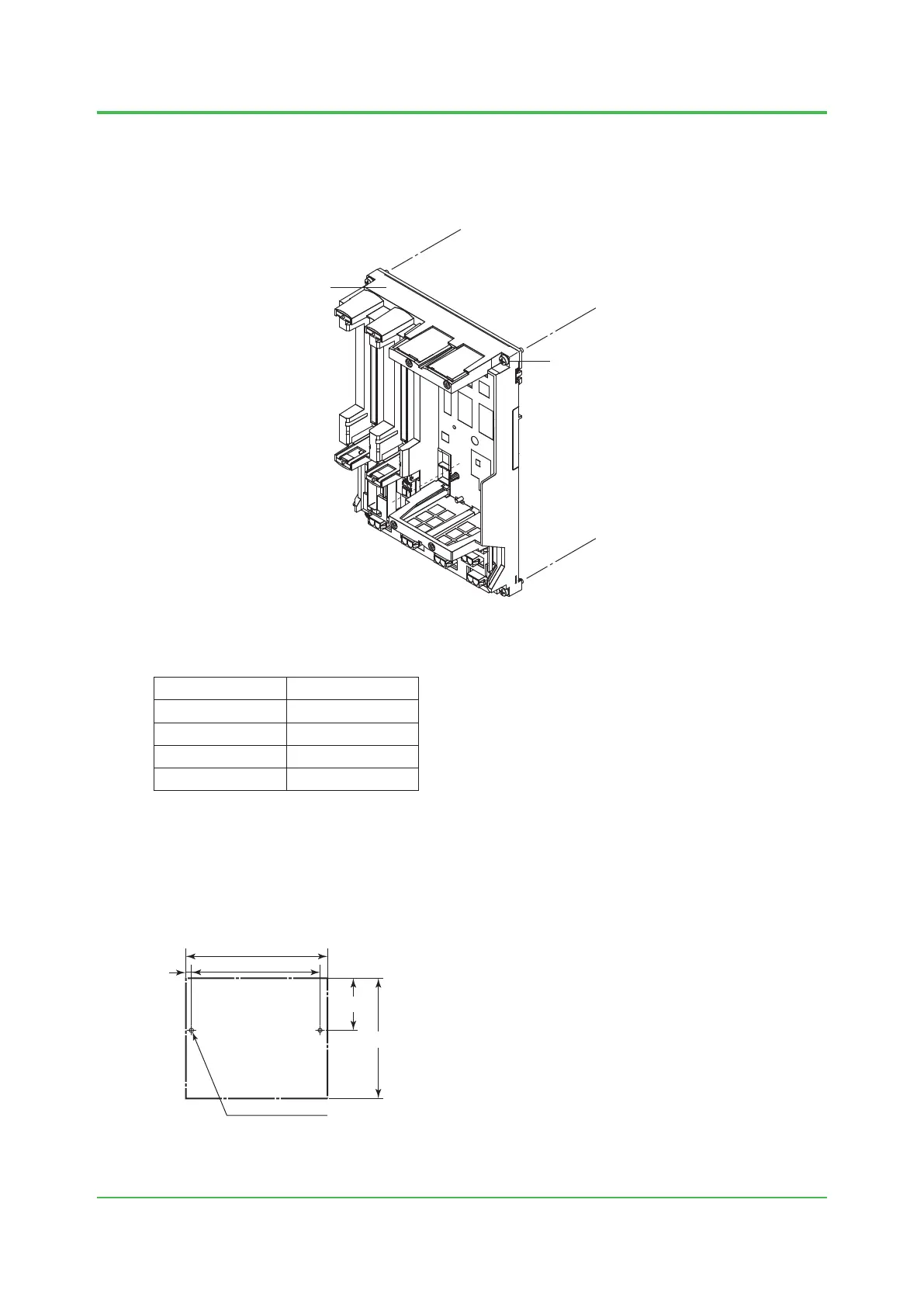

Figure Example of Mounting Node Interface Unit to Wall
Table Tighening Torque for Wall Mountable Devices
Model Torque (N·m)
A2NN30D 0.8~1.0
A2BN3D 0.8~1.0
A2BN4D 1.2
A2BN5D 1.2
l Remarks for Mounting terminal board on a Wall Surface
Installation screws for the terminal board are not supplied and should be purchased separately.
You need two installation screws. If you are using binding heads, use M4 screws with a length of
at least 10 mm. If you are using screws with washers, use M4 screws with a length of at least 12
mm. The screw tightening torque is approximately 0.8 N·m.
Unit: mm
100
±0.5
2-M4 screw holes
110
(40.5)
(93.5)
Device Mounting Area
5
F020529.ai
Figure Screw Installation Dimensions for A2BM4
Oct. 5, 2018-00
To Next Page
