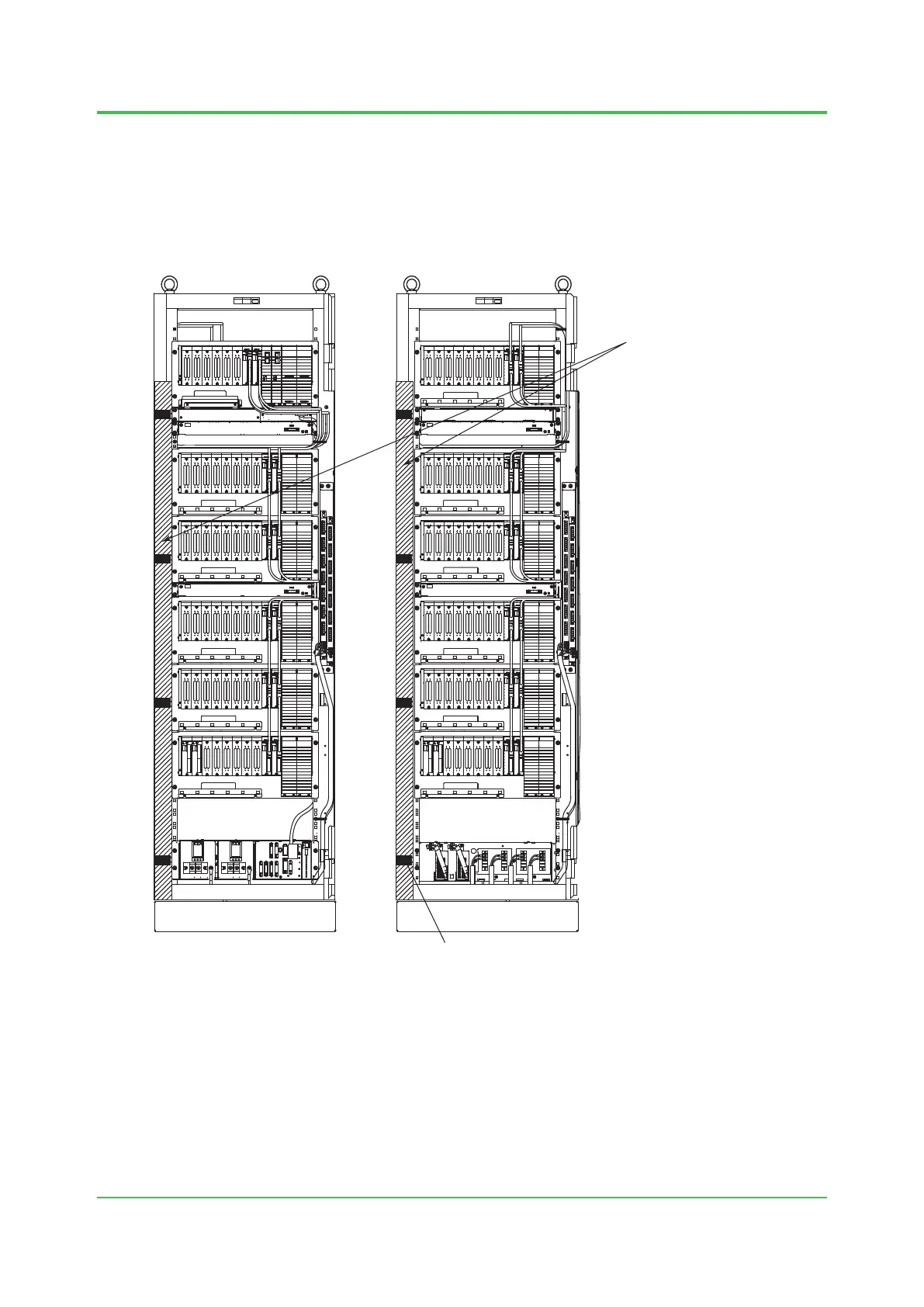

3. Cabling
3-65
TI 33Q01J10-01E
3.7.2 Signal Cables for Connection with RIO
The following table lists the signal cables for connection with RIO.
Table Signal Cables for Connection with RIO
Signal Type Model Module Type
I/O Points Per
Module
Signal
Connection
Analog I/O
Modules
AAM10 Current/Voltage Input Module (Simplified Type) 1
Terminals
AAM11 Current/Voltage Input Module 1
AAM11B Current/Voltage Input Module (supports BRAIN) 1
AAM21 mV, Thermocouple, and RTD Input Module 1
AAM21J
mV, Thermocouple and RTD Input Module
(conforms to IEC 584-1995, IEC 751-1995)
1
APM11 Pulse Input Module 1
AAM50 Current Output Module 1
AAM51 Current/Voltage Output Module 1
AMC80 Multipoint Control Analog I/O Module 8 input/8 output Connector
Relay I/O
Modules
ADM15R Relay Input Module 16
Terminals
ADM55R Relay Output Module 16
Multiplexer
Modules
AMM12T Voltage Input Multiplexer Module 16
AMM22T Thermocouple Input Multiplexer Module 16
AMM32T RTD Input Multiplexer Module 16
AMM42T 2-Wire Transmitter Input Multiplexer Module 16
AMM52T Current Output Multiplexer Module 16
AMM22TJ
Thermocouple Input Multiplexer Module
(16 Points, Terminal Type, conforms to IEC 584-1995)
16
AMM32TJ
RTD Input Multiplexer Module
(16 Points, Terminal Type, conforms to IEC 751-1995)
15
AMM22M mV Input Multiplexer Module 16
AMM12C Voltage Input Multiplexer Module 16
Connector
AMM22C
mV Input Multiplexer Module
(16 Points, Connector Type)
16
AMM25C
mV Input Multiplexer Module with Thermocouple Interface
(15 Points, Connector Type, RJC Input port added)
15
AMM32C
RTD Input Multiplexer Module
(16 Points, Connector Type)
16
AMM32CJ
RTD Input Multiplexer Module
(16 Points, Connector Type, conforms to IEC 751-1995)
16
Digital I/O
Modules
ADM11T Contact Input Module (16 Points, Terminal Type) 16
Terminals
ADM12T Contact Input Module (32 Points, Terminal Type) 32
ADM51T Contact Output Module (16 Points, Terminal Type) 16
ADM52T Contact Output Module (32 Points, Terminal Type) 32
ADM11C Contact Input Module (16 Points, Connector Type) 16
Connector
ADM12C Contact Input Module (32 Points, Connector Type) 32
ADM51C Contact Output Module (16 Points, Connector Type) 16
ADM52C Contact Output Module (32 Points, Connector Type) 32
Communication
Modules
ACM11 RS-232C Communication Module 1ch
ACM12 RS-422/RS-485 Communication Module 1ch
Terminals
ACF11 Fieldbus Communication Module 1ch
Communication
Cards
ACM21 RS-232C General-purpose Communication Card 1ch Connector
ACM22
RS-422/RS-485 General-purpose Communication Card 1ch Terminals
ACM71
Ethernet Communication Module (for PFC
)
1ch
RJ-45 (10BASE-T)
Connector
ACP71 Profibus Communication Module 1ch
D-Sub 9 pin
Connector
May 18, 2007-00
