3. Cabling
3-29
TI 33J01J10-01EN
n ANT10U Unit for Optical Bus Repeater Module (for AFV30/AFV40/
A2FV50)
L
N
Cover
F030413.ai
Power supply module
Power supply
input terminal
Functional grounding
terminal
Functional grounding terminal
(Terminal screw: M4)
(When using insulating bushing)
When not using the
attached power cord,
uncover and remove its
cord, then connect
a power cable and a
grounding cable.
IO1 IO2 IO3 IO4 IO5 IO6 IO7 IO8 B1 B2

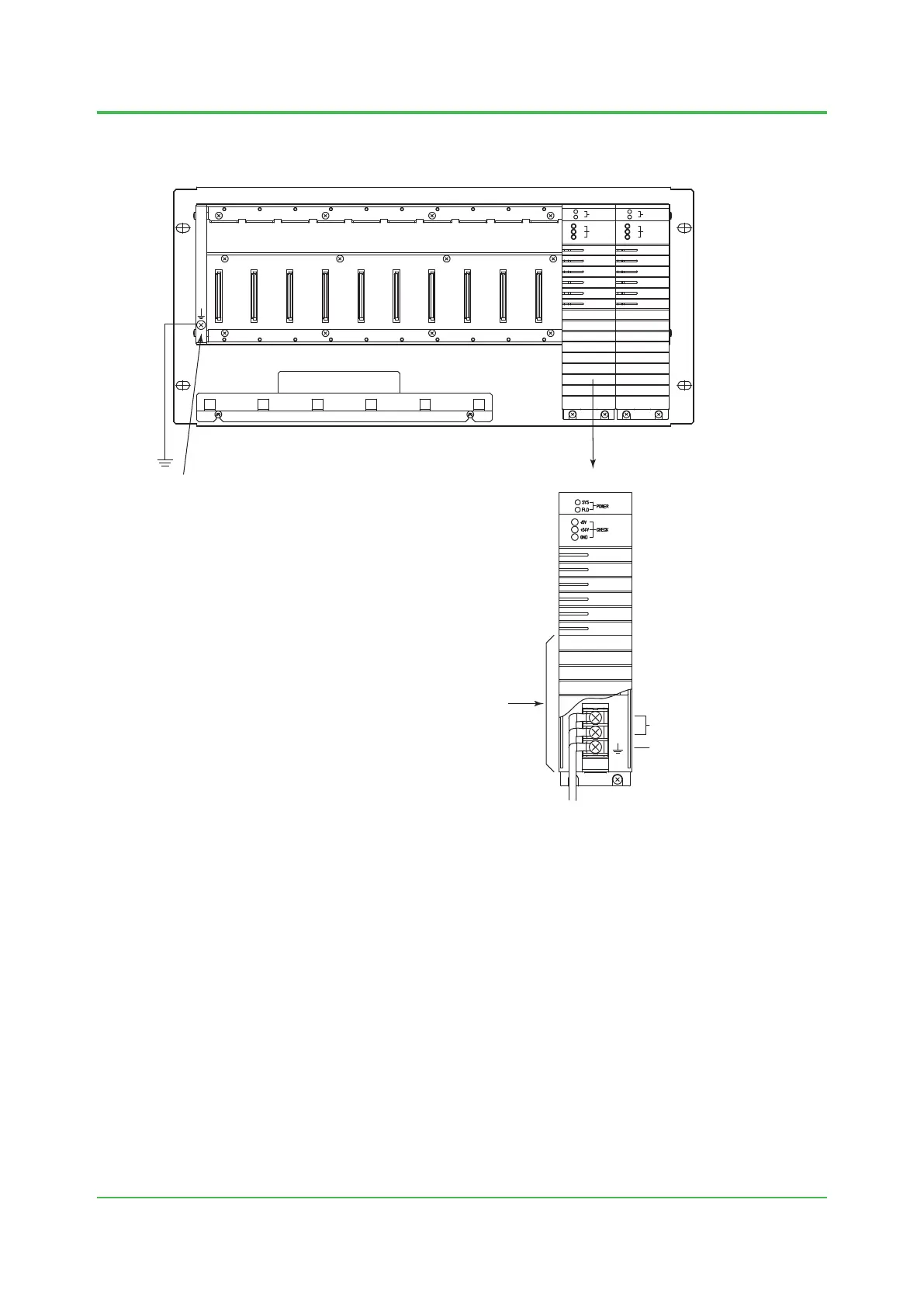

Figure ANT10U Power Cable Connection
Oct.5, 2018-00
