Redundant AAM50/AAM51
These modules output signals of 4 to 20 mA or 0 to 10 V.
They may be made redundant when they are set in the current output mode.
To make them redundant, two AAM50 or AAM51 modules must be installed in two adjacent
slots beginning with an odd-number slot (1-2, 3-4, ....13-14, 15-16) and set to be redundant,
and adjacent terminals A and C must be connected to check their outputs against each other as
shown below.
The AAM50 and AAM51 modules cannot be combined for redundancy.

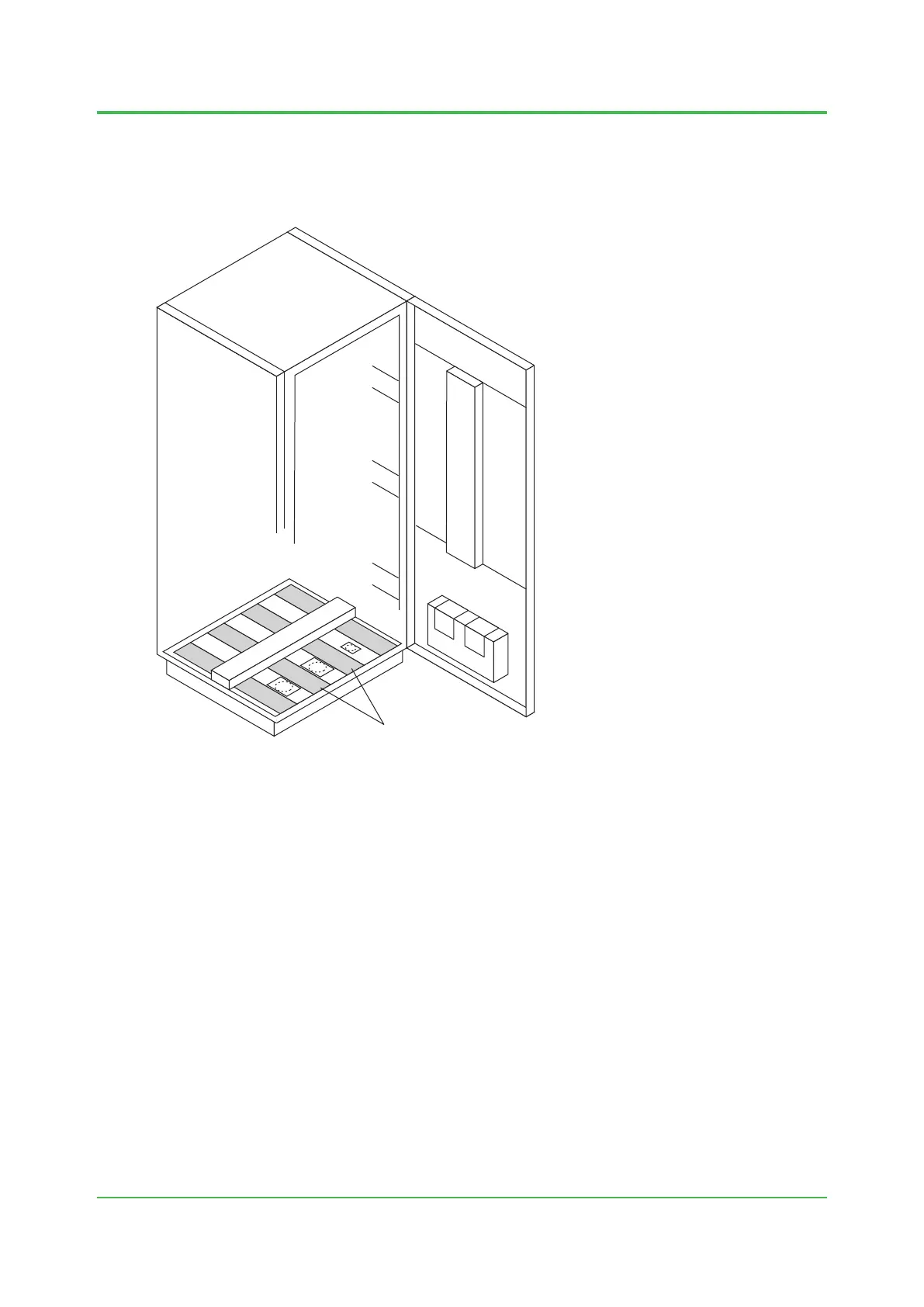

F030708.ai
AAM51
AAM51
Other AAM module
Other AAM module
AMN11
3A
4A
3C
4C
3B
4B
AAM51 modules in slots 3 and 4 are
made redundant in this example.
Figure Redundant Current Output Module AAM51
