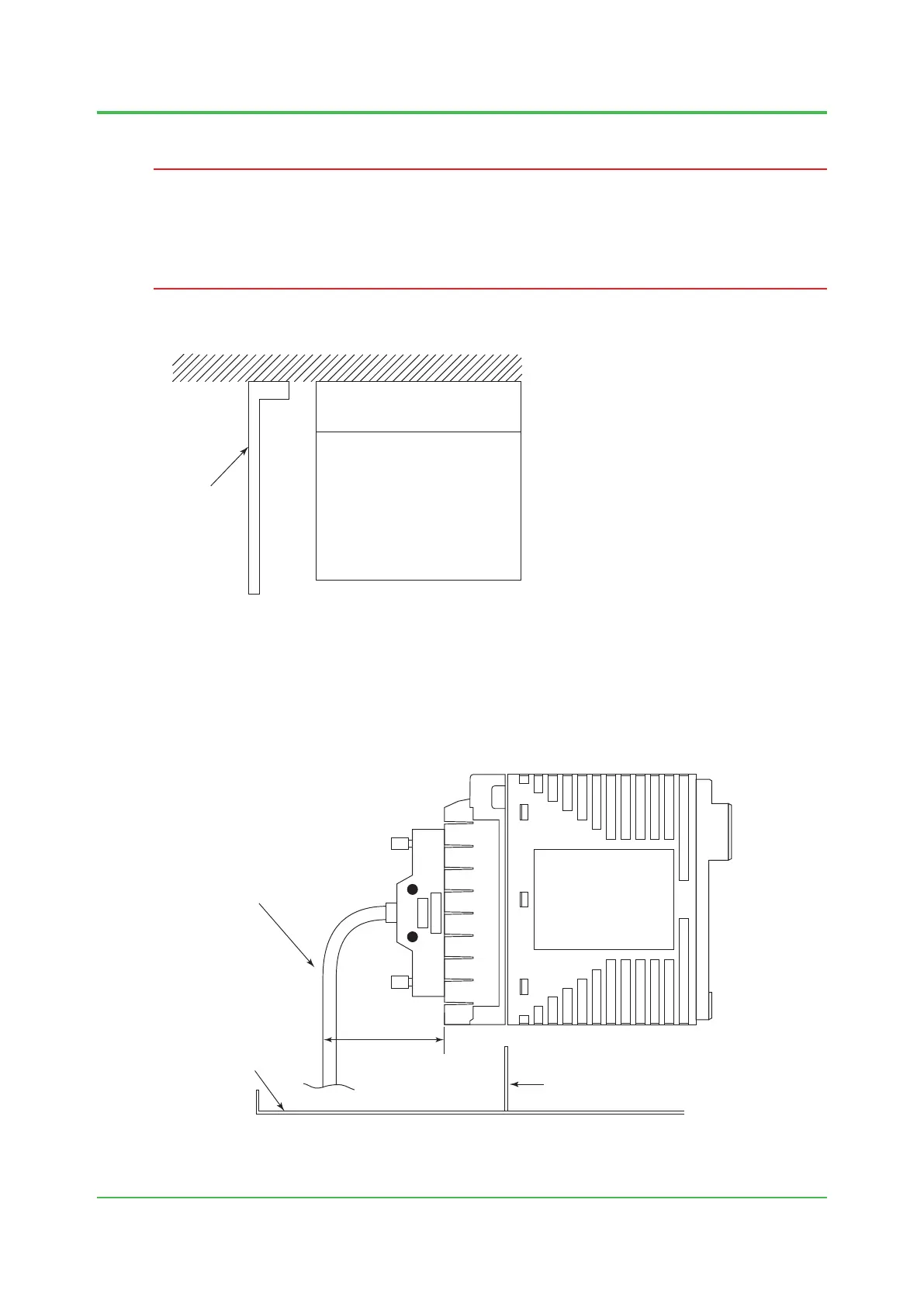

3. Cabling
3-69
TI 33Q01J10-01E
When Receiving Voltage Pulse Signals
+
-
OUTPUT
SW1
RL
SW2
FIL
12 V DC/24 V DC
A
B
C
Transmitter
(SW1: OFF, SW2: OFF)
Setting Items by the system generation builder
SW1 (RL) : OFF (No terminating resistor)
SW2 (FIL) : OFF
+
-
F030705.ai
Figure Voltage Pulse Input
When Receiving Current Pulse By Using the Internal Power to Drive the
Transmitter (2-wire power supply type)
Transmitter
+
-
OUTPUT
SW1
RL
SW2
FIL
12 V DC/24 V DC
A
B
C
(SW1: ON, RL selection, RL=200 ohm,
510 ohm, 1 k ohm, SW2: OFF)
Setting Items by the system generation builder
SW1 (RL)
: Select the value of
RL resistance
SW1 (FIL) : OFF
F030706.ai
Figure 2-Wire Power Supply Type
This method supplies power to the transmitter, and receives the transmitter output signals as the
current pulse signals. By using the input load resistance (select from None,200 ohm, 510 ohm, 1
k ohm), the current signal is converted to the voltage level pulse and receives it.
When Receiving Voltage Pulse By Using the Internal Power to Drive the
Transmitter (3-wire power supply type)
+
-
OUTPUT
SW1
RL
SW2
FIL
12 V DC/24 V DC
A
B
C
Transmitter
(SW1: OFF, SW2: OFF)
Setting Items by the system generation builder
SW1 (RL) : OFF (No terminating resistor)
SW2 (FIL) : OFF
F030707.ai
Figure 3-Wire Power Supply Type
