2. Transportation, Storage and Installation
2-29
TI 33J01J10-01EN
Oct. 5, 2018-00
Mounting Position of Devices
 
• Node Unit : Location 4 to 34
Mounting Position of cabinet Utility Kit (ACUKT1)
  
• PDB: Location 1 to 3
  
• Power Supply Bus Unit, Vertical type (AEPV7D)
FCU (Node 1)
FCU Utility
Node 2
Node Fan (ANFAN-1)
Space for 1U
Node 3
Node Fan (ANFAN-2)
Node 4
Node 5
Node 6
Node 7
PDB (Front)
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
A
E
P
V
7
D
Door Fan
(ADFAN)
Door Fan
(ADFAN)
Front
Node 8
Space for 1U
Node 9
Node Fan (ANFAN-3)
Space for 1U
Node 10
Node Fan (ANFAN-4)
Node 11
Node 12
Node 13
Node 14
PDB (Rear)
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
A
E
P
V
7
D
Door Fan
(ADFAN)
F020515.ai
Door Fan
(ADFAN)
Rear

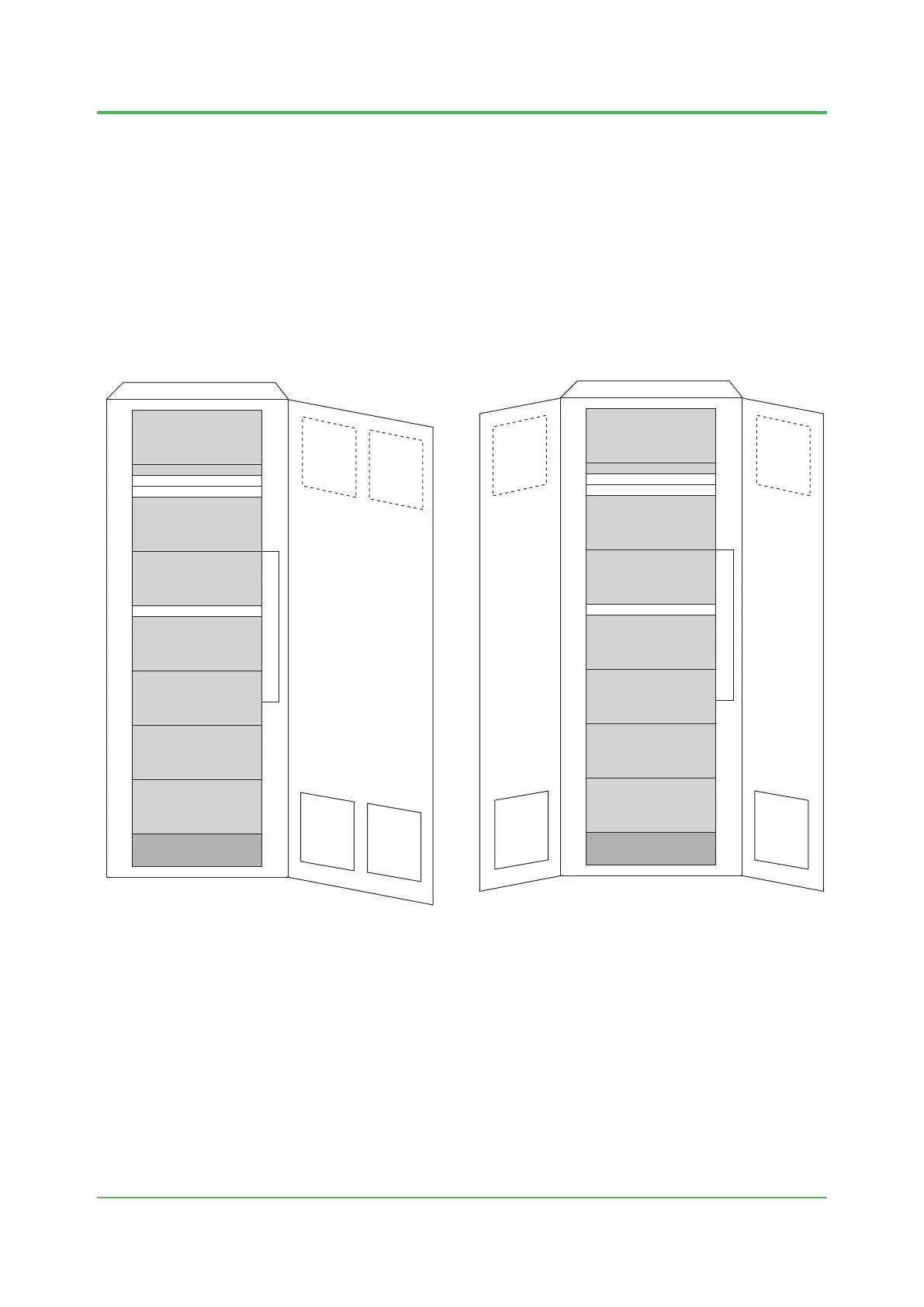

Figure Example of Closely-installed FIO Node Units (A single door is mounted at the front, A double
door is mounted at the rear)
