3. Cabling
3-117
TI 33J01J10-01EN
lCabling for AVR10D System
F030904.ai
Cabinet support
Cabinet support
Cable fastener
Cable fastener
Vnet cables
Vnet/IP cables
Power supply cables
Grounding cables
VC401
Use a cable fastener to fix the Vnet cable onto the support on the left side of the VC401.

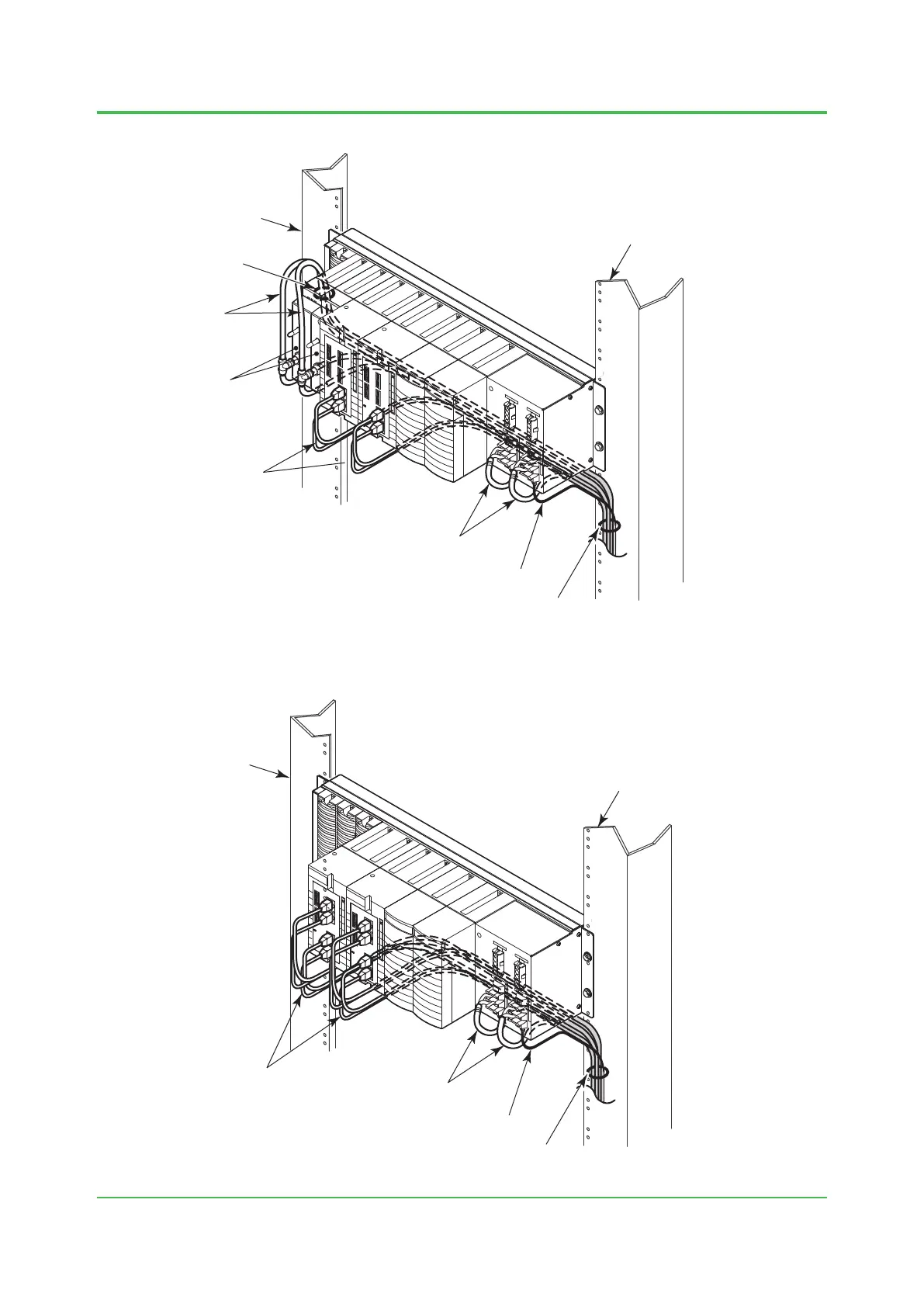

Figure Cabling Diagram of the AVR10D System
lCabling for AW810D System
F030905.ai
Cabinet support
Cabinet support
Cable fastener
Vnet/IP cables
Power supply cables
Grounding cables
Figure Cabling Diagram of the AW810D System
