3. Cabling
3-48
TI 33J01J10-01EN
l AFV30S/AFV30D, ANB10S/ANB10D Wiring
CAUTION
center of cable tray.

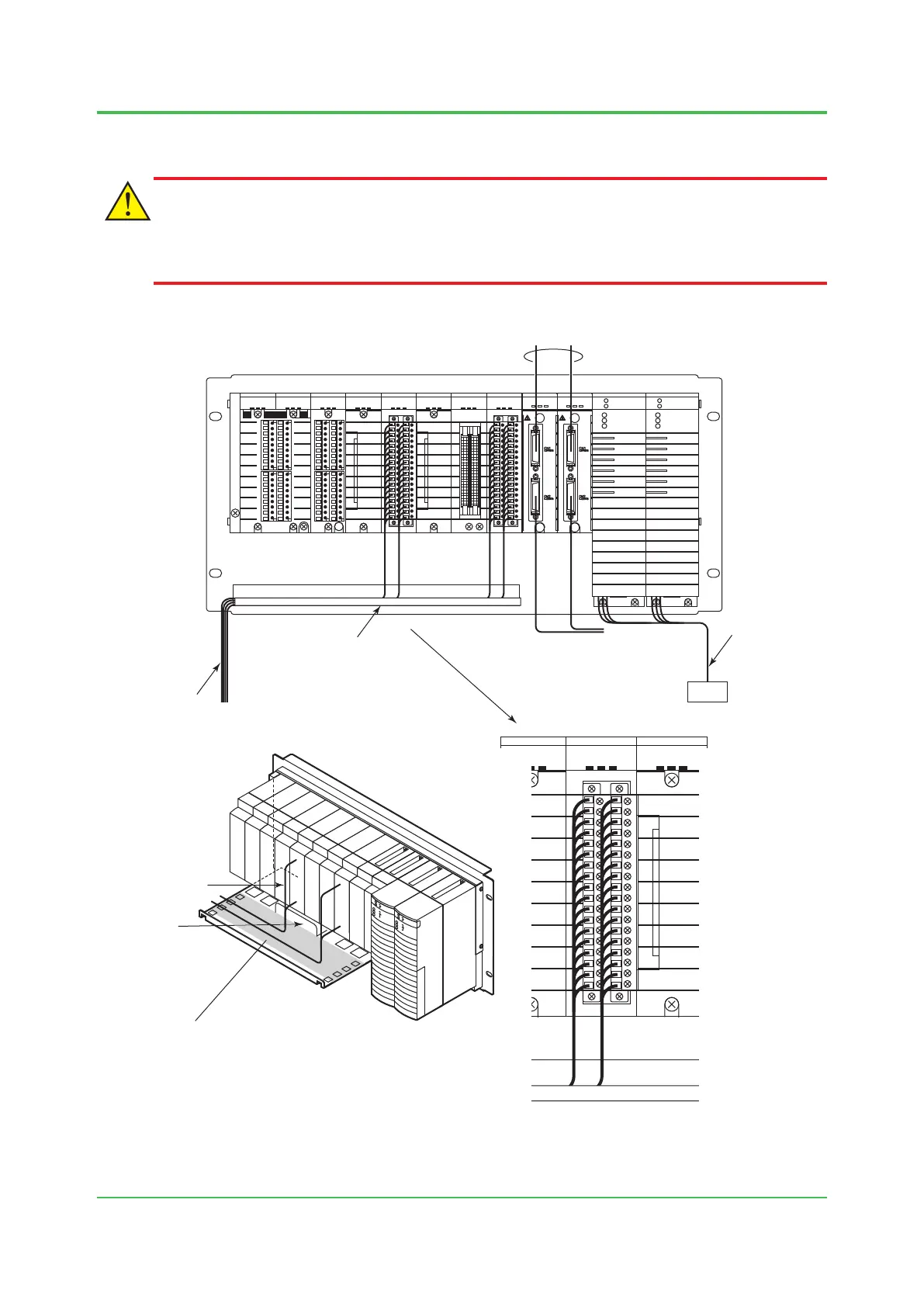

The following shows a dual-redundant ESB bus example.
F030506.ai
Power
Power cable
ANB10D
ESB bus cable
Signal cable
Cable tray
Magnified
To ensure the airflow route around I/O modules
the signal cables over the tray should be kept away
from the ventilation opening of the tray.
Therefore, the cables should not be laid over the
ventilation openings of the tray.
Signal Cable
Separator
Figure ANB10D Wiring
Oct. 5, 2018-00
To Next Page
