3. Cabling

3-119

TI 33J01J10-01EN

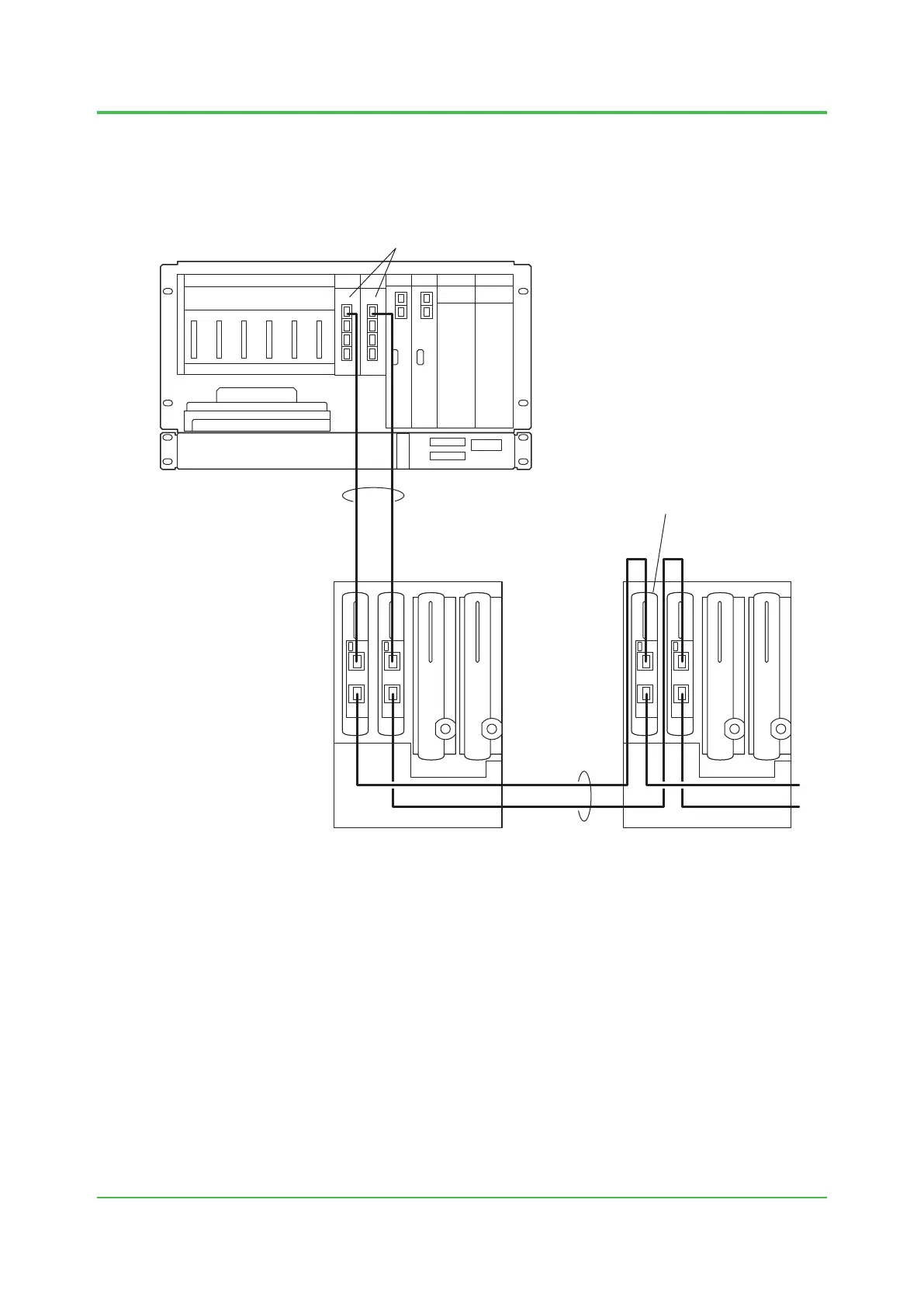

n N-ESB Bus (N-IO System)



Connect UTP Cable of Cat5e (two) from N-ESB Bus Coupler Module (A2EN402, A2EN404) to

N-ESB Bus Module (A2EN501).

F030908.ai

A2FV50D

A2EN402

A2EN501

Bus1 Bus2

UTP of Cat 5e

RJ45

Node Interface Unit

A2EN501-S00

Node Interface Unit

N-ESB Bus

Bus1

Bus2

-S00

-S01

-S02

Figure Example of N-ESB Bus Connection

Oct. 5, 2018-00
