3. Cabling
3-129
TI 33J01J10-01EN
3.10 House Keeping Unit Connection (FIO
system)
n Cabinet Utility Kit (ACUKT1)

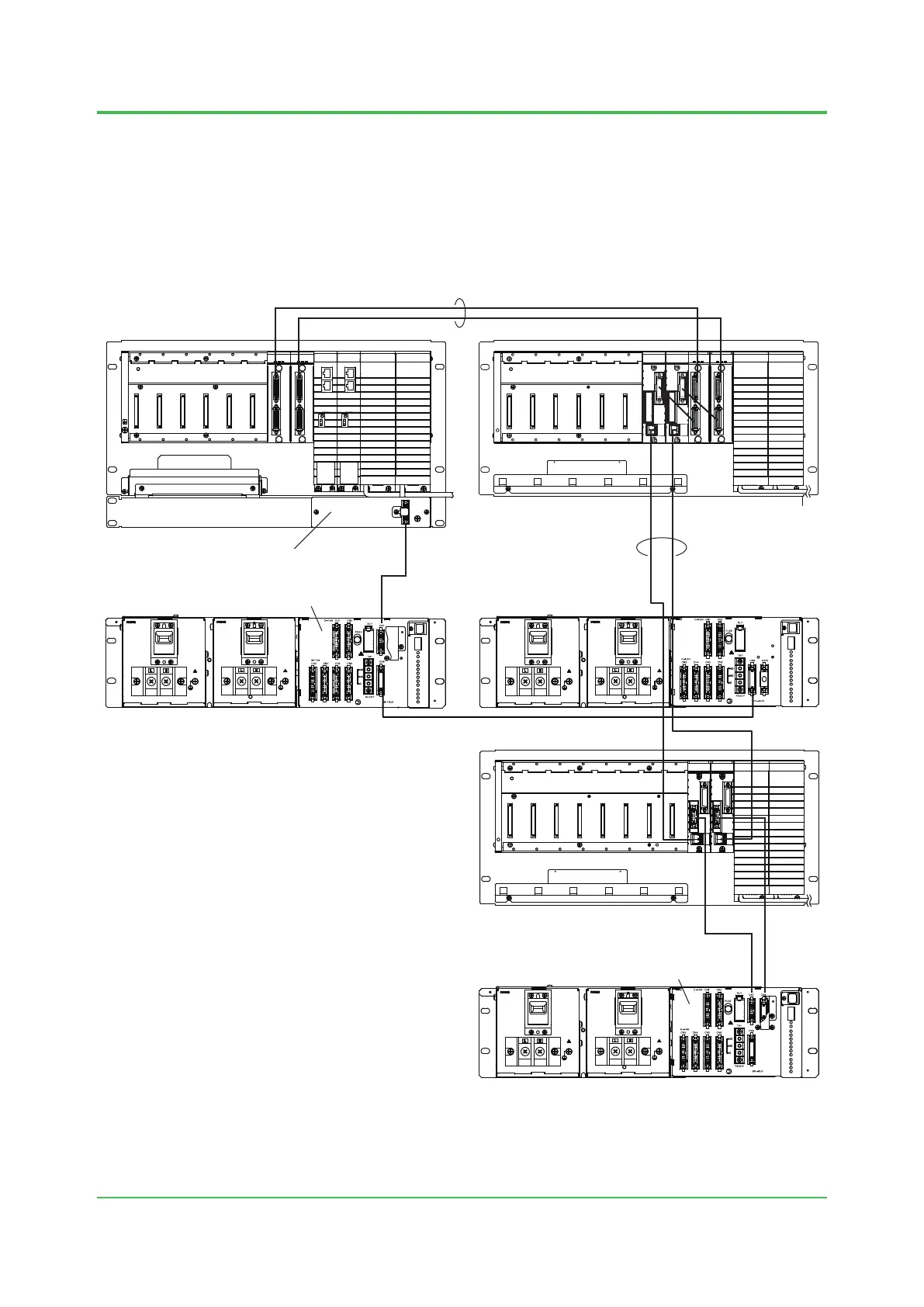

The following shows an HKU wiring example of the Cabinet Utility Kit (ACUKT1).
TM1
TM1
HKU
HKU
ACUKT1-C ACUKT1-L
ACUKT1-R
ANB11D /HU1A
HKU: House Keeping Unit
HK Bus (Max. 100 m)
AFV30D ANB10D
ESB Bus
Optical Bus
HK Interface Unit
F031001.ai
TM1
TM1
TM1
TM1
Figure HKU Connection of ACUKT1
Oct. 5, 2018-00
