3. Cabling
3-42
TI 33J01J10-01EN

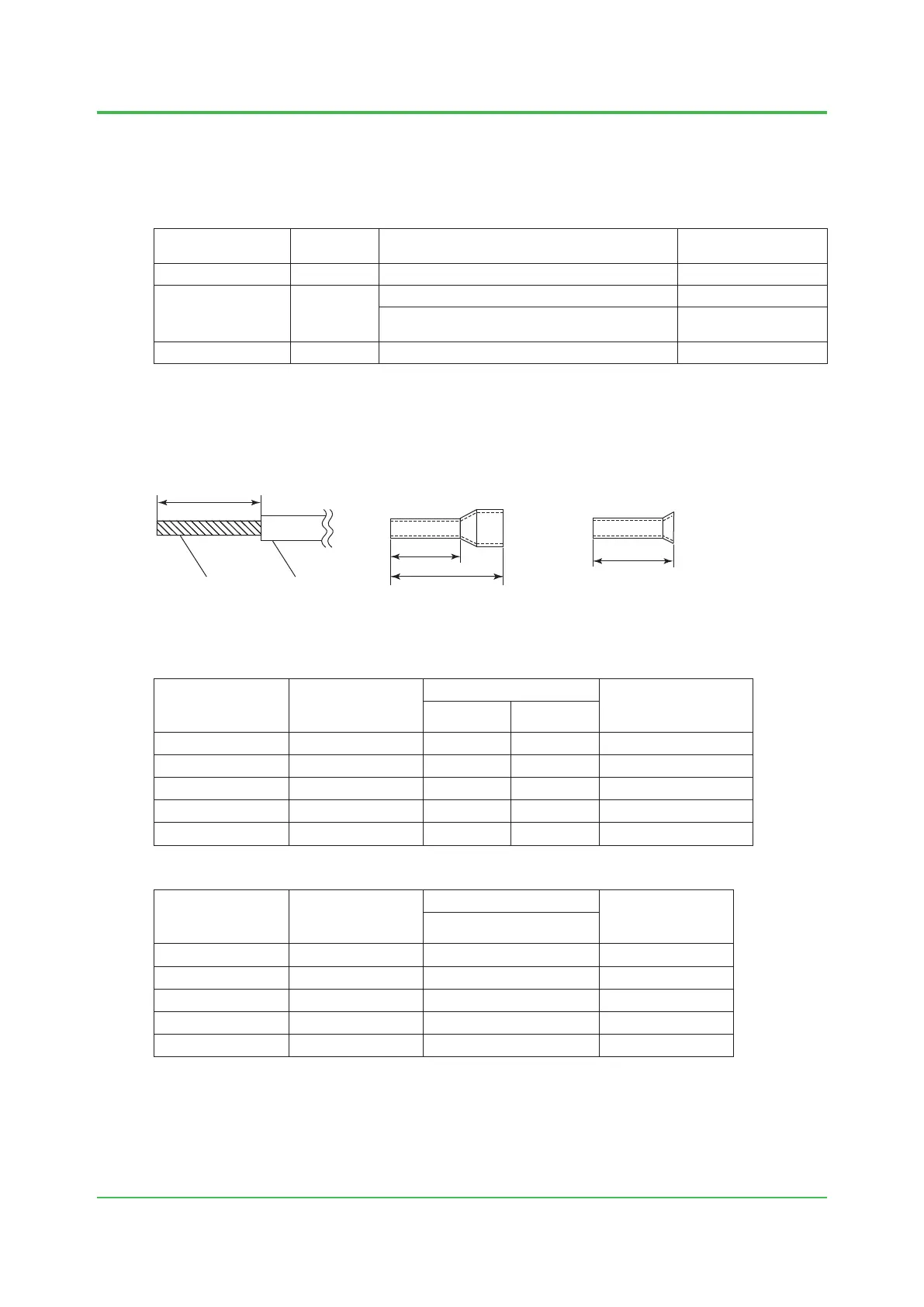

l Pressure Clamp Terminal, Spring Clamp Terminal (for N-IO)
termination:
Table Applicable Interface
Products Models Interface
Sleeve Normal cross
sectional area (mm
2
)
Node Interface Unit A2NN30D External alarm input terminal 0.5 ~ 2.5
A2BN3D
A2BN4D
A2BN5D
0.5 ~ 2.5
Barrier power supply input terminal
0.5 ~ 1.5
Terminal board A2BM4 0.5 ~ 2.5
L1
L2
L1
Sleeve with insulating cover
Core Cable
Peel-off length
F030501.ai
Sleeve (without insulating cover)
Figure Cable termination (for pressure clamp terminals)
Table When sleeves with insulating cover are used
Nominal cross
sectional
area (mm
2
)
Peel-olength
(mm)
Sleeve dimensions (mm)
Weidmuller model
No.
L1 L2
0.5 10 14 8
0.75 10 14 8
1.0 10 14 8
1.5 10 14 8
2.5 11 14 8
Table When sleeves without insulating cover are used
Nominal cross
sectional
area (mm
2
)
Peel-olength
(mm)
Sleeve dimensions (mm)
Weidmuller model
No.
L1
0.5 6 6
0.75 6 6
1.0 6 6
1.5 7 7
2.5 7 7
terminals.
Oct. 5, 2018-00
To Next Page
