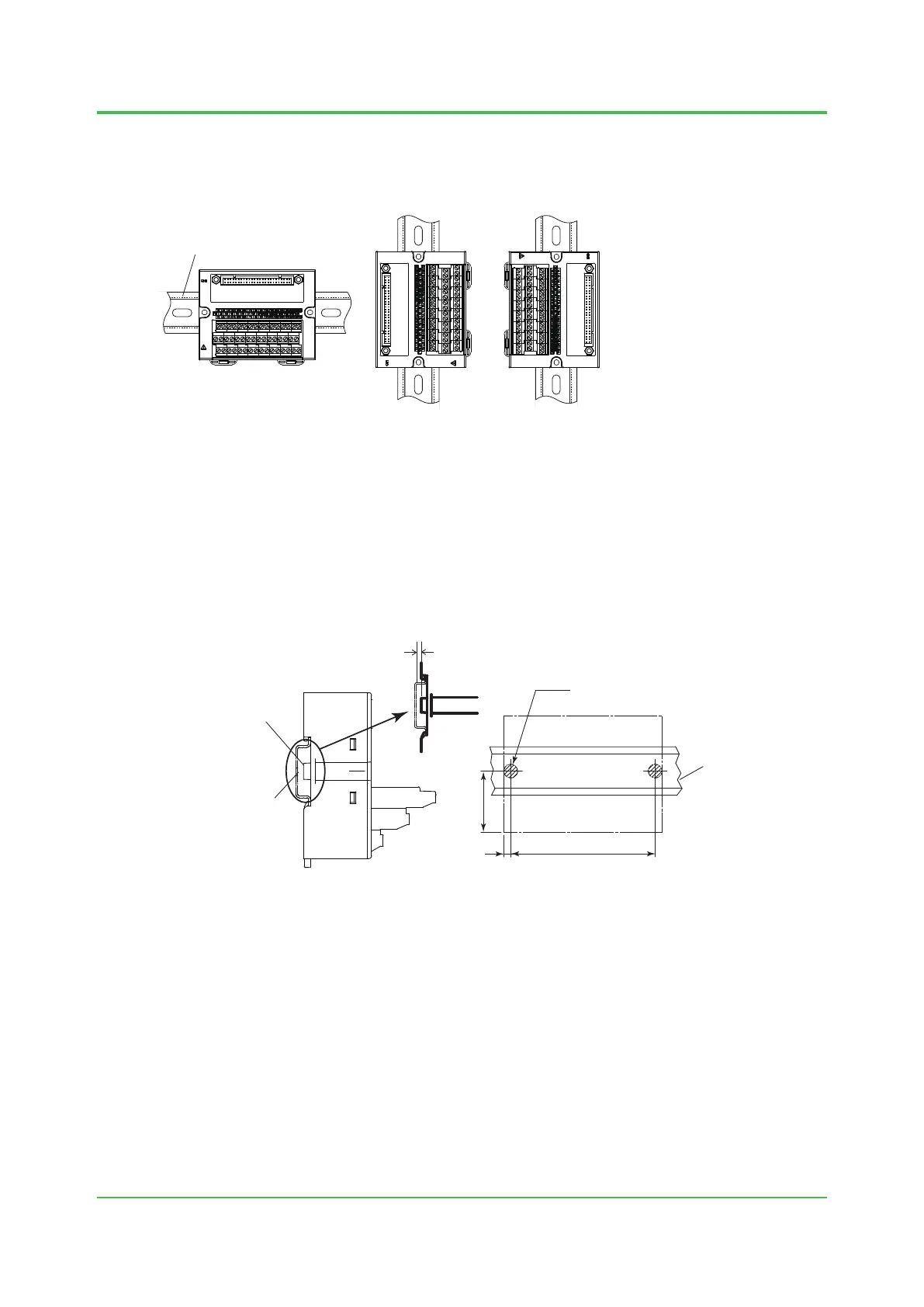

l Installation Orientation for terminal board
DIN rail
Orientation a Orientation b Orientation c
F020527.ai
Figure Installation Orientation for terminal board
n Remarks for Mounting on a DIN Rail
screws on the wall. Be sure not to let mechanical interference happen between these bumps and
2.5 mm or shorter than the DIN rail surface.
F020528.ai
5
45
2 - Ø10
DIN rail
Terminal board outline
2.5 mm max
DIN rail
Bumps (projections)
Unit: mm
100 ± 0.5
Terminal board side view
Figure Remarks for Mounting on a DIN Rail
