3. Cabling
3-123
TI 33J01J10-01EN
n Optical ESB Bus (N-IO System )

Use a N-ESB Bus Module (A2EN501) equipped with an optical module to connect between an
NIU and NIU
F030912.ai
Optical ESB Bus
N-ESB or
Optical ESB Bus
Bus2
Bus1
to Next NIU
Optical ESB Bus
A2EN501
-S01
-S02
NIU NIU
A2EN501
-S1

-S2

A2EN402
Fiber-optic Cable
Silica-based single mode fibers
Type-LC connector, 2-Core
N-ESB Bus

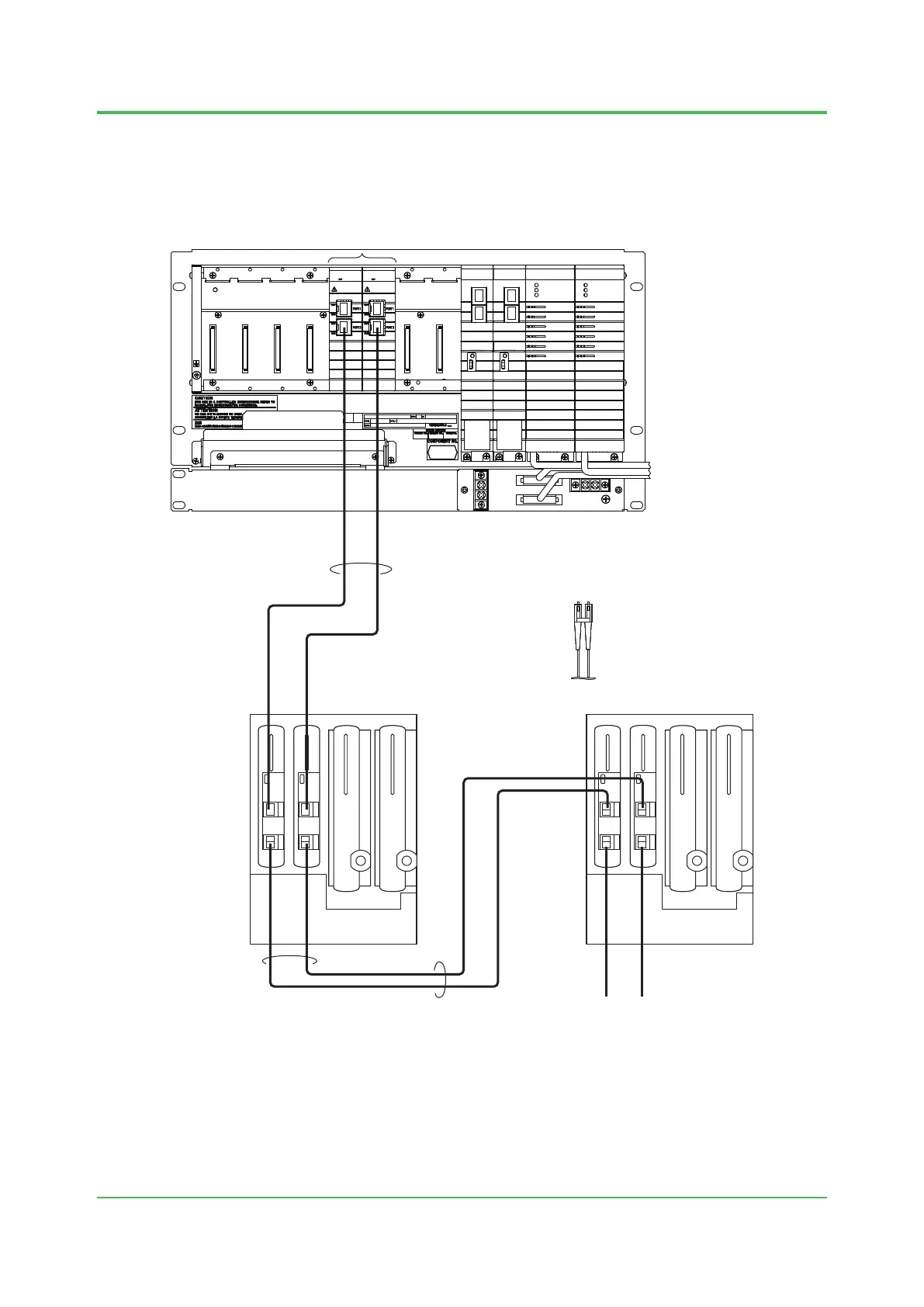

Figure Optical ESB Bus (N-IO) Connection (When Chain Connection)
Oct. 5, 2018-00
