YOKOGAWA CENTUM CS 3000 User Manual

3. Cabling
3-24
TI 33J01J10-01EN
n A2FV50S/A2FV50D Field Control Unit (19-inch Rack Mountable Type)
TM1
READY
CN1 (PSU-L)
TM2 100-120V AC ,
L N
CN2 (PSU-R)
F030409.ai
L
N
TM1
READY
CN1 (PSU-L)
TM2 100-120V AC
L N
CN2 (PSU-R)
Power supply connectors for power supply module
CN1: Left side power supply module
CN2: Right side power supply module
READY contract output
(Terminal screw: M4)
Power supply input terminal
(Terminal screw: M4)
Power supply
input terminal
Attached power cord
Power supply module
External interface unit
Functional grounding
terminal
(Terminal screw: M4)
IO1 IO2 IO3 IO4 IO5 IO6 IO7 IO8
Functional grounding terminal
(Terminal screw: M4)
(When using insulating bushing)

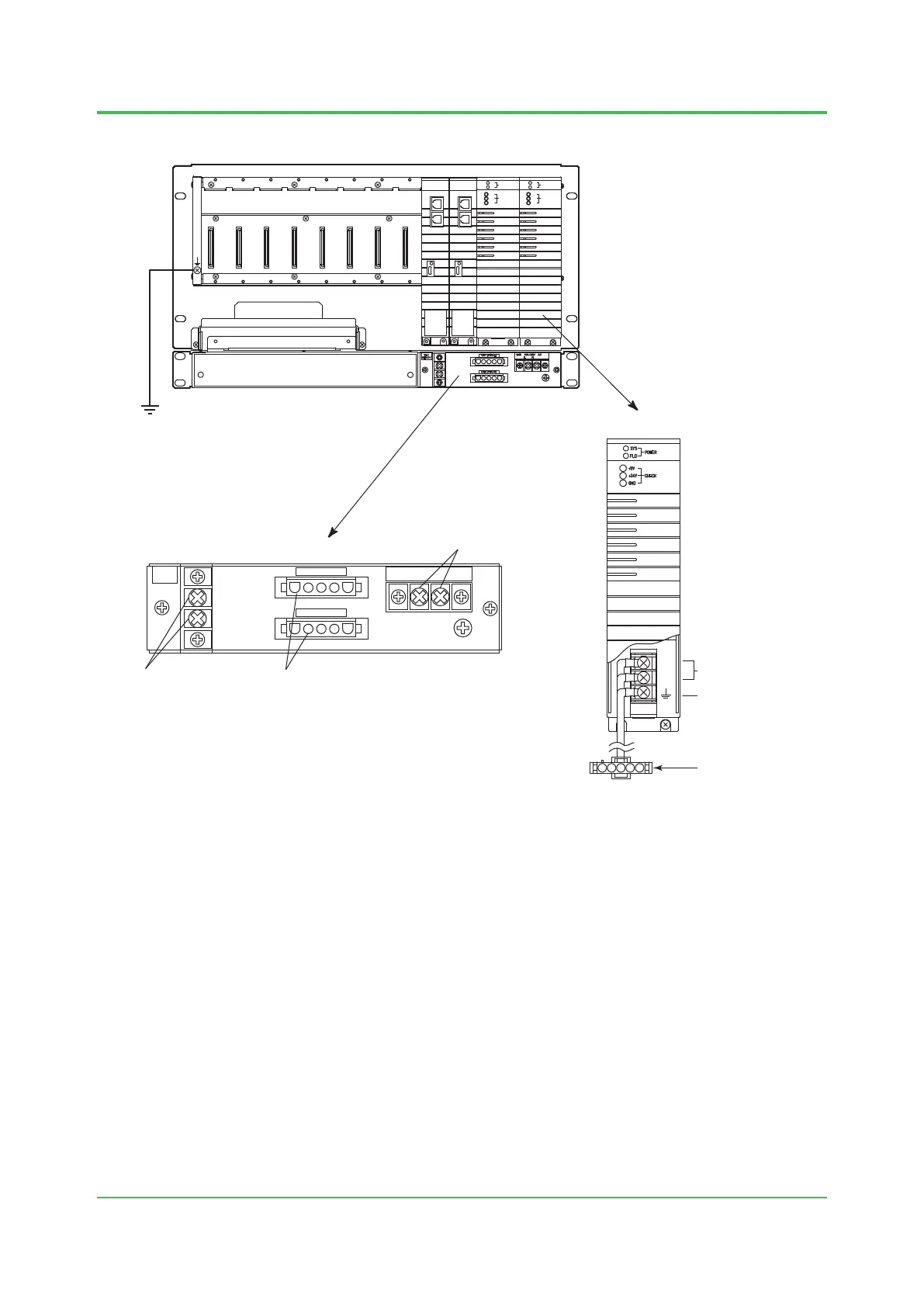

Figure A2FV50S/A2FV50D Power Cable Connections
Oct.5, 2018-00
