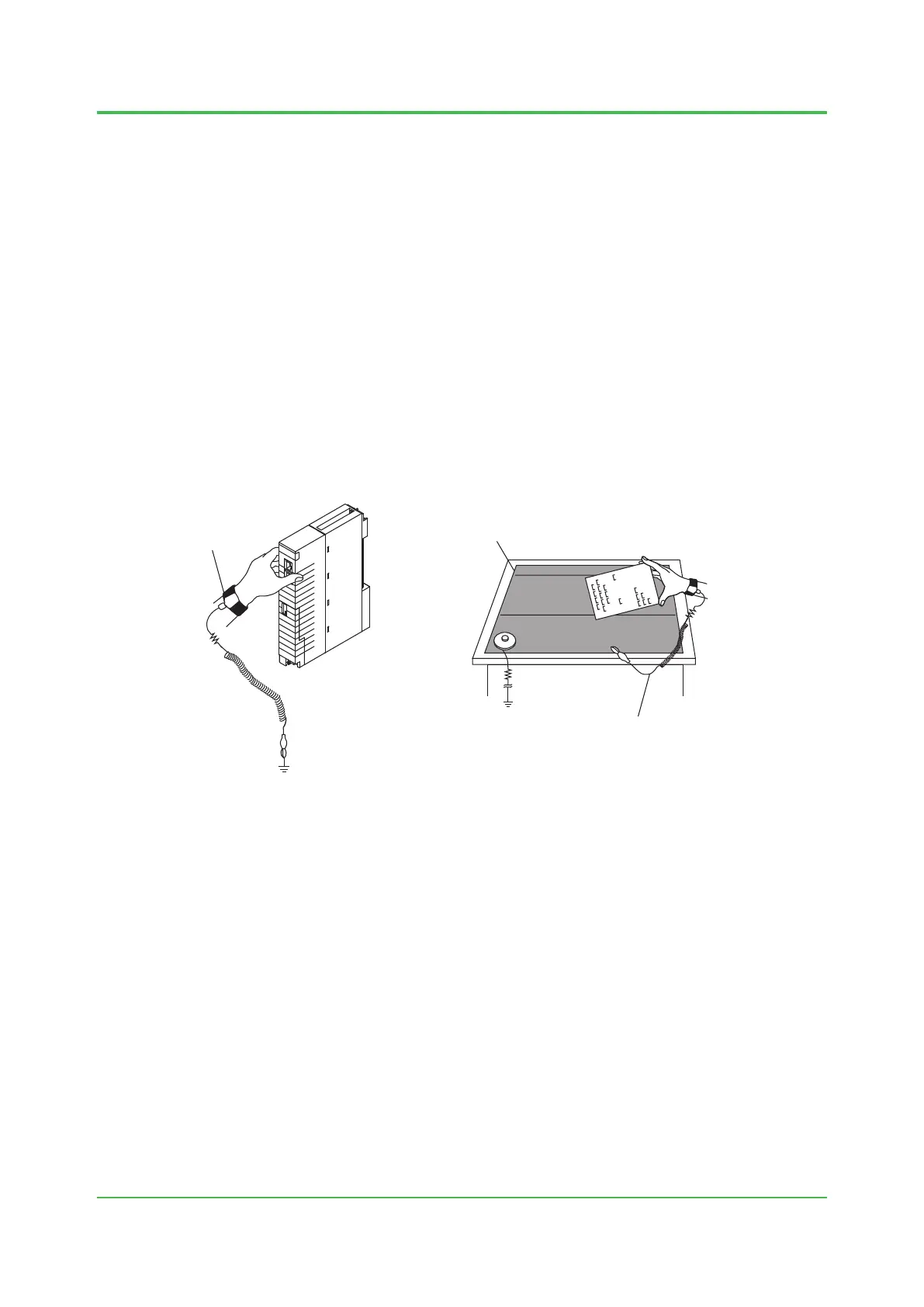

1. System Installation Requirements
1-25
TI 33Q01J10-01E
Grounding Side-by-side Cabinets
When cabinets/console type HIS are installed side-by-side, their grounding is electrically
combined. Use ground cables of at least 5.5 mm
2
for intercabinet connections.
G
Cabinet
/Console Type
HIS
G
Cabinet
/Console Type
HIS
G
Cabinet
/Console Type
HIS
G
Cabinet
/Console Type
HIS
In same control room
100 ohms or less
Ground bus
F010407.ai
Figure Grounding Side-by-side Cabinets
Nov. 20, 2003-00
To Next Page
