3. Cabling
3-12
TI 33J01J10-01EN
n Conduit Power-cabling
Conduit cabling using cable glands is recommended to lay a power cable for the cabinet and
weight on power connection terminal.
The console type HIS, or cabinet, has a conduit hole in the bottom plate directly below the
Blank plate (not needed after cabling)
Bottom plate
Conduit hole
Cable gland
(clamps cable to tighten it)
Power cable

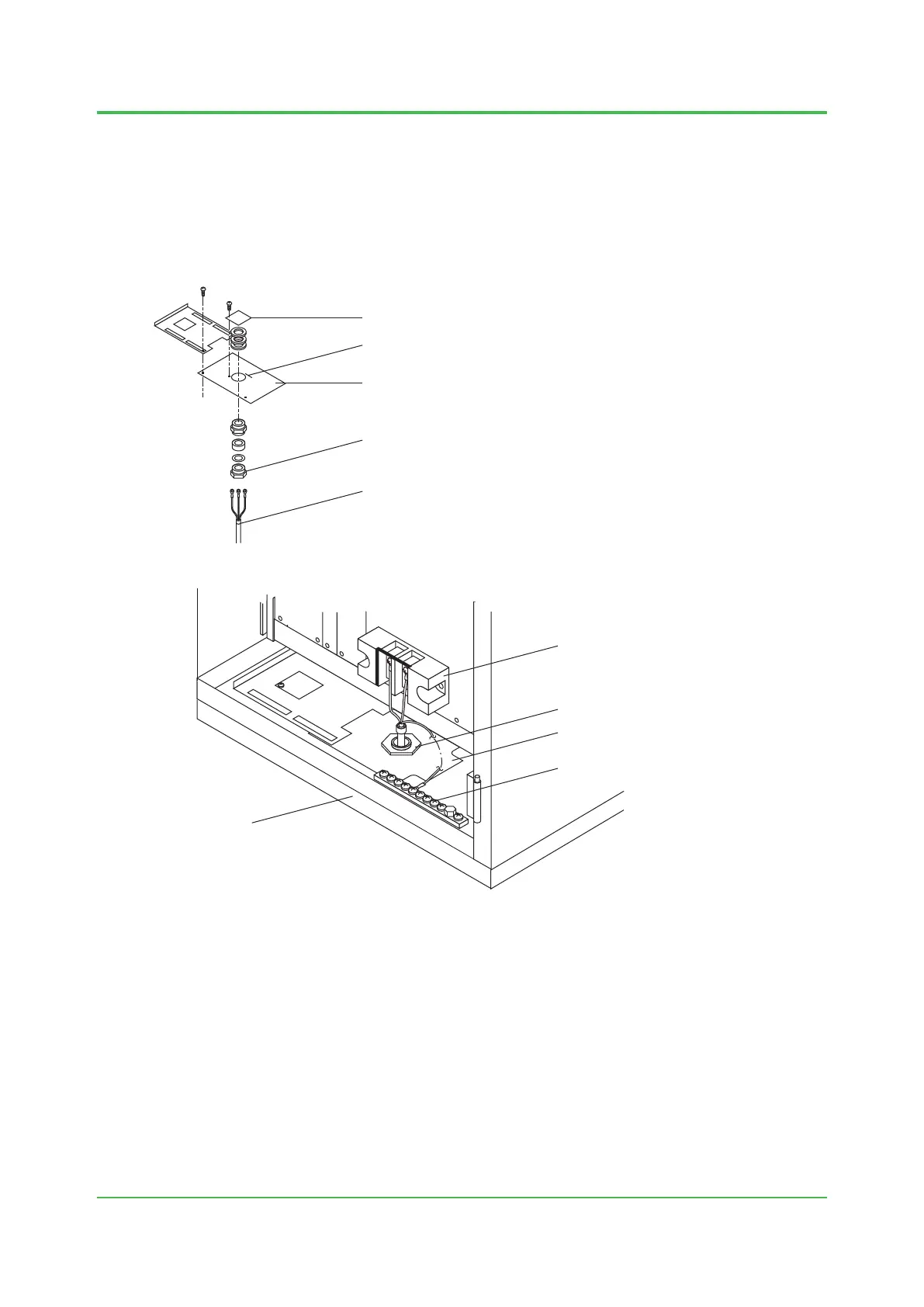

Figure Conduit Hole & Cable Gland
F030209.ai
Power input terminal box
Cable gland
Bottom plate
Bottom plate Grounding bar
for protective grounding
Channel base
Figure Conduit Cabling
Conduit cabling is also recommended for the 19-inch rack-mount equipment, laying a power
cable through a conduit hole where the cable enters the metallic cabinet.
June 30, 2015-00
To Next Page
