4. Installation Specifications
4-8
TI 33Q01J10-01E
Maximum Power Consumption of RIO
Table Max. Power Consumption of RIO (1/2)
Module Name
Max. Power
Consumption
5 V DC (A)
Analog I/O modules
AAM10 Current/voltage input module (simplified) 0.25
AAM11 Current/voltage input module 0.3
AAM11B Current/voltage input module (for BRAIN type) 0.3
AAM21 mV, thermocouple, resistance temperature detector input module 0.15
AAM21J
mV, thermocouple, resistance temperature detector input module
(for IEC 584-1995, IEC 751-1995)
0.15

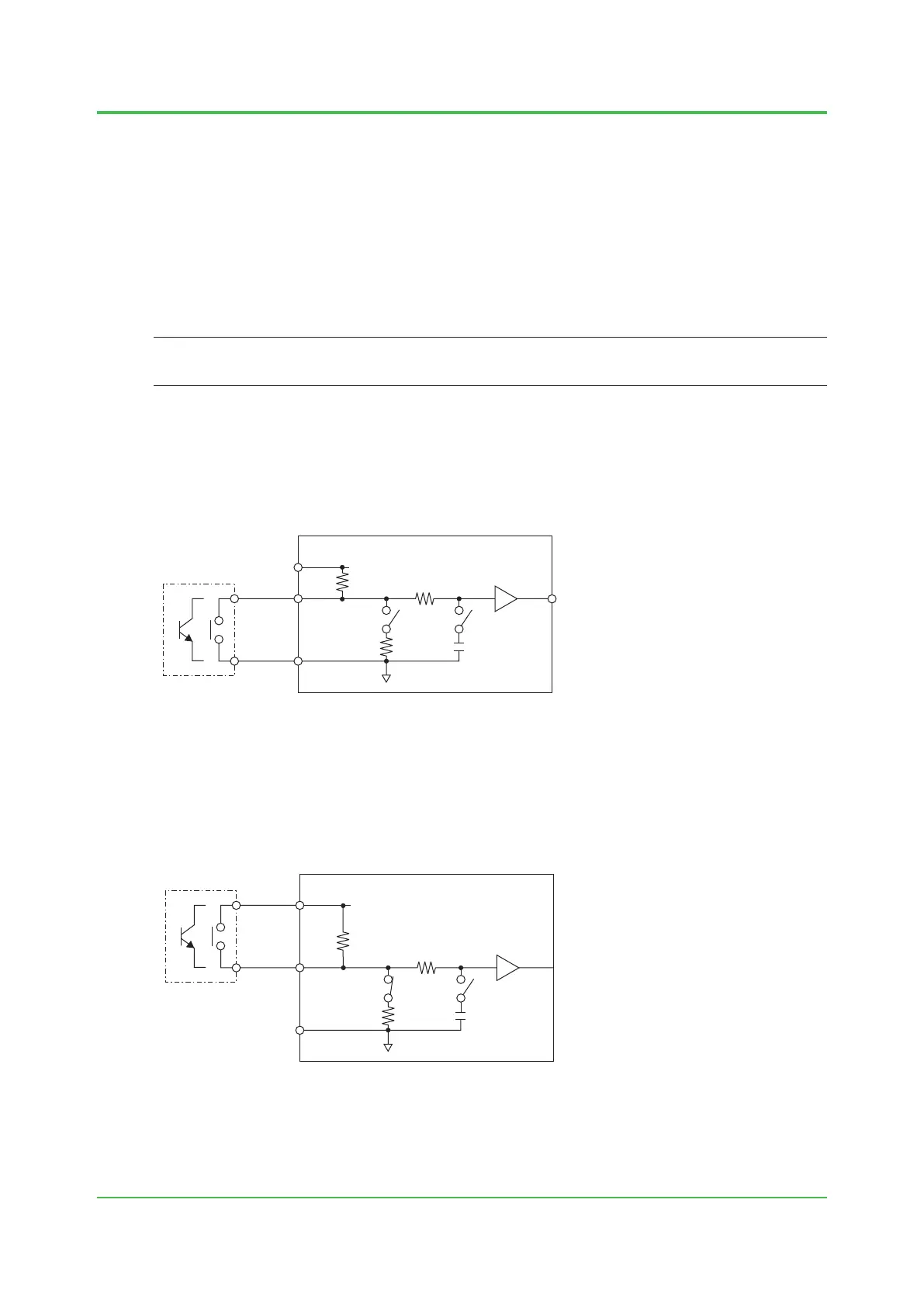

APM11 Pulse input module 0.4
AAM50 Current output module 0.25
AAM51 Current/voltage output module 0.3
AMC80 Multipoint control analog I/O module 2.0
Relay I/O modules
ADM15R Relay input module 2.0
ADM55R Relay output module 2.0
Multiplexer modules
AMM12T Voltage input multiplexer module (16-contact, Terminal type) 0.5
AMM22M mV input multiplexer module (16-contact, Terminal type) 0.5
AMM22T Thermocouple input multiplexer module (16-contact, Terminal type) 0.5
AMM22TJ Thermocouple input multiplexer module (16-contact, Terminal type, For IEC 584-1995) 0.5
AMM32T Resistance temperature detector input multiplexer module (16-contact, Terminal type) 0.5
AMM32TJ
Resistance temperature detector input multiplexer module
(16-contact, Terminal type, for IEC 751-1995)
0.5
AMM42T 2-wire transmitter input multiplexer module (16-contact, Terminal type) 4.0
AMM52T Current output multiplexer module (16-contact, Terminal type) 4.0
AMM12C Voltage input multiplexer module (connector-type) 0.5
AMM22C mV input multiplexer module (connector-type) 0.5
AMM25C Thermocouple input multiplexer module (15-contact, with RJC input port) 0.5
AMM32C Thermocouple input multiplexer module (connector-type) 0.5
AMM32CJ Thermocouple input multiplexer module (connector-type, for IEC 751-1995) 0.5
