n ESB Bus
The following is an example of connecting an ESB bus.
Either ESB bus branching connector or the branching connector that has a built-in ESB bus
terminator must be mounted to SB401 installed in ESB bus node unit. If a node unit is connected
next, select ESB bus branching connector. If the node unit is the last one, select the branching
connector that has a built-in ESB bus terminator.
Connector Unit
for ESB bus
(S9562FA)
ANB10D
Connector Unit with
terminator for ESB bus
(S9564FA)
SB401+
S9562FA
SB401+
S9562FA
Bus2
to next node unit
Bus1
ESB bus cable (YCB301)
Screw tightening torque
0.291±0.049 N•m
Bus1 Bus2
ESB bus (duplexed)
(connected to Bus1 if single with AFV30D)
AFV30/A2FV50/A2FV70
ESB bus coupler module
(EC401)
TM1
READY
FUSE RL1
CN1 (PSU-L)
TM2 100-120V AC ,
L N
CN2 (PSU-R)
F030910.ai

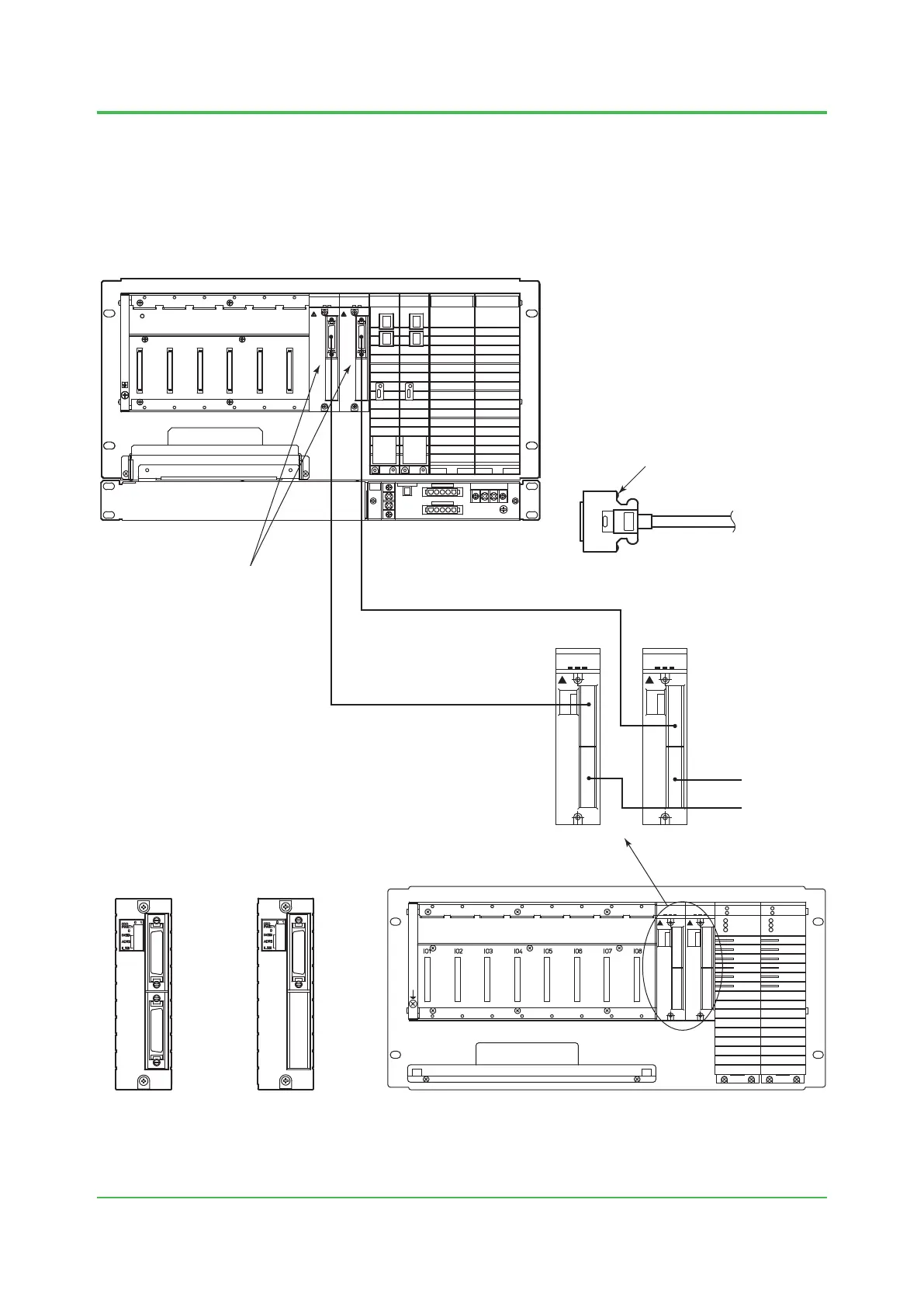

Figure ESB bus Connection (Example of FIO Node Expansion /N-IO Communication Node Expansion)
Oct. 5, 2018-00
