3. Cabling
3-84
TI 33J01J10-01EN

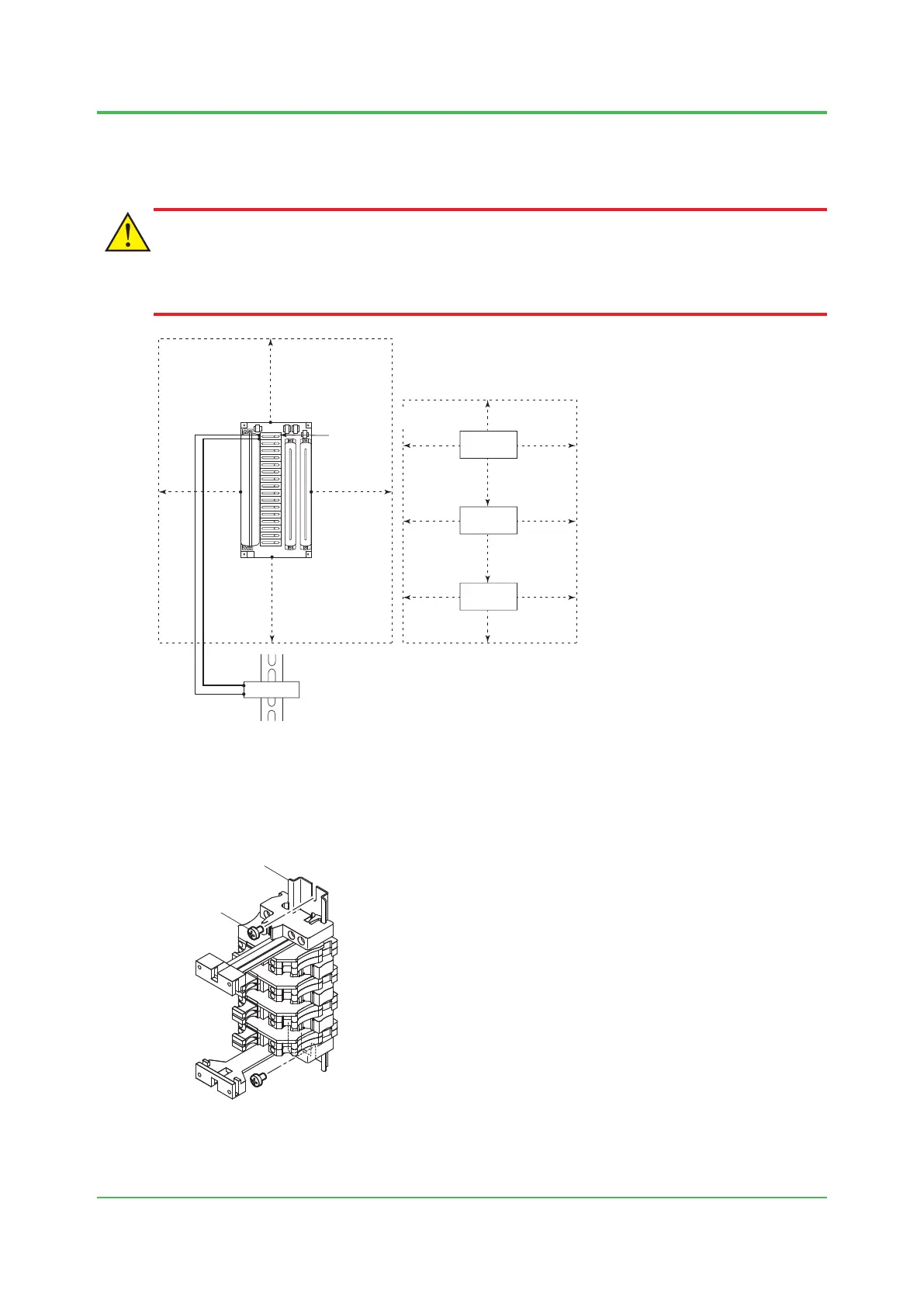

Installation and wiring for the shunt resistor unit
Install A2EXR001 at least 200 mm away from edge of the IOBP.
A2EXR001 should be installed with the distance of 30mm or more from other heat source.
CAUTION
Handle an shunt resistor module in A2EXR001 with care as it may become high in temperature.

F030711.ai
At least 200 mm from
edge of IOBP
A2SAP105
Terminal block
with resistor
IOBP
INC
IND
Other heat source
A2EXR001
A2EXR001
A2EXR001
A2EXR001
At least 30 mm from
edge of A2EXR001
Figure Distance to Separate A2EXR001 and IOBP
Installing the shunt resistor unit

cabinet.
F030830.ai
DIN rail
M4 screw
Figure Installing the shunt resistor unit on the wall

The M4 screws are accessories.
Oct. 5, 2018-00
