n Tools and Parts Required for Joining Cabinets
Connecting kit to install cabinets side by side. Table lists those parts needed to connect two
cabinets together.
- AKT211: Connection kit for Cabinet
Table Joining Parts and Tools (required per additional station)
No. Names Part numbers Quantity
a  – 4
b  – 4
c  – 4
d Hex hole bolt (M10) – (Cabinet accessory) 8
e Bolt (M8) Y9820NS 8
f Toothed (serrated) washer (M8)  16
g Nut (M8) Y9801BS 8
h L-shaped hex wrench S9103PB 2
 
Bolt
(Y9820NS)
Toothed washer
(Y9801WL)
Nut
(Y9801BS)
L-shaped hex wrench
(S9103PB)
F020510.ai

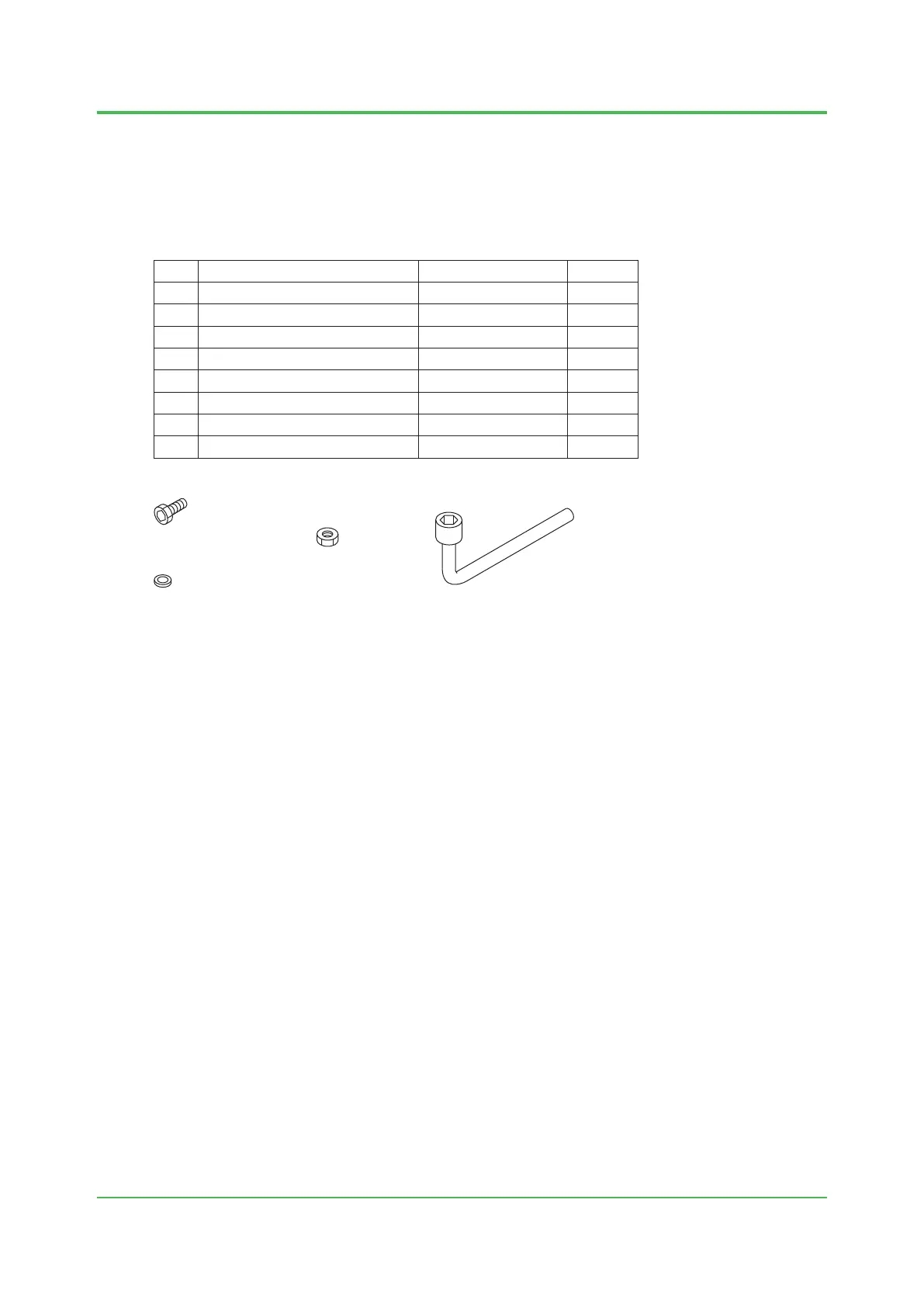

Figure Cabinet Connecting Parts
