YOKOGAWA EJA210E User Manual

<6. Operation>
50
IM01C25A01-01E
F0606.ai
screw
push
push
push
push
push
push
Save/Cancel the value
Save/Cancel the value
Save/Cancel the value
Save/Cancel the value
Save/Cancel the value
Save/Cancel the value
Save/Cancel the value
Save/Cancel the value
Save/Cancel the value
6. Output Mode
2. Press Unit
1. Tag Number
*
*
*
*
*
*
*
3. Press LRV
4. Press URV
7. Display Out1
8. LRV-Apply Press
9. URV-Apply Press
5. Damping Time
Select Output mode
Edit Press unit
Select Tag number
Edit Press LRV
Edit Press URV
Edit Display Out1
Set LRV
Set URV
Edit Damping time
Process
Measurement
Display
Zero adjustment
Process
Measurement
Display
8, 9 : Re-range by applying actual pressure
10. Device Information
Activate LPS mode
*: Notethattheabove1to7parametercongurationsareavailablewiththesoftwarerevision(SOFTREV)2.03orlater.
Softwarerevisioncanbecheckedviaaeldcommunicator(HART/BRAIN)orDTM.PleaserefertoIM01C25T01forHART
parameter“Softwarerev”andIM01C25T03forBRAIN“SOFTREV”.

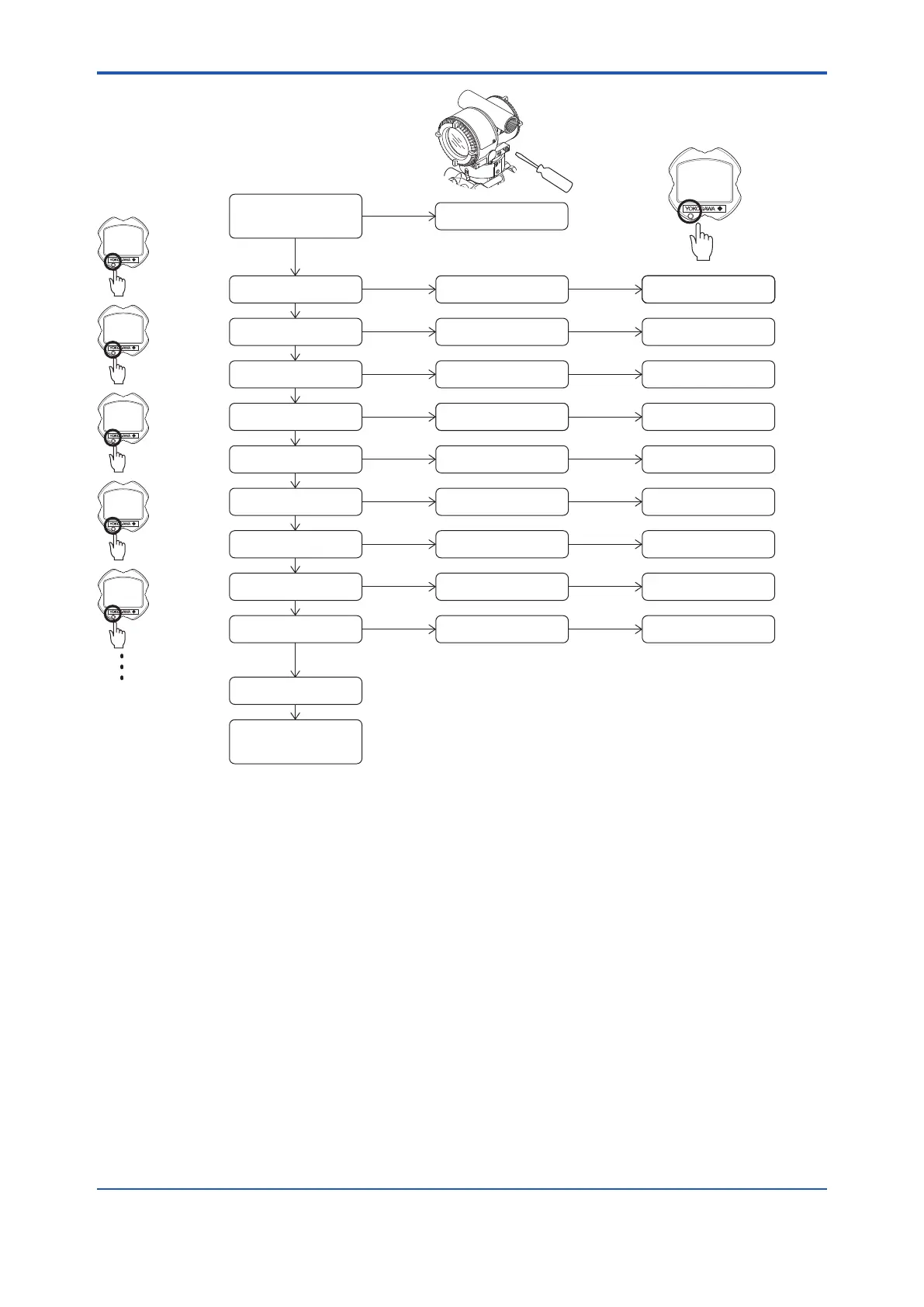

Figure 6.5
