<1. Overview>
1-5
IM 11M10A01-01E
Sensor
3000±150
2000±100
ø4±0.5
ø8±0.5
(5150)
(150)
(35)
G3/8
(26)
(92)(16.5)(45)
50
Extension cable
(Part no. K9424CA)
Sensor Assembly
(Part no. K9424BA)
Nipple
(Part no. L9811LA)
Caution : Sensor is HOT
Unit: mm
Max temp. 150°C when metal nipple
(option code "/S" or P/N K9424DB) is used.
Temp. 70°C max.
Temp. 250°C max.
*
*:
Temp. 70°C max.

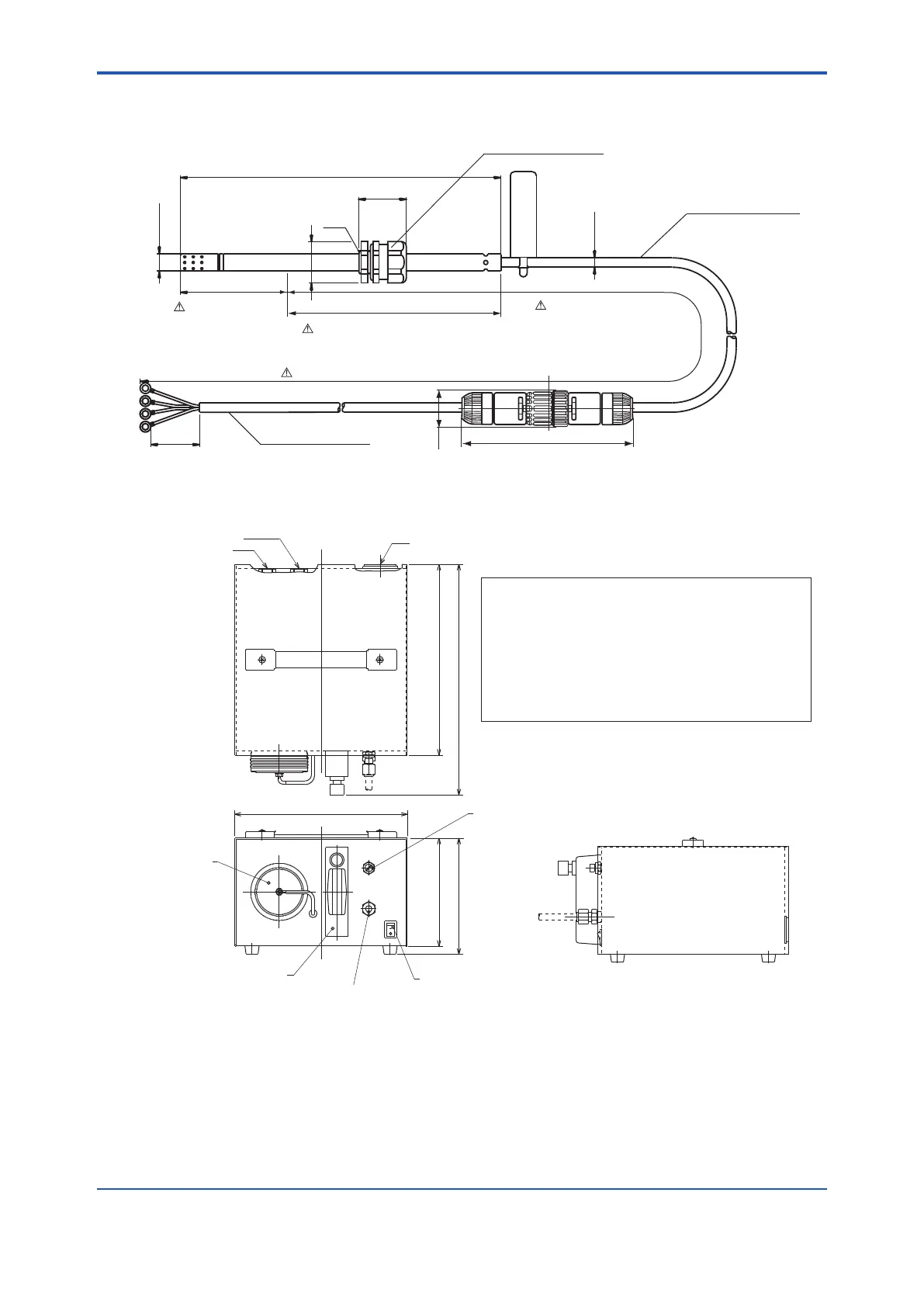

Figure1.2 Sensordimensions
Sample outlet (Rc1/4)
Sample inlet (Rc1/4)
(220)
136( )
146( ) 290( )
240( )
Power line connector
Needle valve
Activated
carbon filters
Flowmeter
Power line switch
Connector to joint sensor
Sampling Conditions
• Pressure at sampling point : 1013 ± 40 hPa
• Sample gas flow rate : 500 ± 100 ml/min
• Pressure at sample outlet : 1013 ± 40 hPa
• Gas temperature : 50°C max.
• Organic solvent content : ppm to a few percentage
• Dust content : 5 mg/Nm max.
• Power supply : 100 V, 50/60 Hz
• Piping connection : Rc1/4
3
Figure1.3 Samplingunit
