2.7 CalibrationKit(Optional)
ThecalibrationkitfortheOX100oxygenanalyzercomprisesastandardgascylinderand
pressure regulating valve to supply standard gas for calibration, when necessary.
Standard
Gas
OX100 Sensor
K9424JD
(255)
(310)
(90)
∅75
Pressure
Gauge
Gas Vent Tubing
Needle Valve Assembly
Needle Valve Assembly, with Pressure Reducing Valve
and Fixed Throttle
Rc1/8 (Nominal diameter of piping
connection for K9424JD)
Standard Gas Cylinder
Standard Calibration
Gas (6 bottles/box)
K9424JC
Approx. 340
Approx. 180
Part Number Specications
K9424GA Sampling unit
K9424JA Calibrationkit:1000ppm,6cylinders(1L)+needlevalveassembly,withowadjustment
K9424JB Calibrationkit:1000ppm,6cylinders(1L)+needlevalveassembly,withoutowadjustment
K9424JR Calibrationkit:10000ppm,6cylinders(1L)+needlevalveassembly,withowadjustment
K9424JS Calibrationkit:10000ppm,6cylinders(1L)+needlevalveassembly,withoutowadjustment

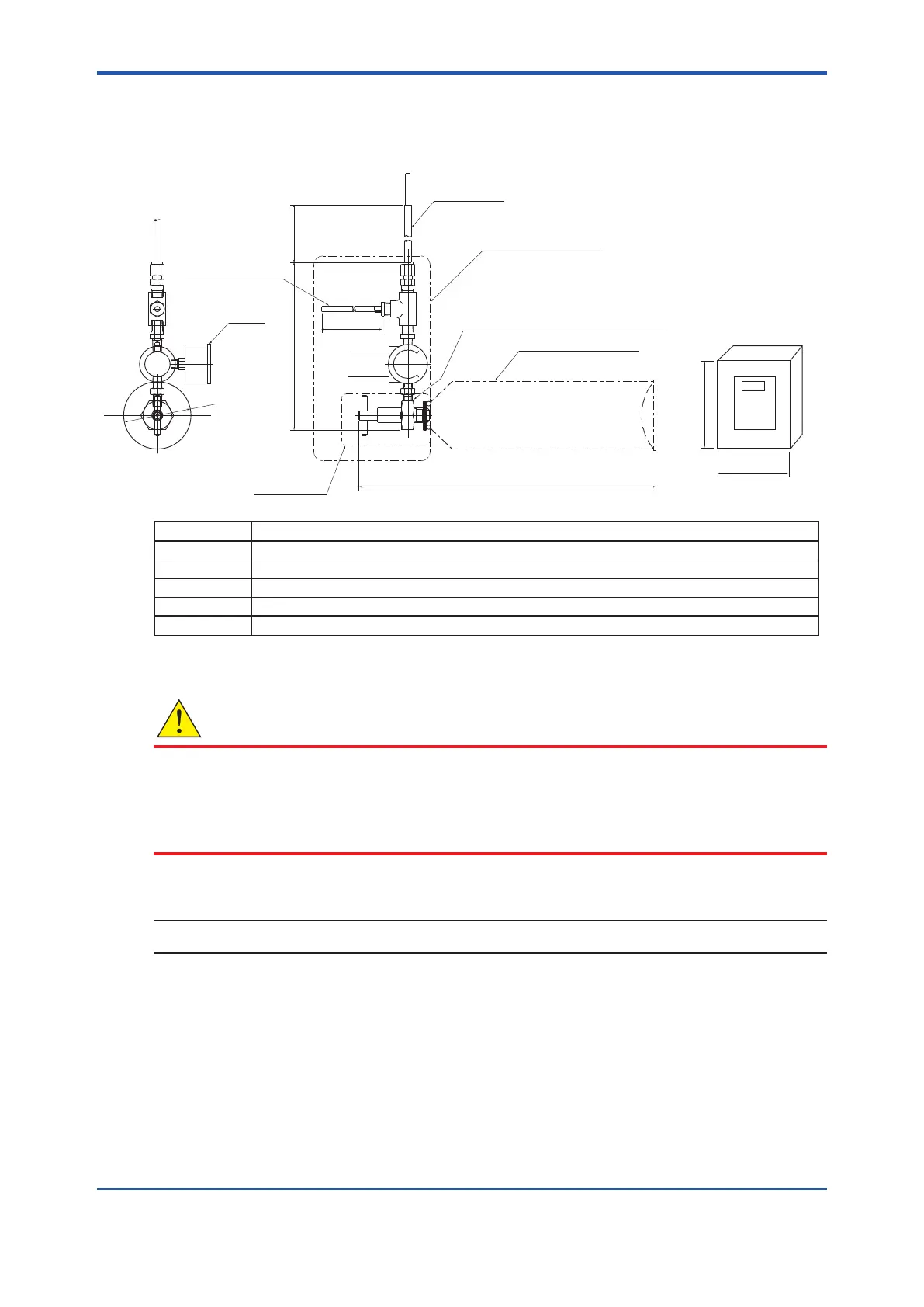

Figure2.10 CalibrationKit
CAUTION
Shelf life of gas cylinder
Theshelflifeofacalibrationgasshallbeoneyearfromthemanufacturingdatespeciedonthe
label of the cylinder. Yokogawa shall not guarantee accuracy of the equipment, if it is calibrated
with an expired calibration gas.
NOTE
Calibration gases are not available from Yokogawa. Consult with local suppliers.
