YOKOGAWA OX100 - External Dimensions

<1. Overview>
1-4
IM 11M10A01-01E

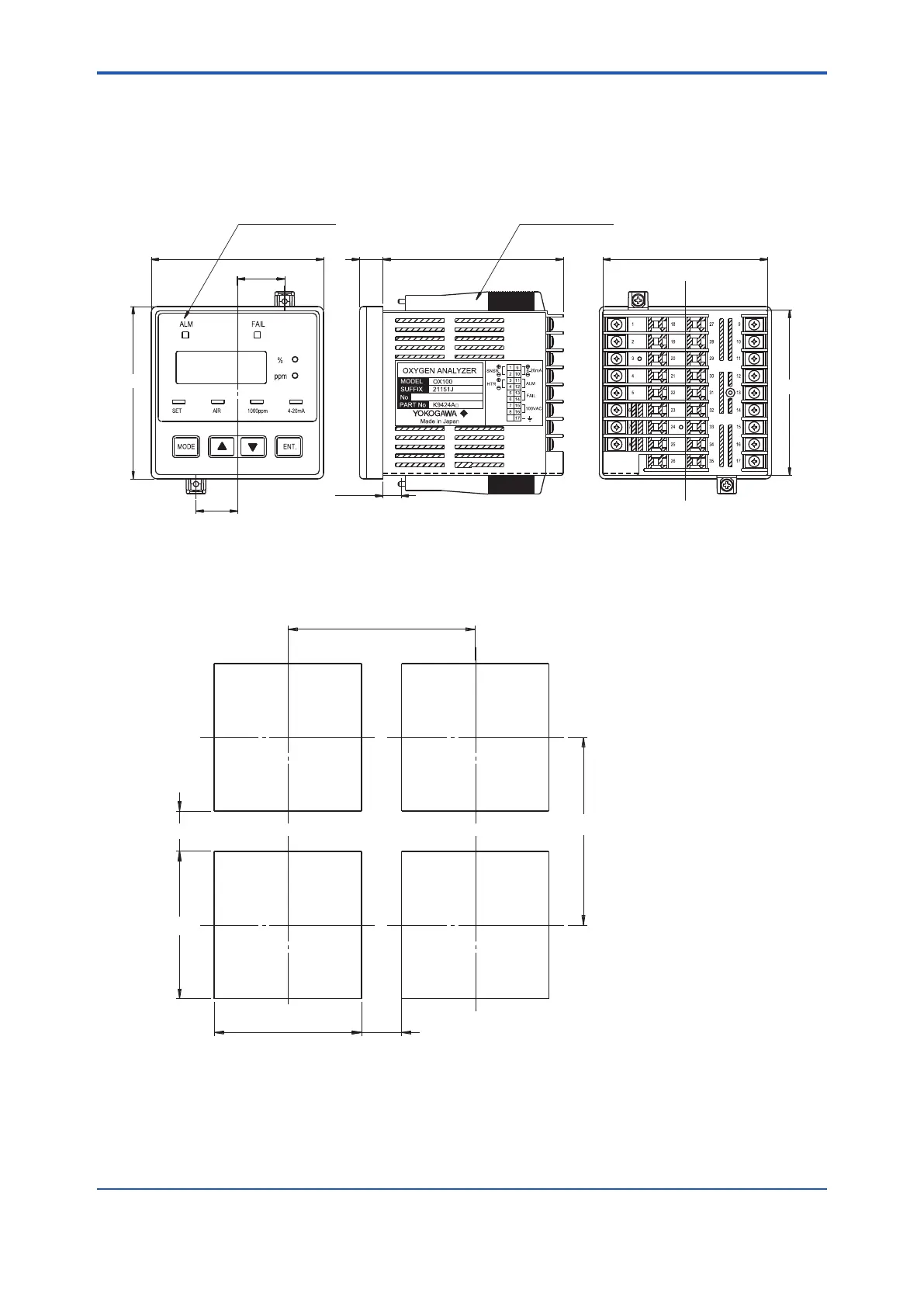

1.4 ExternalDimensions
InstrumentBody
96
26.2
23
13 100 91.6
96
91.6
Body only
(Part no. K9424A□)
1 to 10
Bracket
(Part no. B9877BA)
(Panel thickness)
Unit: mm
Fig.1.1 ExternalDimensionsofInstrument
Panel Dimensions
92
+0.8
0
92
+0.8
0
(25)
(25)
Minimum 117
Minimum 117
Unit: mm
4th Edition : Oct. 23, 2019-00
