YOKOGAWA OX100 User Manual

Appendix
App.-5
IM 11M10A01-01E
uAppendix2.CalibrationGasKits
 K9424JA,K9424JB,K9424JR,K9424JSCalibrationGasKitsfor
OX100/102
ThecalibrationgaskitsaredesignedforcalibrationoftheOX100SeriesOxygenAnalyzers.
Thekitcomprisesacalibrationgas(lledpressureof0.7MPa,6one-littercylinders)anda
needle valve assembly. The calibration gas is available in two types: 900 to 1100 ppm O
2
and
8500 to 9500 ppm O
2
(N
2
based). Prepare either one according to your application.
1.ConnectingtheNeedleValveAssemblytothe
Gas Cylinder
Take the following steps to connect the gas cylinder to the needle valve assembly.

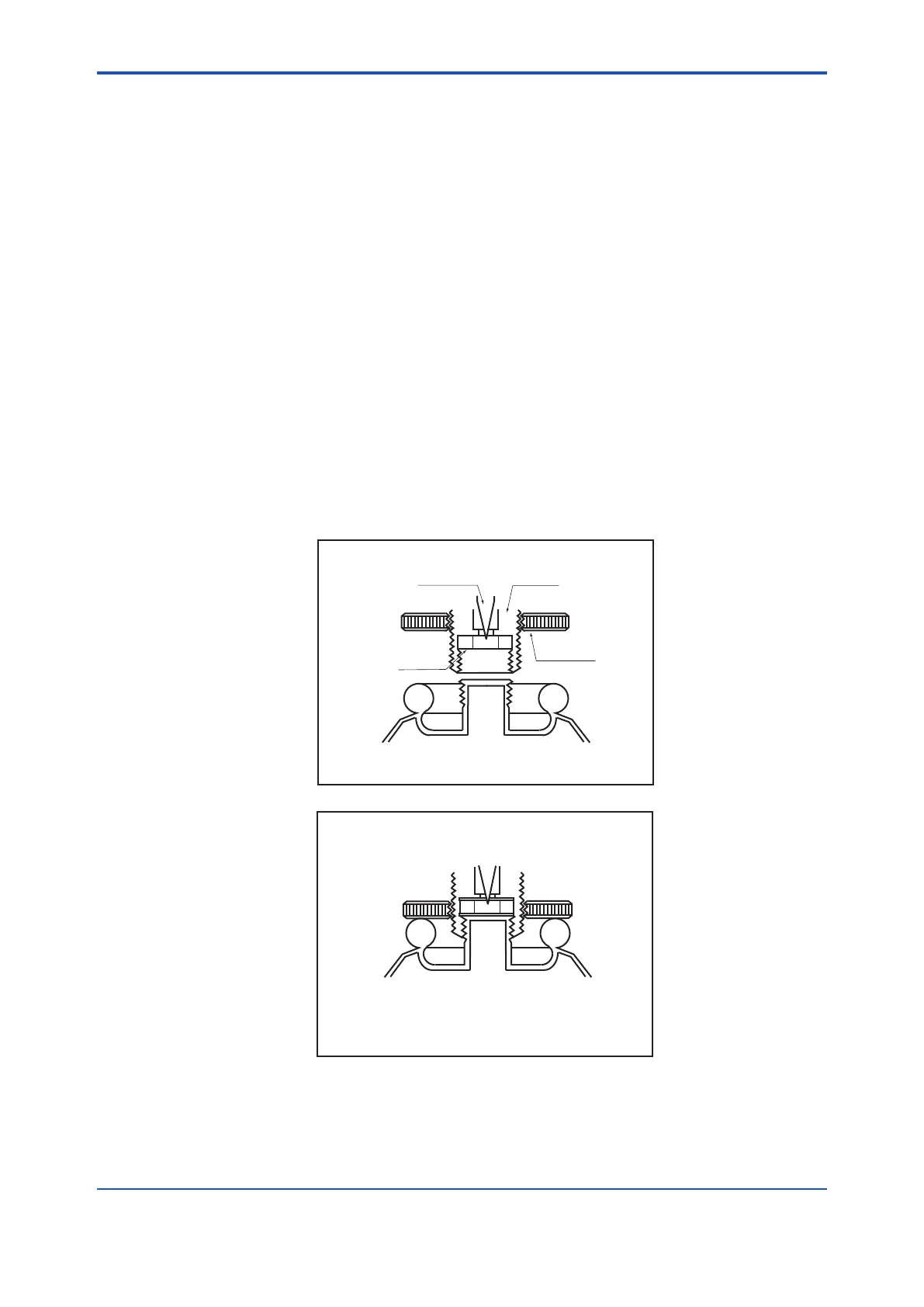

(1) Turn the handle of the needle valve counterclockwise to pull the needle tip inside the gasket
to the position shown in Figure 1.
(2) Loosen the locknut of the needle valve. Screw the valve into the mouth of the gas cylinder
inaclockwisedirectionwithngersuntilitmeetsresistancebyngerandthenscrewthe
locknut down (See Figure 2).
Figure 1
AP201E-1.eps
Needle
Valve
Packing
Lock-nut
Container
AP201E-2.eps
Figure 2
4th Edition : Oct. 23, 2019-00
