<2. Installation >
2-9
IM 11M10A01-01E
Disk filter : K9424GQ
Sample Outlet, Rc1/4
Power Connector
Sampling Conditions
• Pressure at sampling point : 1013 ± 40 hPa
• Sample gas flow rate : 500 ± 100 ml/min
• Pressure at sample outlet : 1013 ± 40 hPa
• Gas temperature : 50°C max.
• Organic solvent content : ppm to a few percentage
• Dust content : 5 mg/Nm max.
• Power supply : 100 V, 50/60 Hz
• Piping connection : Rc1/4
Flowmeter
Sensor Connector
(for 8 mm O.D.)
Needle Valve
OX100 Sensor
Activated
Carbon Filter
Switch
3
Sample Inlet, Rc1/4
: Rc 1/4
Sample Gas
Inlet
Sample Gas
Outlet
Disk Filter
(K9424GQ)
Pump
Needle Valve
Activated Carbon Filter
Felt Filter
(K9346WH)
Switching Power Supply
Flowmeter,
500 ml/min
Switch
Power Supply
Sensor
Insertion Port
: Provided by customer
(Stop valves must be installed at the sample gas inlet and outlet.)
CASE

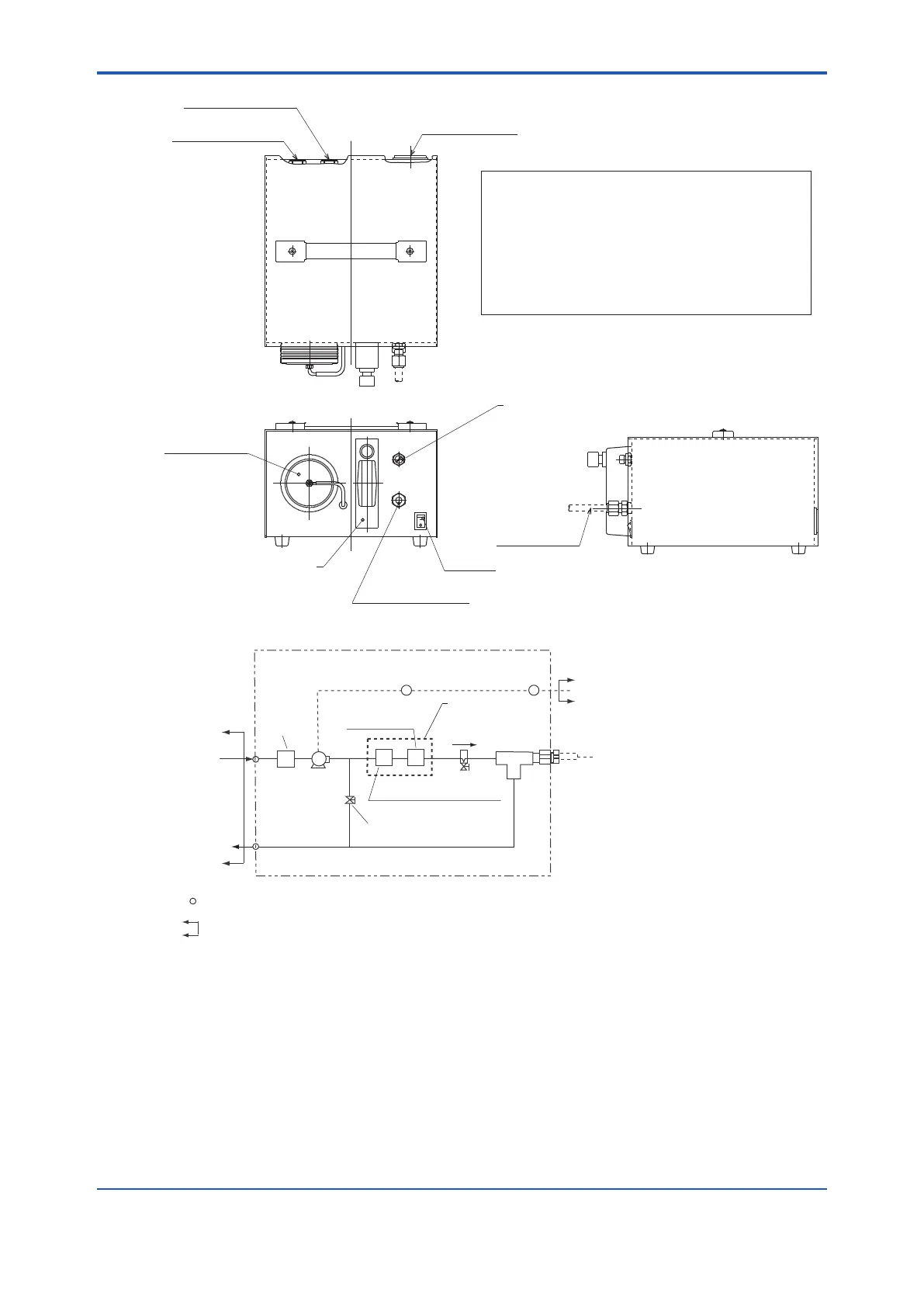

Figure2.9 SamplingUnit(K9424GA,Optional)
4th Edition : Oct. 23, 2019-00
