IM 12B6C2-E-H

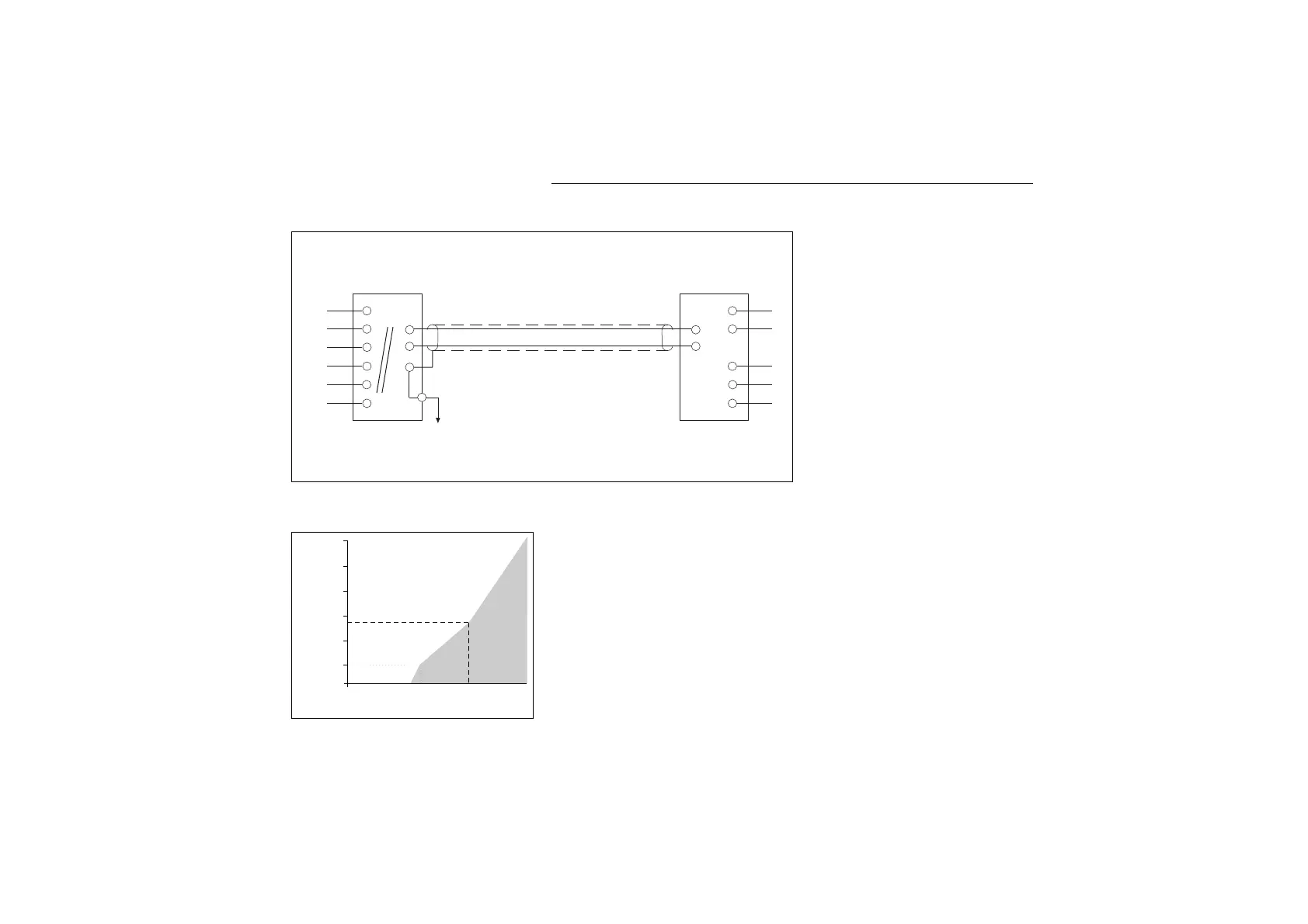

Dependance of load to supply voltage
9
Wiring diagrams for power supply
General purpose design
pH-transmitter
EXA PH200G
Sensor
Distributor
Output
Supply
NOTE:
The outside earth terminal should be connected to site ground by a lar
ge area conductor (e.g. a flat earth strip) for
best protection against inter
fer
ence.
1200
1000
800
600
400
200
0
1718
20
24
40
Ohm
550
Supply voltage (V)
Load resistance (
Ω
)
+
–
+
–
G
12
14
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction
5
Application
5
Required Components for Ph Measurement
5
Identification
5
2 Technical Specifications
6
General Specifications
6
Functional Description
7
3 Installation and Wiring
8
Installation and Dimensions
8
Installation Site
8
Mounting Methods
8
Wiring of Sensors
10
General Precautions
10
Hazardous Areas
10
Liquid Earth
10
Access to Terminal and Cable Entry
10
Connection Diagram for Sensors
11
Wiring of Power Supply
12
General Precautions
12
Hazardous Areas
12
Connection of the Power Supply
12
Switching the Instrument on
12
4 Commissioning
15
Operations Overview
15
Output Range Adjustment
16
Set up the HOLD Function
18
Sensor Selection and Diagnostics
20
Selection of Measurement and Reference
20
Electrode
20
Selecting a Temperature Sensor
20
Off-Line Calibration Checks
20
On-Line Impedance Chacks
21
5 Maintenance
21
Automatic Calibration
22
Manual Calibration
24
Selecting a Value to Display
26
Temperature Compensation
28
Hold Output Function
30
6 Trouble Shooting
32
Introduction
32
Error Messages and Explanation
33
7 Service Mode
34
Introduction
34
Access to Service Settings
35
Temperature Function
36
Temperature Sensors
36
Sensor Checking
37
Display Resolution
38
Signalling of Fail Condition
38
Stabilization Check
38
Auto Return
39
Buffer Tables
39
Temperature Adjustment
40
Manual Adjustment of ITP, Slope and Asymmetry Potential
40
Passwordprotection by Three Digit Code
41
Restore Default Settings
41
8 Classification
42
Cenelec
42
9 Change from Ph to Orp Measurement
44
How to Change from Ph Measurement to
44
ORP Measurement
44
Commissioning the Transmitter
44
Maintenance of the Transmitter
44
Special Features
44
Wiring Diagram
45
Buffer Values
45
Appendix A
46
4
