<7. HART-COMMUNICATION>
7- 12
IM 01R01B02-00E-E 12th edition October 01, 2014 -00
All Rights Reserved. Copyright © 2003, Rota Yokogawa
0
10
20
30
40
50
60
70
80
90
100
110
0510 15 20 25 30
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

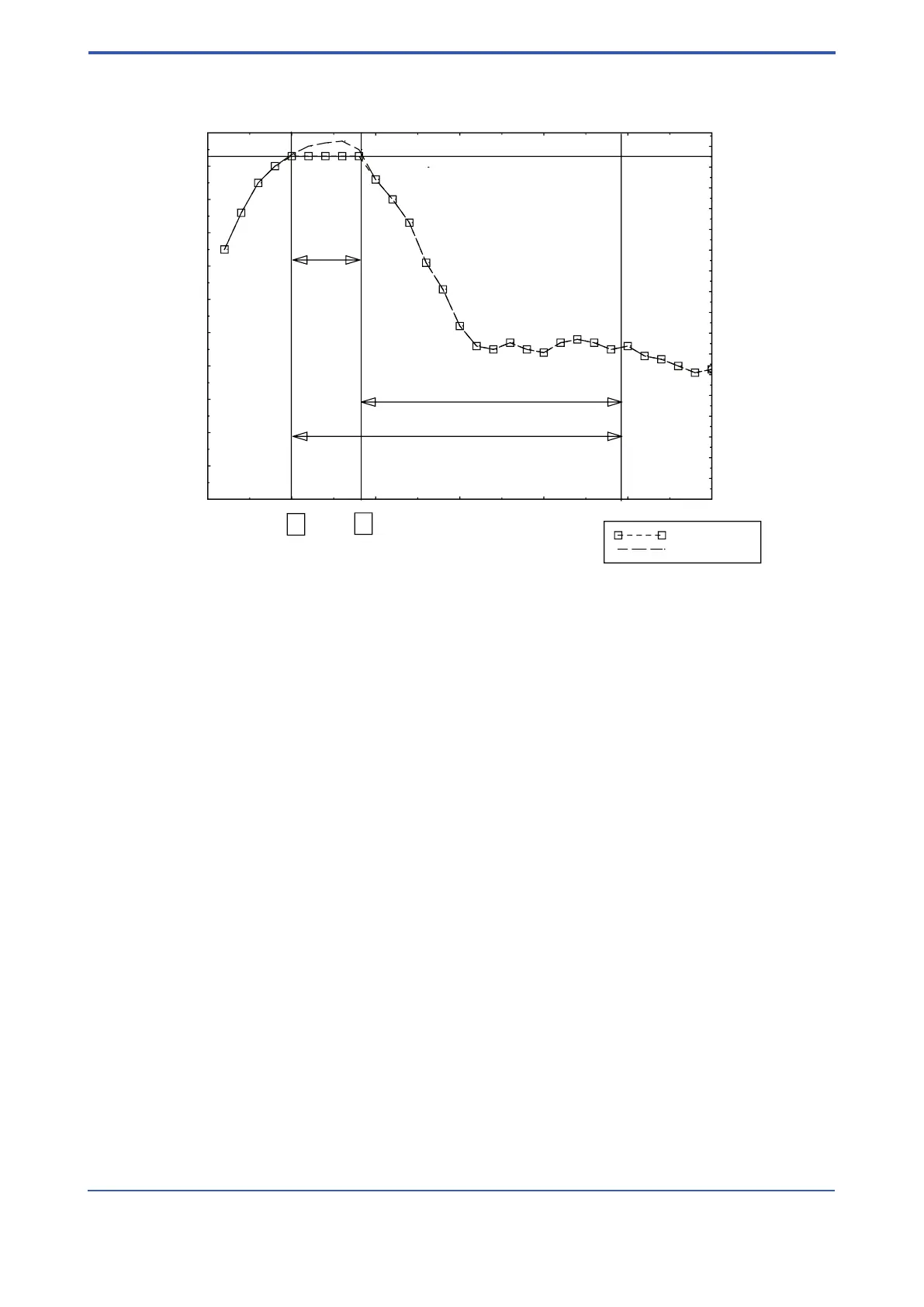

Output Current
Flow Value
hysteresis (> 30 sec)
t2
delta-T2 (day; h; min)
delta-T1 (day; h; min)
Read out
(max. 1
Event)
MAX Value = 103 % (20.5 mA)
t1
Time [min]
Flow [%]
Current [mA]
Flow URV Funktion
Device setup
Diag/Service
Diagnostics
Float blocking
Float blocking ON/OFF Activate or deactivate oat blocking
Set lower limit 5%/15%/30% Set lower limit of supervision range
Set supervise time Turbulent ow
Smooth ow
Start autozero Start
Autozero value Shows autozero value
Detailed description of oat blocking function see chapter 6.2.12.
Device setup
Diag/Service
Power monitoring
Operation time Days Time since last power on.
Hours
Minutes
Oper time shadow Days Time from…
Hours … previous power on…
Minutes … to power off.
Reset power fail Power fail warning is cleared.
Description of power monitoring function:
After power on the minutes are counted in parameter Operation time.
At power off the time from parameter Operation time is stored in parameter Oper time shadow.
After power off/on the power fail warning is set. It can be cleared by Reset power fail.
