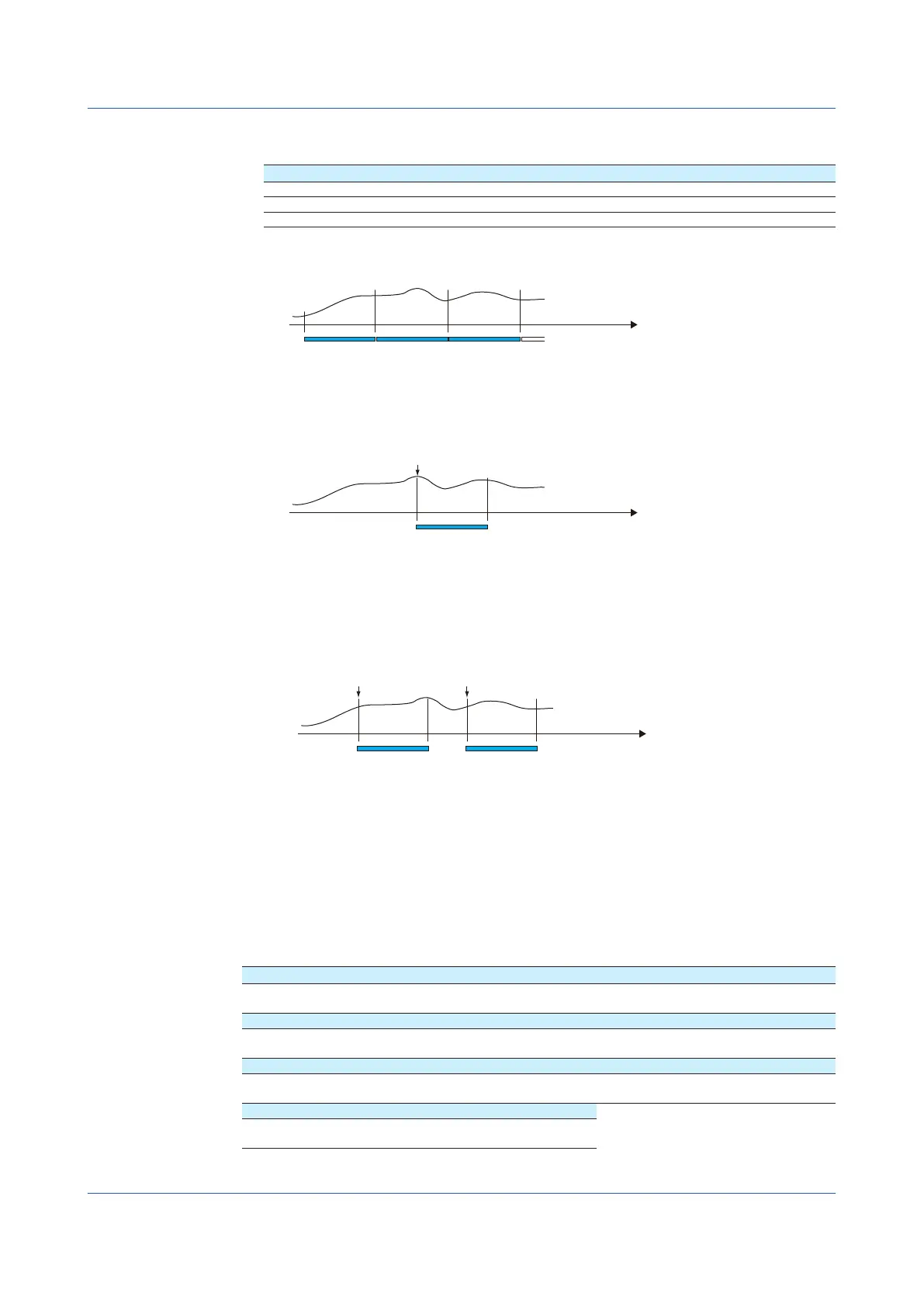

Recording mode
Set the mode for recording event data.
Options Description
Free Records data at all times
Single Records data when the trigger condition is met
Repeat Records data every time the trigger condition is met
• Free
Recording starts when you start it and stops when you stop it.
Time
File File File Adding data
• Single
The GX/GP enters the trigger-wait state when you start recording. After a trigger event
occurs, the GX/GP will record data for the specified time (data length) and stop. From this
point, the GX/GP will not record even if the trigger condition is met.
Time
File
Trigger condition met
• Repeat
The GX/GP enters the trigger-wait state when you start recording. After a trigger event
occurs, the GX/GP will record data for the specified time (data length) and stop. Then,
it enters the trigger-wait state again and repeats recording for the specified time (data
length) every time the trigger condition is met. To stop recording event data, stop the
recording.
Time
File File
Trigger condition met Trigger condition met
Data length
Set the size of recording data per file. Recording data is divided at the specified file size.
The selectable data lengths vary depending on the number of channels to record and the
Recording Interval setting.
A file is also created in the following instances.
• When a file is created manually
• When recording is stopped
• When file creation is executed with the event action function
• After recovering from a power failure
Recording Interval
1
100 ms 200 ms 500 ms 1 s 2 s
Selectable range of data length 10 min to
1 days
10 min to
2 days
10 min to
3 days
10 min to
7 days
10 min to
14 days
Recording Interval
1
5 s 10 s 15 s 20 s 30 s
Selectable range of data length 10 min to
31 days
10 min to
31 days
10 min to
31 days
10 min to
31 days
1 hour to
31 days
Recording Interval
1
1 min 2 min 5 min 10 min 15 min
Selectable range of data length 1 hour to
31 days
1 hour to
31 days
1 hour to
31 days
1 hour to
31 days
1 hour to
31 days
Recording Interval
1
20 min 30 min
Selectable range of data length 1 hour to
31 days
1 hour to
31 days
1 You cannot choose a recording interval that is shorter than the scan interval.
1.9SettingRecordingConditions(Recordingmode,recordinginterval,savinginterval)
