2.4 ExecutingVariousFunctions
This section explains how to execute various functions.
2.4.1 ReleasingAlarmOutput(AlarmACKandindividualalarmACKoperation)
This operation is valid when the GX/GP is configured as follows:
• In System settings, under Alarm basic settings, Indicator’s Hold/Nonhold is set to
Hold.
• Under DO channel settings, Action’s Hold is set to Hold or Relay Action on ACK is set
to Reset
When an alarm acknowledge operation is carried out, the indicators and outputs (relays) of
all activated alarms are cleared.
Procedure
AcknowledgingAllAlarms
When an alarm acknowledge operation is carried out, the indicators and outputs (relays) of
all activated alarms are cleared.
You can carry out this procedure after an alarm occurs.
1 Press MENU.
The menu screen appears.
2 Tap the Alarm icon.
The alarm acknowledge conrmation screen appears.

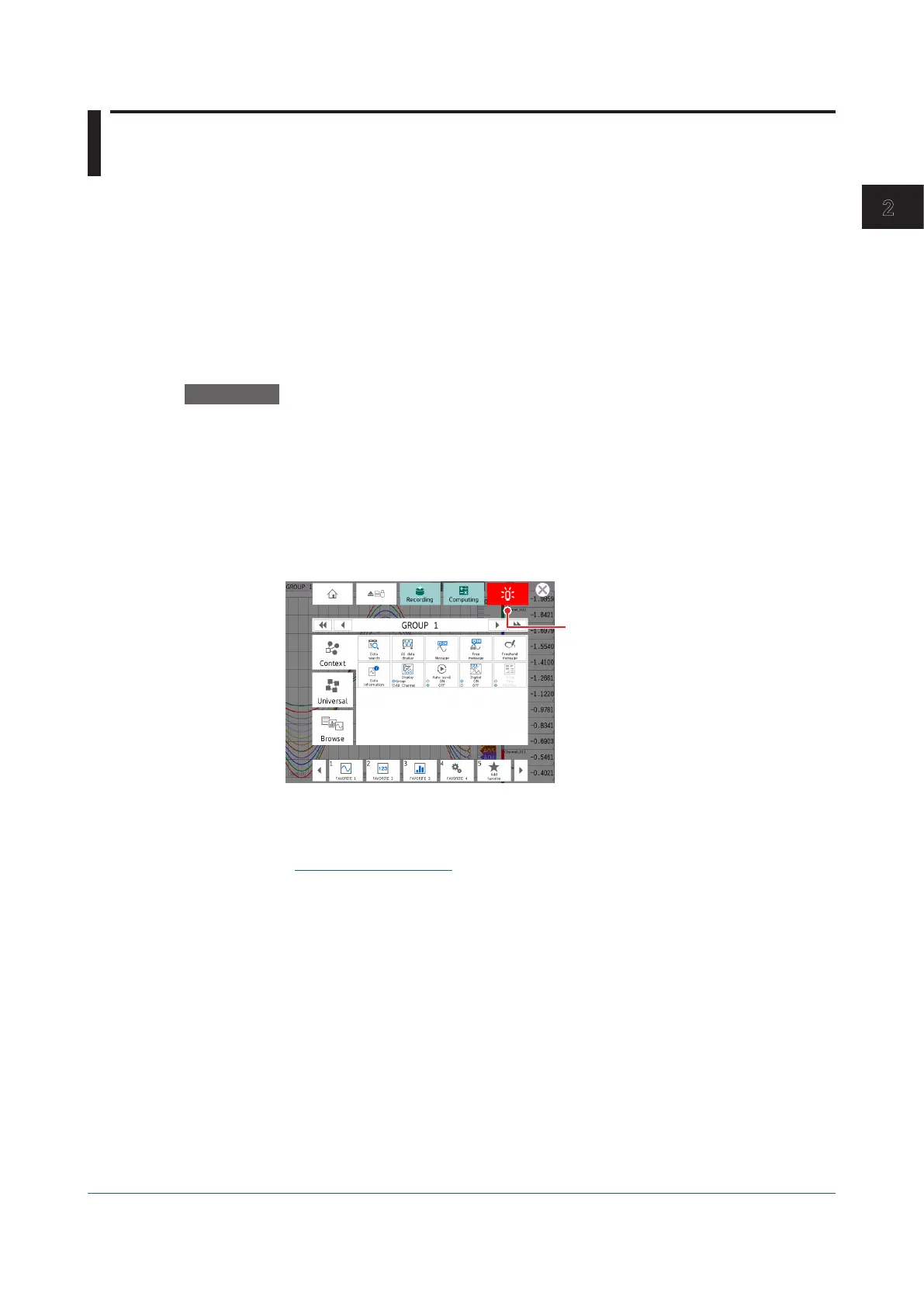

Alarm icon
3 Tap OK.
The alarm output is released.
Operation complete
