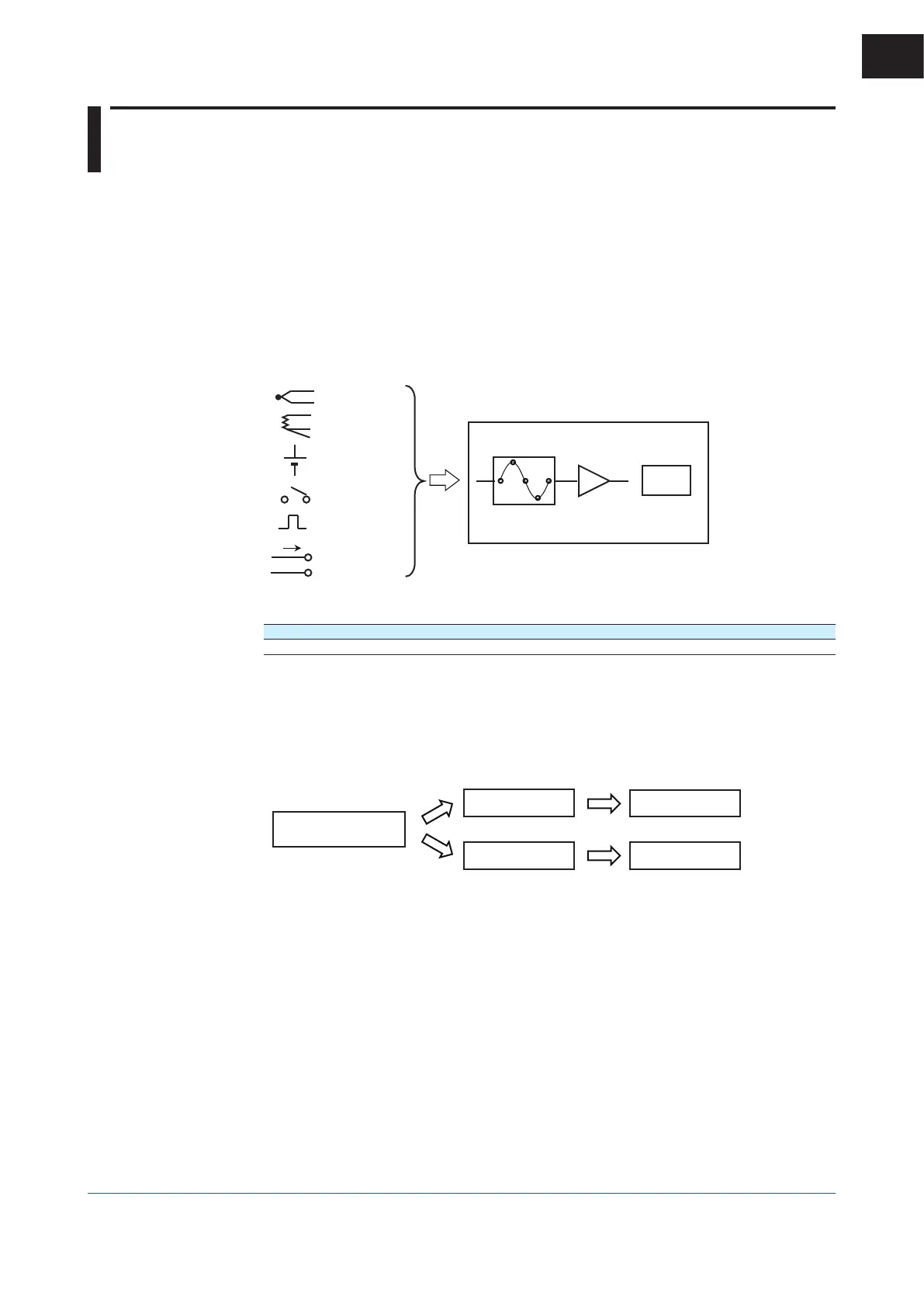

Basic Functions of the GX/GP
The basic functions of the GX/GP includes measurement, recording, display, storage, and
data utilization.
This section provides an overview of each function.
Measurement
The GX/GP can measure signals from thermocouples, RTD sensor input, DC voltage,
On/Off (voltage-free contact, level), and DC current (mA) input. (The input type varies
depending on the module type.)
The GX/GP samples the signals received through the input modules at a specified scan
interval and performs A/D conversion. These values become the measured values of each
channel.
Temperature
(sensor)
DC voltage
Contact
DC current (mA)
I/O module
A/D
conversion
Pulse
I
Sampling
1.23
Measured
value
Input
Related Setup Items
Item Reference
Scan interval →page 1-90
Recording
Data Type
The GX/GP can record two types of measured data: display data and event data.
Data sampled at the scan interval is recorded in the internal memory as measured data for
each specified data type (display data and event data).
Measured value at
each scan interval
Data type
Event data
Display data
Measured data
Measured data
Measured value at each
recording interval
