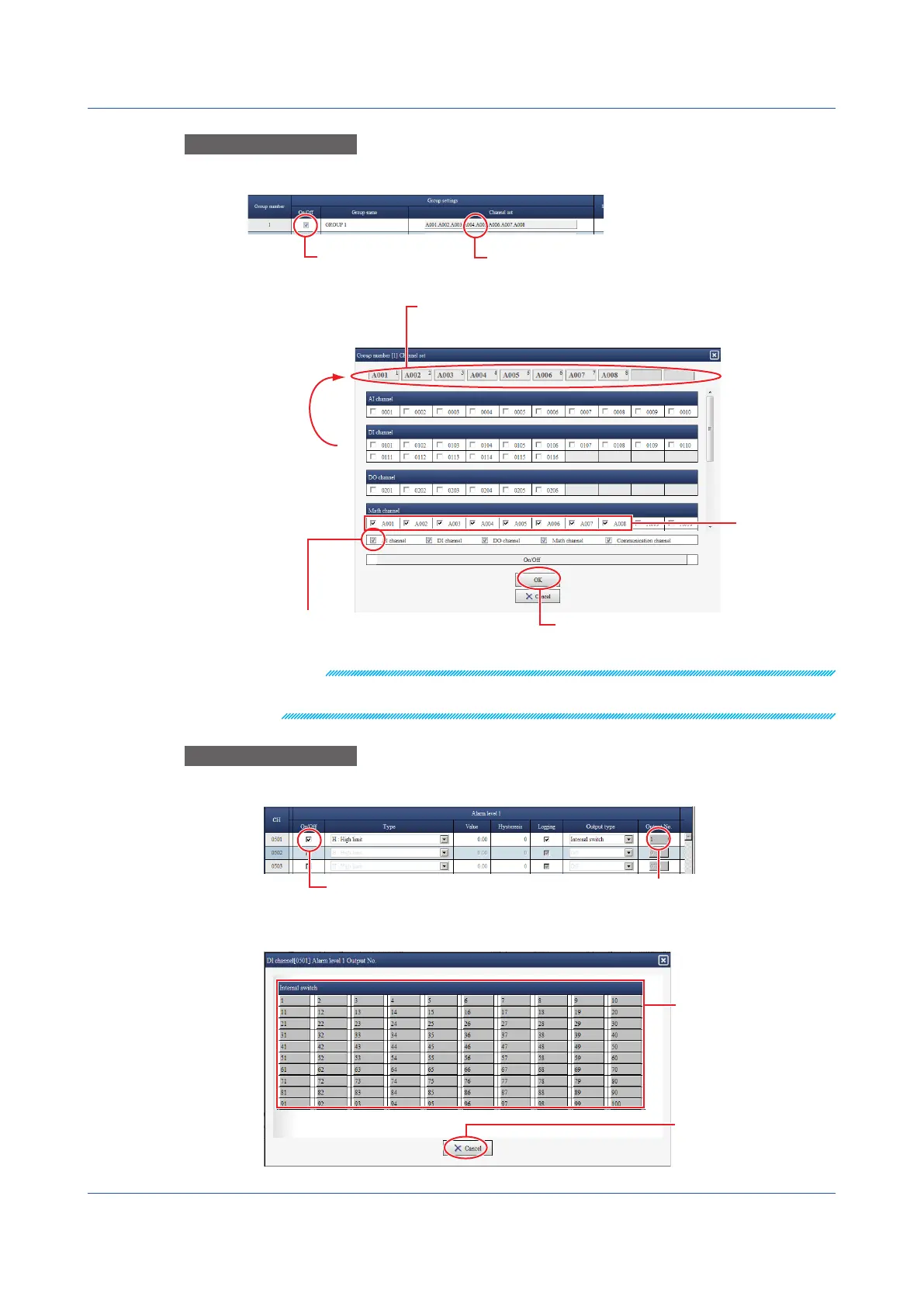

This example shows how to assign channels to group 1 on the screen that appears when
you click Display settings and then Group settings.
Select the check box.
Click to open the group settings dialog box (figure below).
Group settings dialog box
Selected
channels
Show or hide by channel.
Select the
channel check
boxes to add
the channels
to the group.
Click OK to apply the settings
to the configuration screen.
Group configuration channels
You can easily change the display order of channels.
Select a channel, and drag the channel to the appropriate position.
Note
If the maximum number of selectable channels is reached, you will no longer be able to select
additional channels.
OperationExample4
This example shows how to set the alarm output destination on the DI channel settings
screen.
Select the check box.
Click to open the Alarm level 1 Output No.
dialog box (figure below).
Alarm level 1 Output No. dialog box
The internal switch
number that you click is
reflected in the setup
screen and the dialog
box closes.
To not change or set
click Cancel to return.
3.1 Using the Web Application to Change the GX/GP Settings, Monitor Data, and Control the GX/GP (Web server function)
