Isolation
• Insulationresistance:Betweeneachinsulation
terminals,andearth:20MΩorgreaterat500
VDC
• Withstandvoltage:
Betweenthepowerterminalandearth:3000V
ACat50/60Hzforoneminute
 Betweentheinput/outputmodulesandearth:
DependsonthespecicationofI/Omodule.
• Grounding:Besuretosetalowgrounding
resistance.
• Isolation:
Power
terminal
The circuits divided by lines are insulated mutually.
Internal circuit
Input and output module terminal
Input and output module internal circuit
Earth (PE) terminal

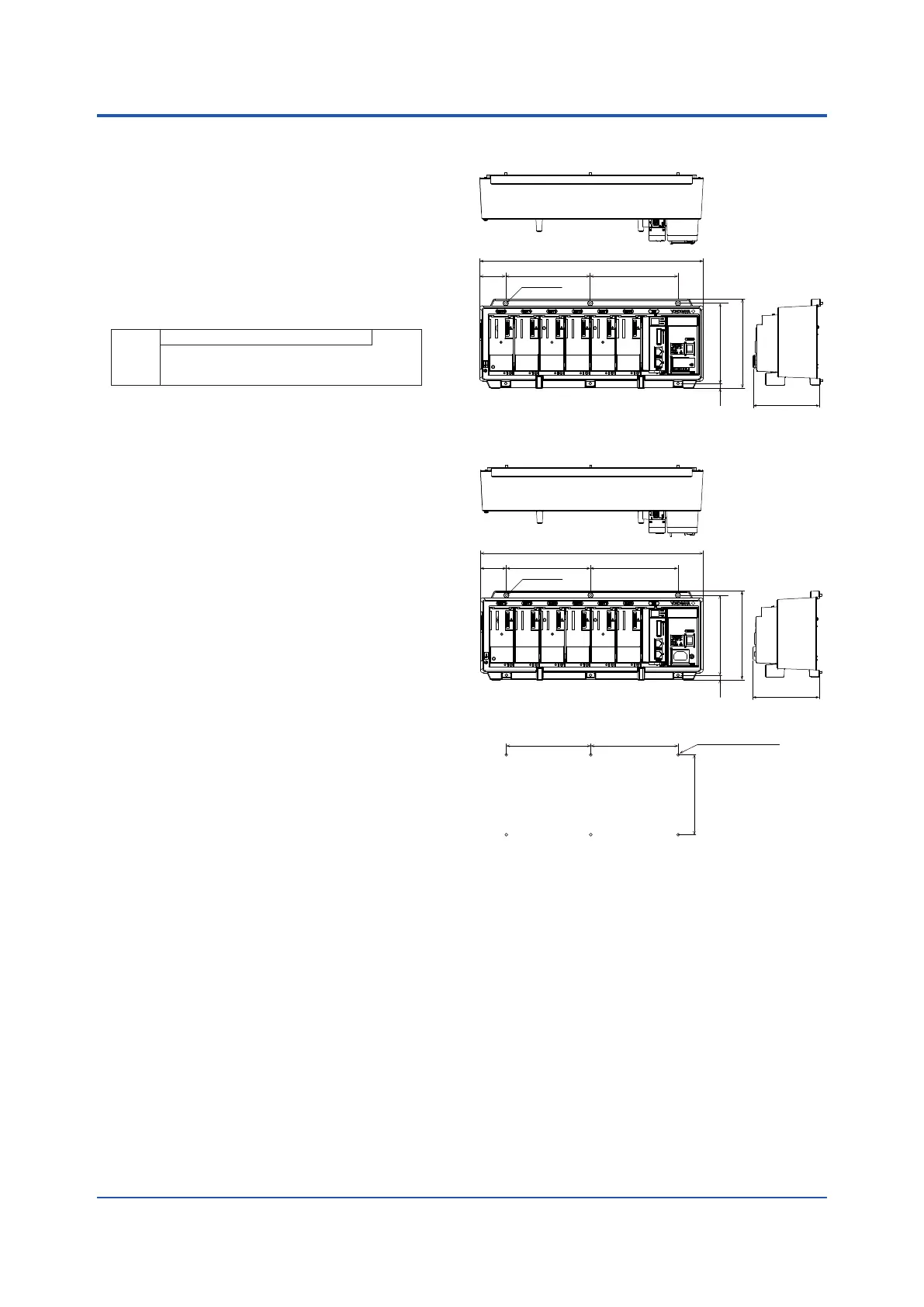

External Dimensions
Powerscrewterminaltype
127.8 (5.03)
148 (5.83)
412.5 (16.2)
162 (6.38)48 156 (6.14)
164.7 (6.48)
6-Φ5 hole
(1.89)
8.7
(0.34)
(6-Φ0.2) hole
Power inlet type
127.8 (5.03)
148±0.4
162±0.2
156±0.2
6-Φ4.5 hole or M4
Unit: mm (approx. inch)
Unless otherwise specified, tolerance is ±3% (however,
tolerance is ±0.3 mm when below 10 mm).
(6.14±0.0078)
(6.38±0.0078)
(5.83±0.0157)
(0.24-Φ0.18) hole or M4
148 (5.83)
412.5 (16.2)
162 (6.38)48 156 (6.14)
8.7
(0.34)
164.7 (6.48)
6-Φ5 hole
Dimensions of fixing hole
(1.89)
(6-Φ0.2) hole
