8-2 IM 760401-01E

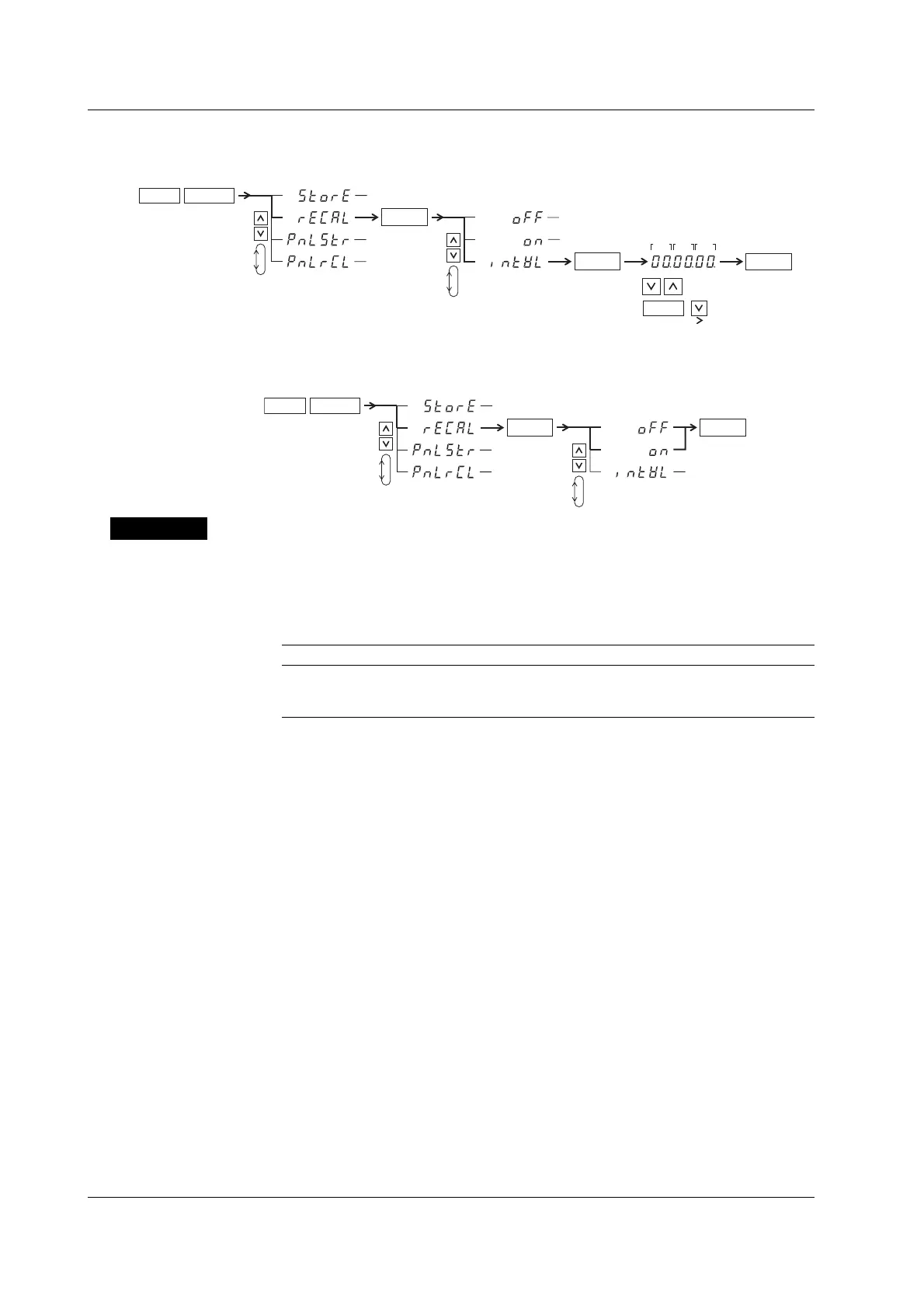

Setting the Recall Interval for Measured/Computed Data
1.
SHIFT
STOP
MEMORY
ENTER
3.
Select the recall function
(Display C)
2.
Set the Interval
(Display C)
hour min
sec
ENTER
8.
End of setting
(Display C)
4.
ENTER
5.
6. Up/down
7. Shift cursor
SHIFT
Recalling Measured/Computed Data ON/OFF
1.
SHIFT
STOP
MEMORY
ENTER
3.
Select the recall function
(Display C)
2.
(Display C)
4.
ENTER
5.
End of setting
Explanation
Storing Measured/Computed Data (Storing into Internal Memory)
One block consists of all data which are obtained when the display is updated once.
The data number increases by the number of used input elements and therefore the
number of blocks that can be stored depends on the model as described above.
The number of blocks which can be stored into the internal memory is as follows.
Model In case of normal measurement In case of harmonic measurement
760401 600 Blocks 30 Blocks
760502 300 Blocks 30 Blocks
760503 200 Blocks 30 Blocks
• Items which can be stored
• When storing normal measured data (harmonic measurement function is turned
OFF)
Each measured/computed/integrated data of normal measurement will be
stored. However, only either the voltage frequency or current frequency will be
stored.*
* If either one of the display function, V Hz or A Hz, is turned on, the frequency of the
corresponding function is stored. If both display functions are OFF, the voltage
frequency of the element assigned to display C is stored.
• When storing harmonic measurement data (harmonic measurement function is
turned ON)
Normal measured data will not be stored. All measured data of the elements
which are being used for the measurement, will be stored.
• Aborting Storage
The store operation stops in the following conditions.
• when all the above described blocks are full;
• when during the storage process “oFF” is selected at the store ON/OFF setting.
8.1 Storing/Recalling Measured/Computed Data
To Next Page
