Connecting the WT230 Power Supply
<<For details, see section 3.5.>>
2.
Check that the power switch on the WT230 (760503, three-phase, four-wire model)
is OFF.
3.
Connect the power cord plug to the power connector on the rear panel of the
WT230. (Use the power cord that came with the package.)
4.
Plug the other end of the power cord into a power outlet.

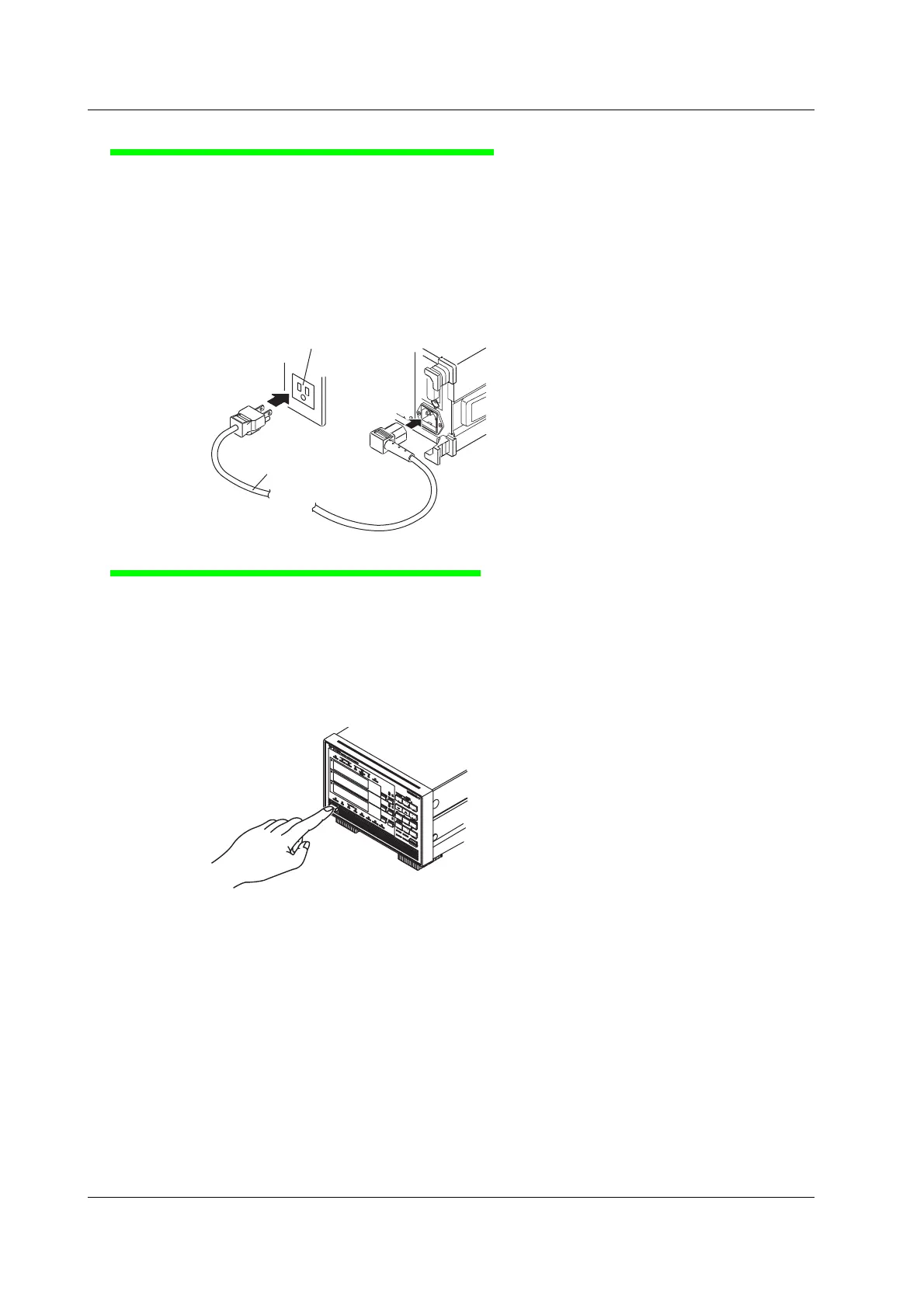

3-pin outlet
Power cord
(included in the package)
WT230
Turning ON the Power to the WT230
<<For details, see section 3.6.>>
5.
Press the power switch at the lower left corner of the front panel.
A test program starts when the power switch is turned ON. After an opening message
appears, the WT230 is ready to make measurements. To suppress the error in the
measured value that occurs as time progresses after power-up, warm up the WT230 for
at least 30 minutes before starting measurements.
