YOKOGAWA YTA110 User Manual

IM 01C50B01-01E
2-4
2. NOTES ON HANDLING
Note 2. Entity Parameters (Electrical/Non-
incendive field wiring parameters)
• [Supply Circuit]
Vmax = 30 V, Imax = 165 mA, Pmax = 0.9 W
Ci = 18 nF, Li = 730 µH
• [Associated apparatus]
Voc 30 V, Isc 165 mA, Pmax 0.9 W
• [Sensor Circuit]
Voc = 9 V, Isc = 40 mA, Po = 90 mW,
Ca = 1 µF, La = 10 mH
Note 3. Installation
• All wiring shall comply with Canadian Electrical
Code Part I and Local Electrical Codes.
• For the sensor circuitry, the above parameters for
sensor circuit must be taken into account.
• Dust-tight conduit seal must be used when installed in
class II and III environments.
• In any used safety barrier, output current must be
limited by a resistor 'R' such that Isc=Voc/R.
• The safety barrier must be CSA certified, and the
input voltage of the barrier must be less than
250Vrms/Vdc.
• For non-incendive type, general purpose equipment
must be CSA certified and the equipment which have
non-incendive field wiring parameters.
• The instrument modification or parts replacement by
other than authorized representative of Yokogawa
Electric Corporation is prohibited and will void
Canadian Standards Intrinsically safe and
nonincendive Certification.

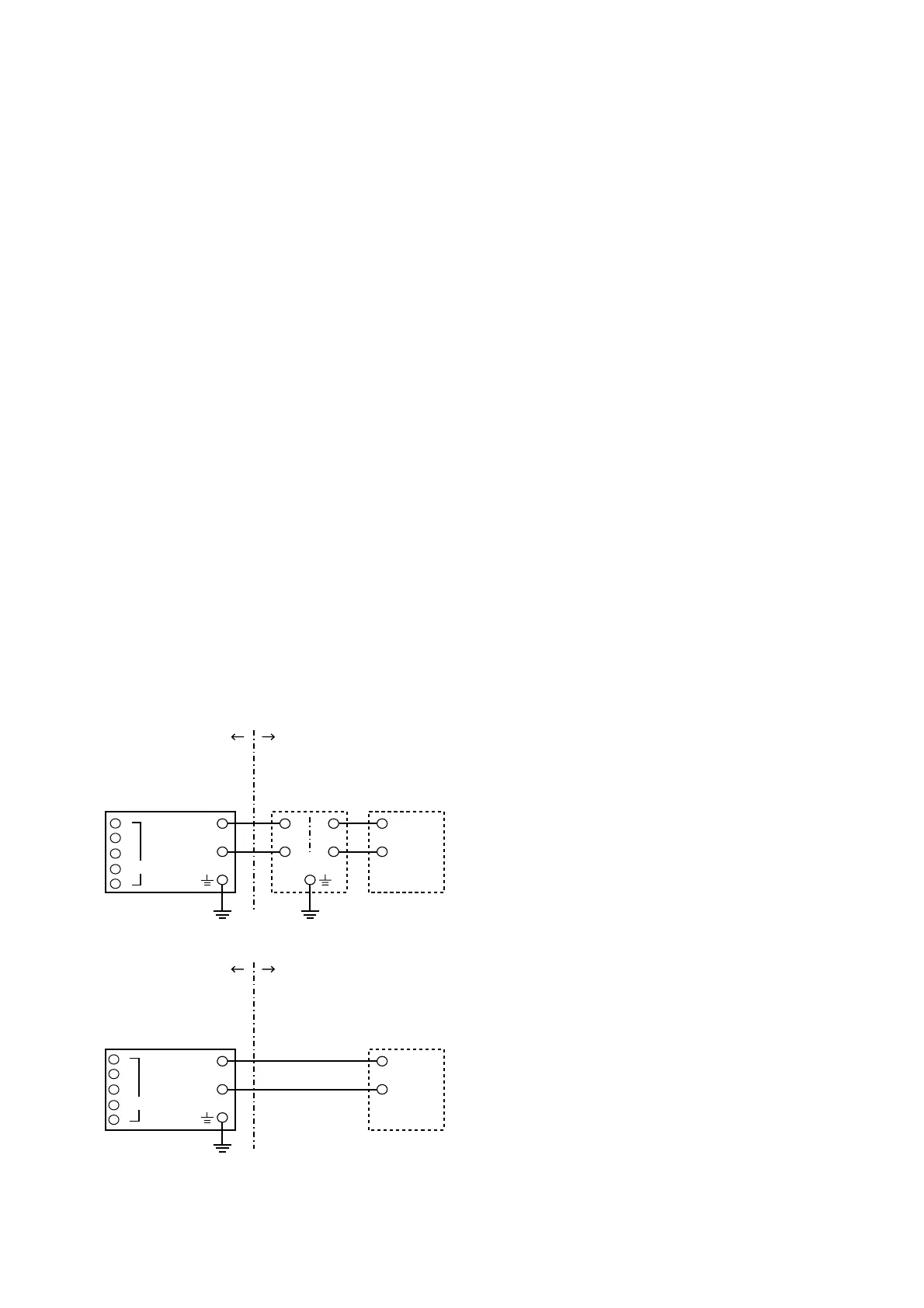

F0204.EPS
Safety Barrier
Supply
Hazardous
Location
Nonhazardous
Location
General
Purpose
Equipment
+
–
+
–
+
–
Supply
+
–
+
–
[Intrinsically Safe]
Hazardous
Location
Nonhazardous
Location
Not Use
Safety Barrier
+
–
[Non-incendive]
General
Purpose
Equipment
Sensor
1
2
3
4
5
Sensor
1
2
3
4
5
YTA Series
Temperature
Transmitter
YTA Series
Temperature
Transmitter
b) CSA Explosionproof Type
Caution for CSA Explosionproof type
Note 1. Model YTA110/CU1, YTA310/CU1 and
YTA320/CU1 temperature transmitters
are applicable for use in hazardous
locations:
• Explosionproof for Class I, Division 1, Groups B,
C and D.
• Dust-ignitionproof for Class II, Groups E, F and G,
Class III.
• Encl “Type 4X”
• Temperature Class: T6
• Ambient Temperature: –40 to 60°C
• Supply Voltage: 42 V dc max.
• Output Signal: 4 to 20 mA
Note 2. Wiring
• All wiring shall comply with Canadian Electrical
Code Part I and Local Electrical Codes.
• In hazardous location, wiring shall be in conduit as
shown in the figure.
WARNING: A SEAL SHALL BE INSTALLED
WITHIN 50 cm OF THE ENCLO-
SURE. UN SCELLEMENT DOIT
ÊTRE INSTALLÉ À MOINS DE
50 cm DU BOÎTIER.
• When installed in Division 2, “FACTORY
SEALED, CONDUIT SEAL NOT REQUIRED”.
Note 3. Operation
• Keep strictly the “WARNING” on the label
attached on the transmitter.
WARNING: OPEN CIRCUIT BEFORE RE-
MOVING COVER. OUVRIR LE
CIRCUIT AVANT D´ENLEVER LE
COUVERCLE.
• Take care not to generate mechanical spark when
access to the instrument and peripheral devices in
hazardous location.
Note 4. Maintenance and Repair
• The instrument modification or parts replacement
by other than authorized representative of
Yokogawa Electric Corporation is prohibited and
will void Canadian Standards Explosionproof
Certification.
