YOKOGAWA YTA110 User Manual

IM 01C50B01-01E
5-5
5. WIRING
䊏 Flameproof metal conduit wiring
•A seal fitting must be installed near the terminal
box connection port for a sealed construction.
• Apply a nonhardening sealant to the threads of the
terminal box connection port, flexible metal conduit
and seal fitting for waterproofing.
F0513.EPS
Non-hazardous
area
Hazardous
area
Flameproof
heavy-gauge
steel conduit
Tee
Drain plug
Gas sealing
device
Flameproof flexible
metal conduit
Apply a nonhardening
sealant to the threads of
these fittings for
waterproofing
Seal fitting
After wiring, impregnate the fitting
with a compound to seal tubing.

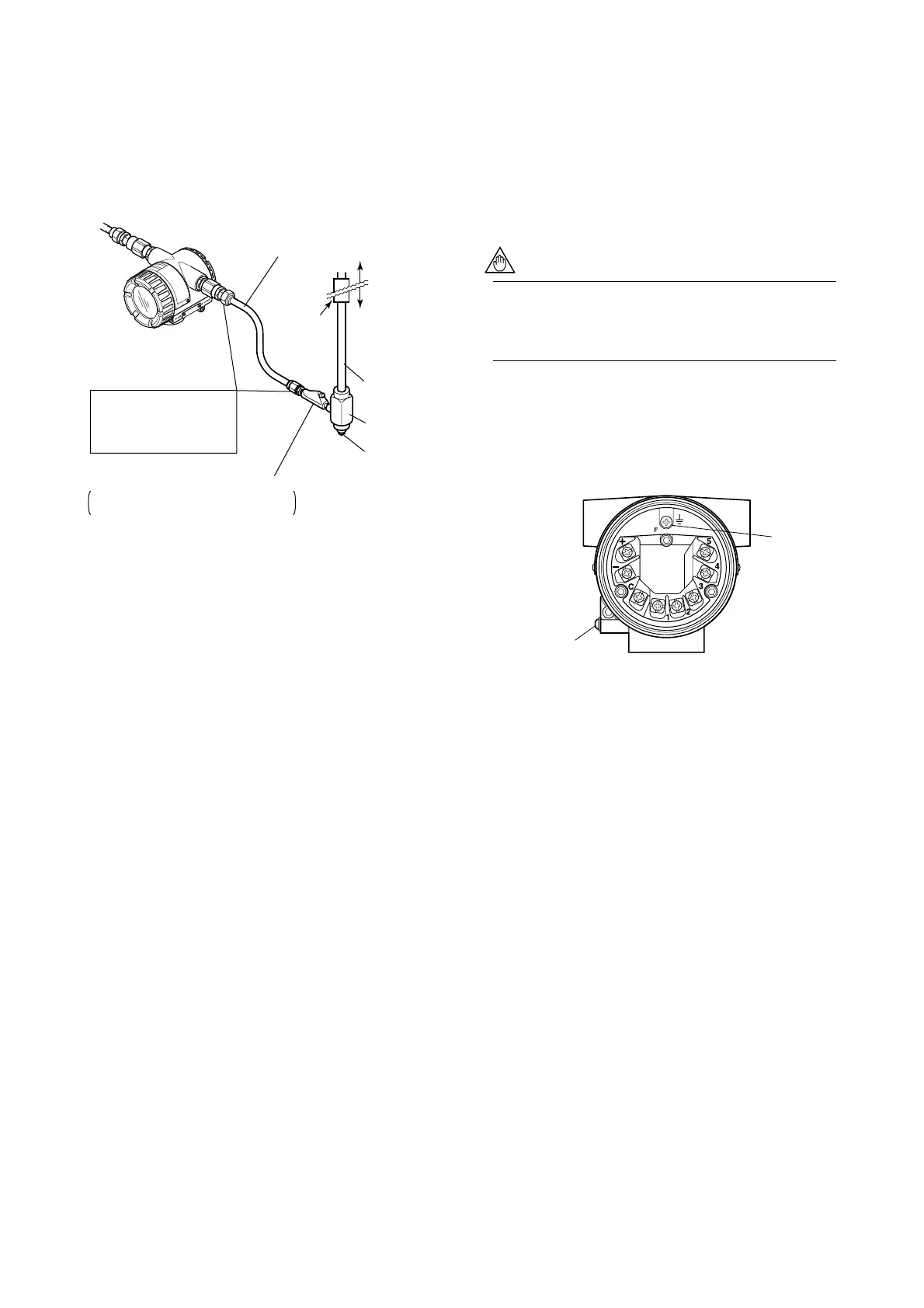

Figure 5.13 Typical Wiring Using Flameproof Metal
Conduit
5.6 Grounding
Grounding should satisfy JIS Class D requirements
(with ground resistance of 100⍀ or less). Grounding
work is required for withstand voltage explosionproof
type units and intrinsic safe explosionproof type
transmitters.
NOTE
For a transmitter with built-in arrester, grounding
should satisfy JIS Class C requirements (with
ground resistance of 10⍀ or less).
Grounding terminals are located both inside and
outside the terminal board.
Use 600V vinyl insulation wires for the grounding
conductor.
F0511.EPS
Grounding
terminal
Grounding
terminal
Figure 5.14 Grounding Terminal
