The LCD Display
Groups screen

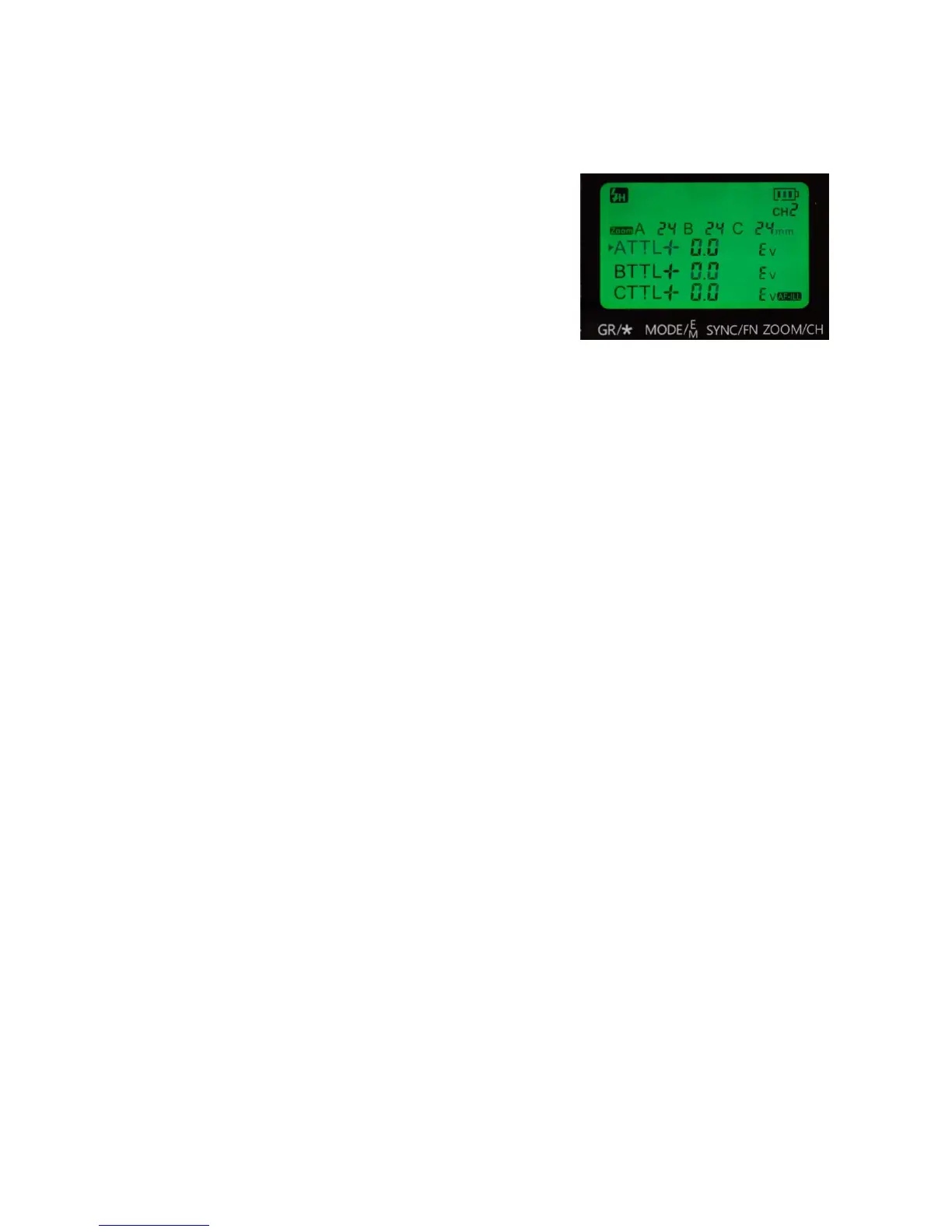

• The default Groups screen is shown in the image.
• The last-used screen appears at power-on.
• Various operations terminate and return to Groups
by Timeout,
by pressing [Set/OK],
by cycling through from a selection operation.
• Pressing any button will light the backlight briefly. Use
[Set/OK] to avoid accidentally changing a setting.
• Most procedures assume starting from Groups.
• There are six lines.
Line 1: Current sync mode, and battery level,
Line 2: Operation labels and icons, and current channel.
Line 3: Zoom setting for each group.
Lines 4 - 6: Group flash mode and user adjustment.
Line 6 will also show on the right the AF-beam icon, if it is enabled.
• Lines 4 to 6 are interactive rows. The active row is selected with [Gr], and is indicated by
the triangle on the left of that row.
• Other icons may appear in the top or right areas.
Indicators
Status Indicator (LED)
• In stand-by, the Status light is off.
• When communicating it is green.
• It turns red briefly when the shutter is released.
Battery charge Indicator
• The three bars (top right icon) will show when fully charged.
• As the stored voltage drops, the bars will disappear, starting from the right.
• When the icon winks, the battery is exhausted and must be replaced,
Access and Visibility
In a studio situation, and especially when the camera is on a tripod, a good-quality full Canon
E-TTL cord can be used to move the C-TX off-camera to a more accessible position.
